Ignition Control System
IGNITION CONTROL SYSTEMCAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE

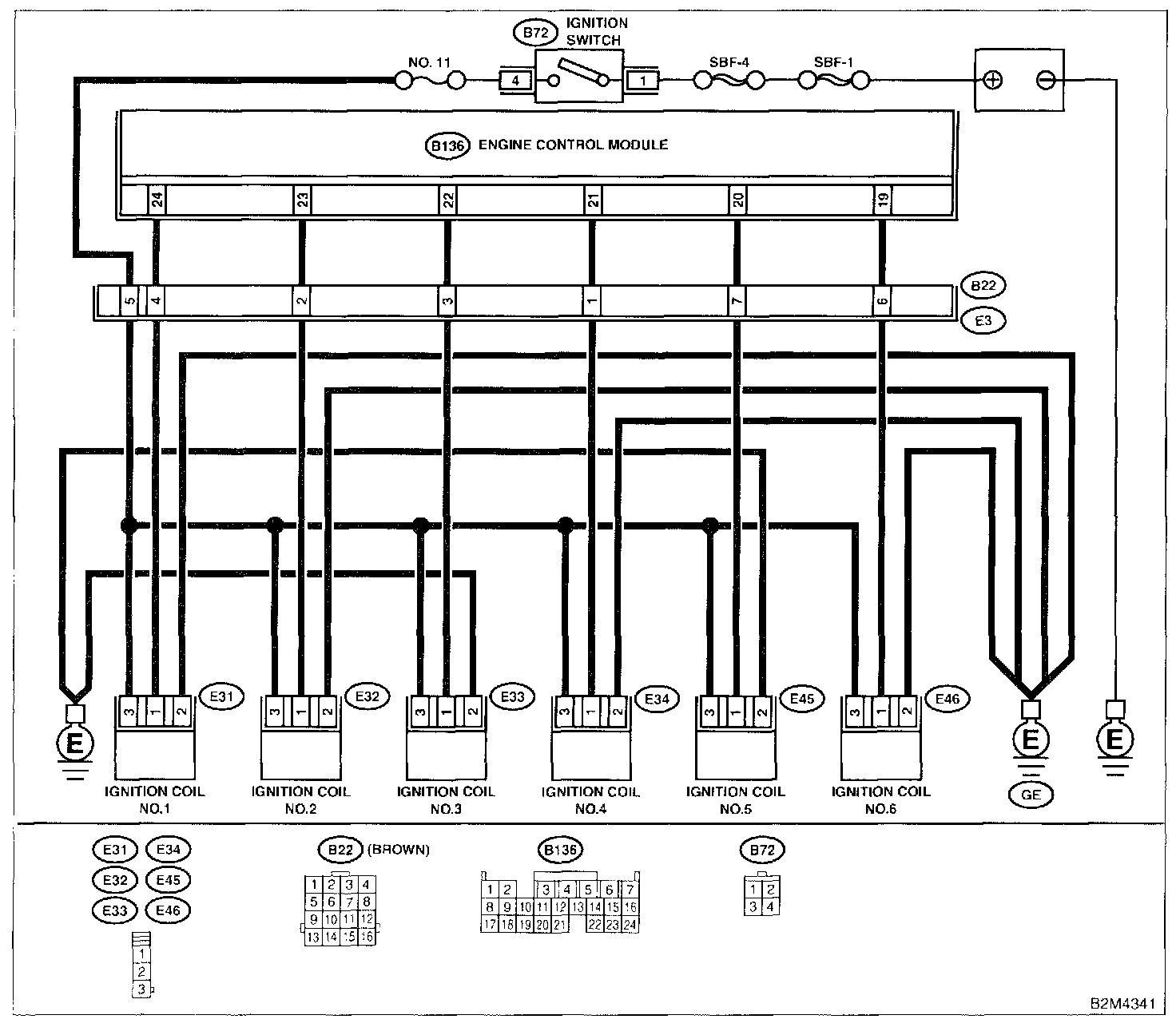

Wiring Diagram:

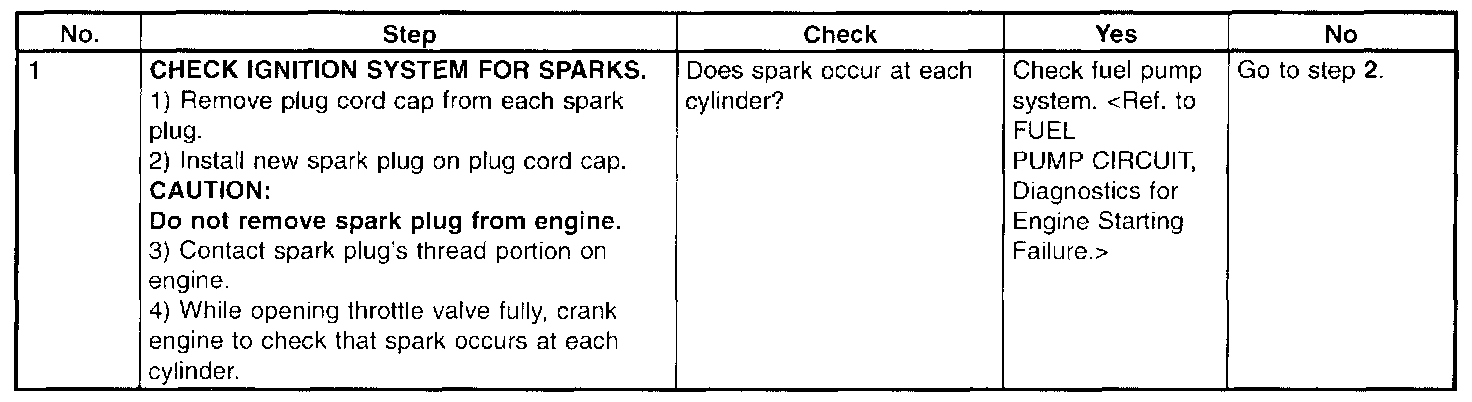

Step 1:

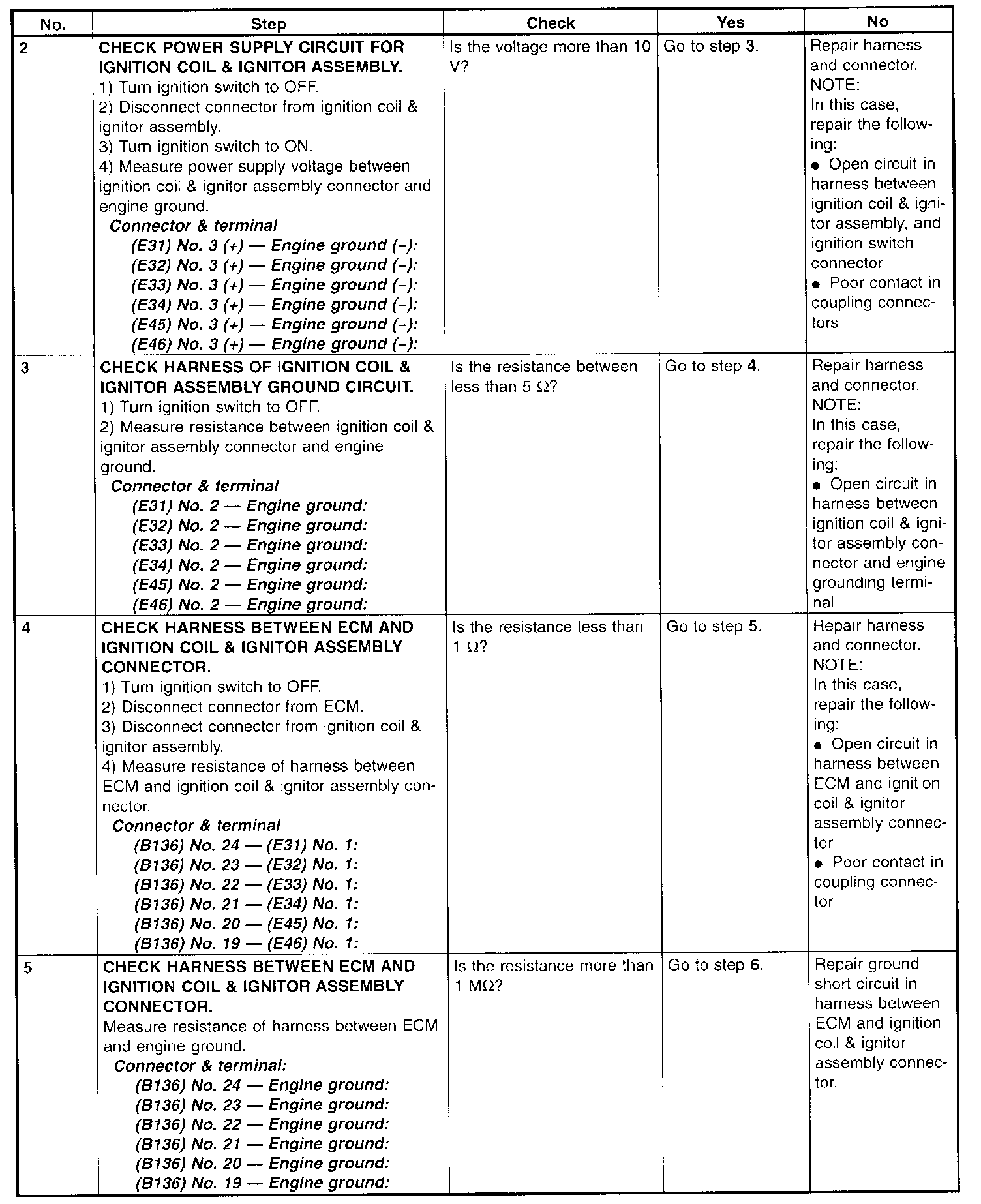

Step 2 - 5:

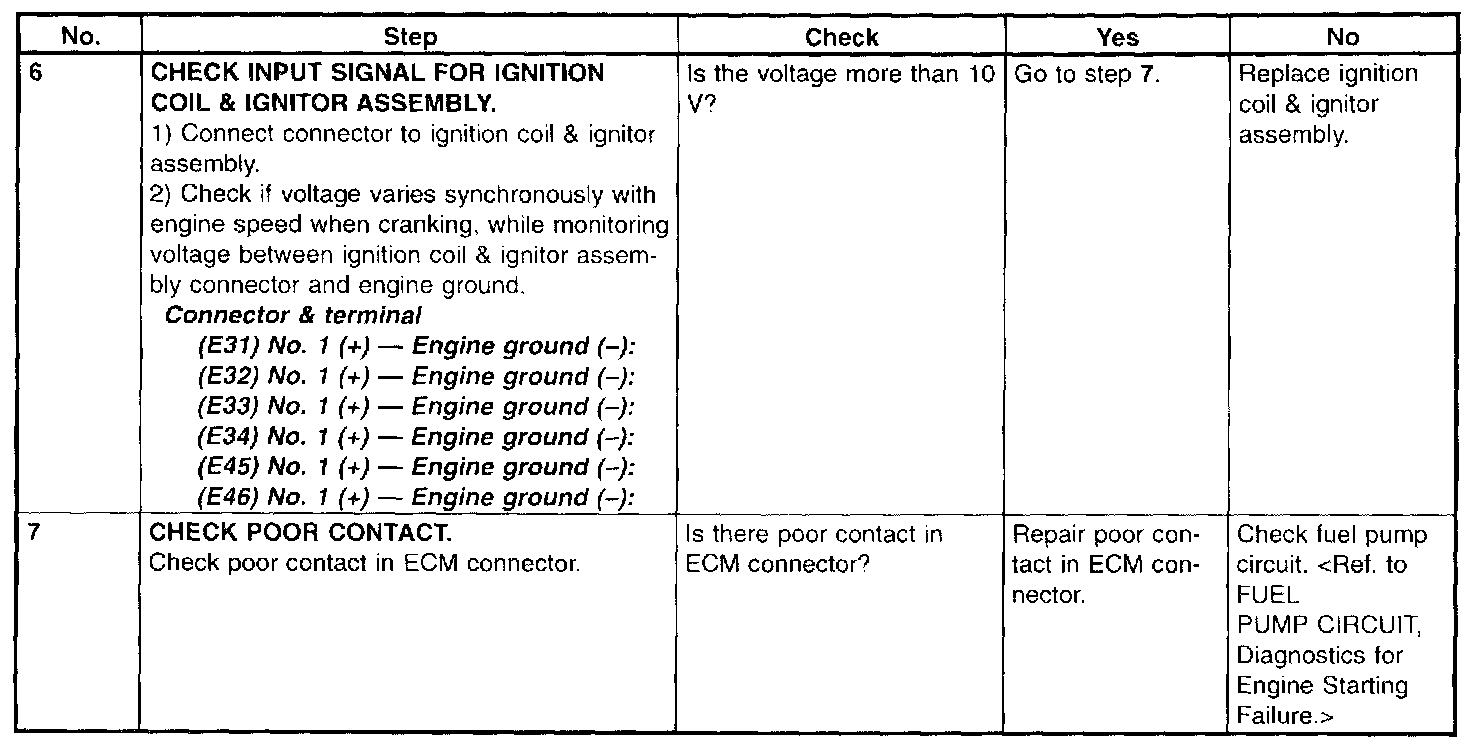

Step 6 - 7:
WIRING DIAGRAM
CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE
WIRING DIAGRAM
