Fuel Injector Circuit

FUEL INJECTOR CIRCUIT

CAUTION:
- Check or repair only faulty parts.
- After repair or replacement of faulty parts, conduct CLEAR MEMORY MODE.

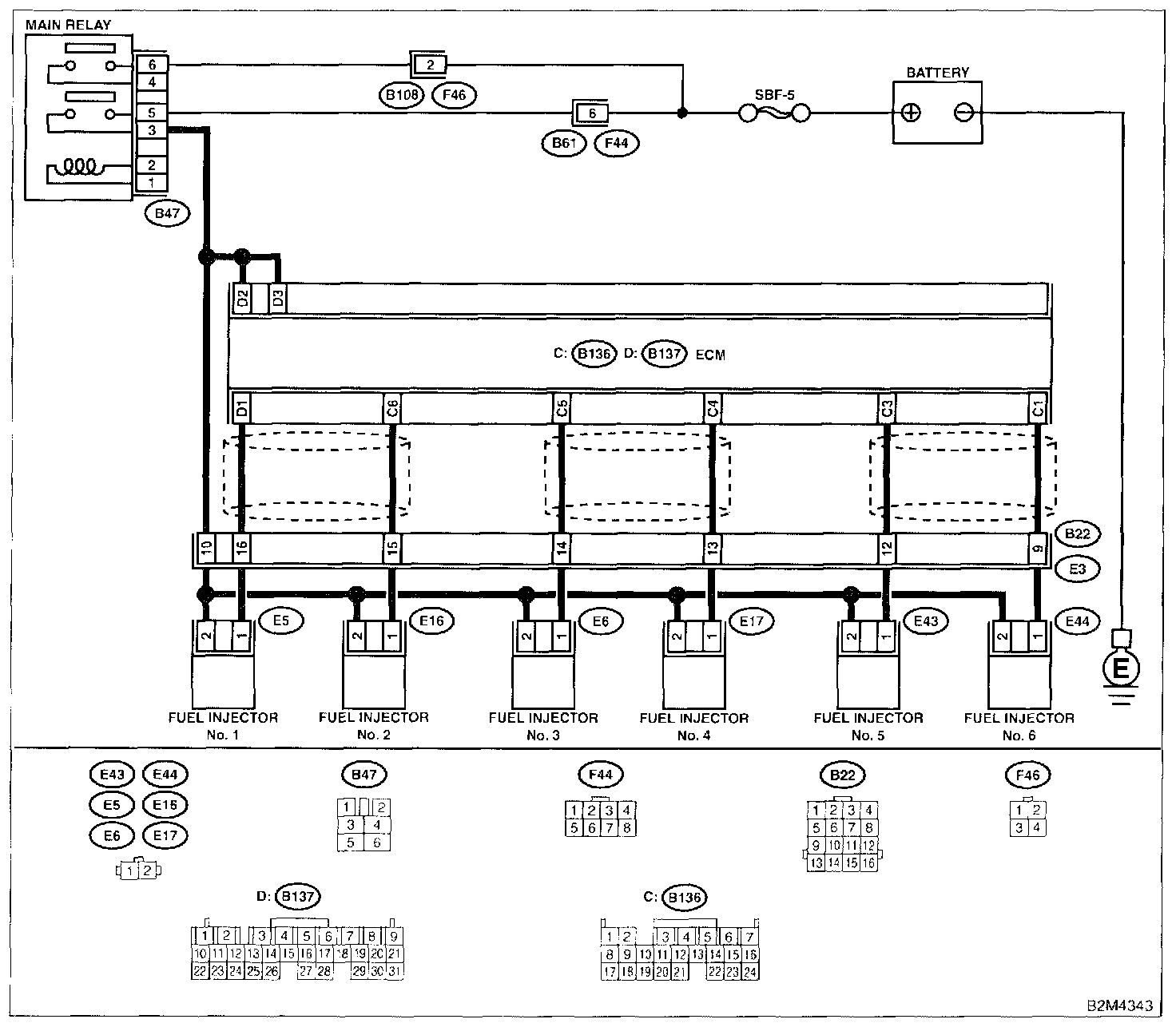

Wiring Diagram:

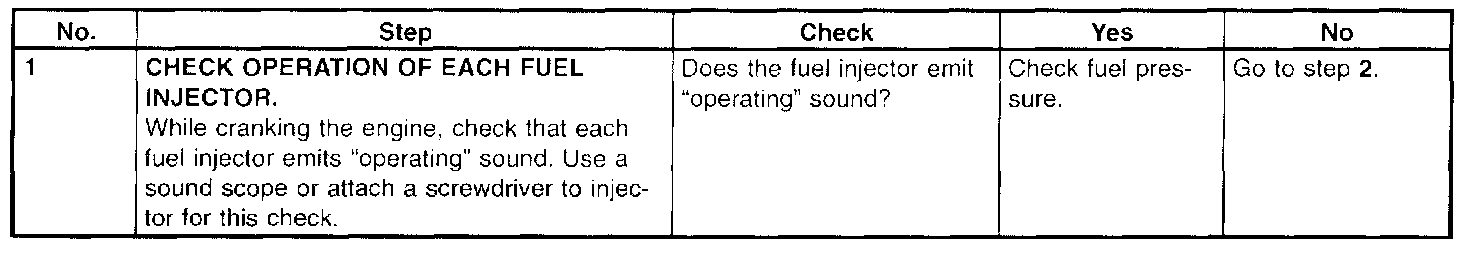

Step 1:

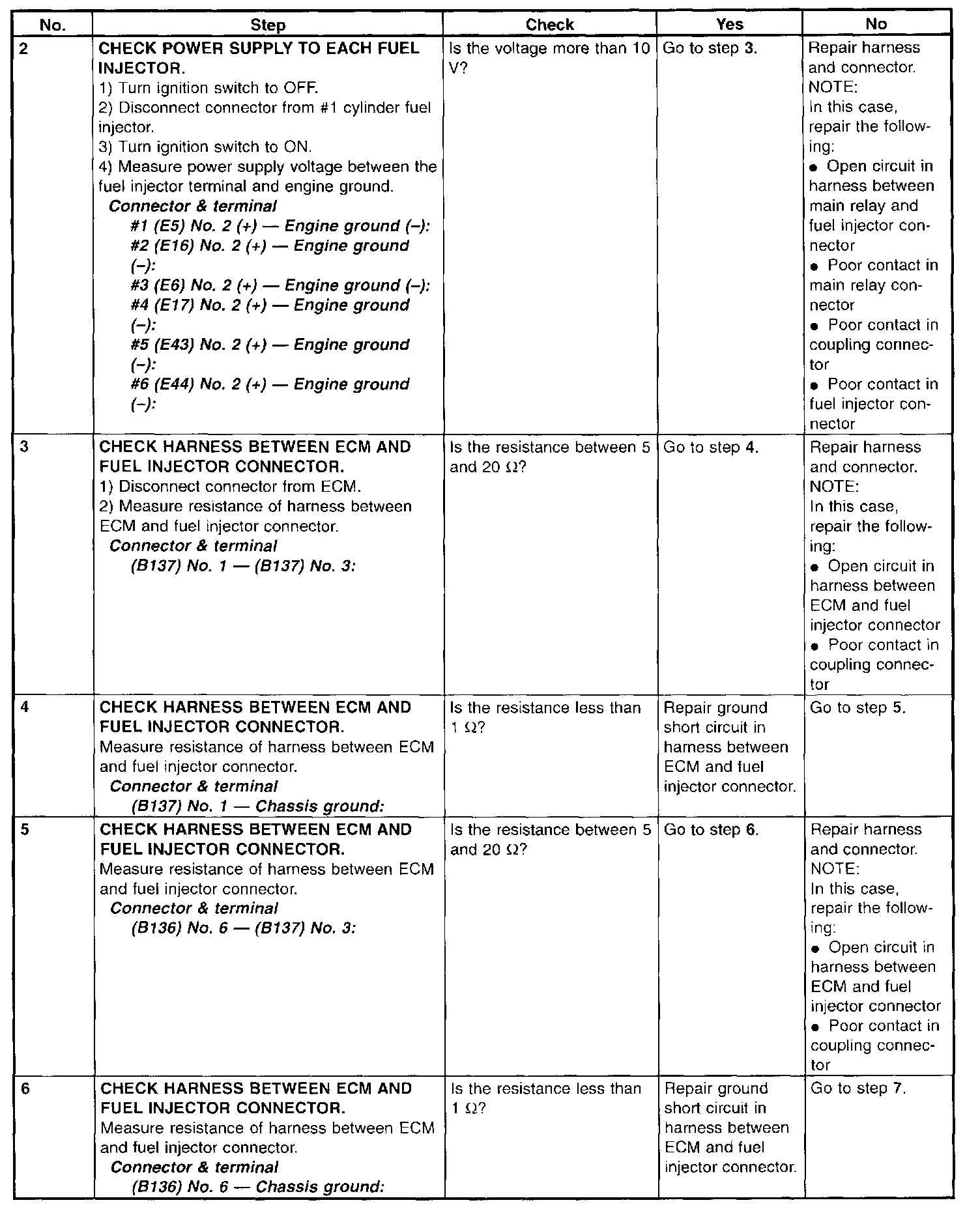

Step 2 - 6:

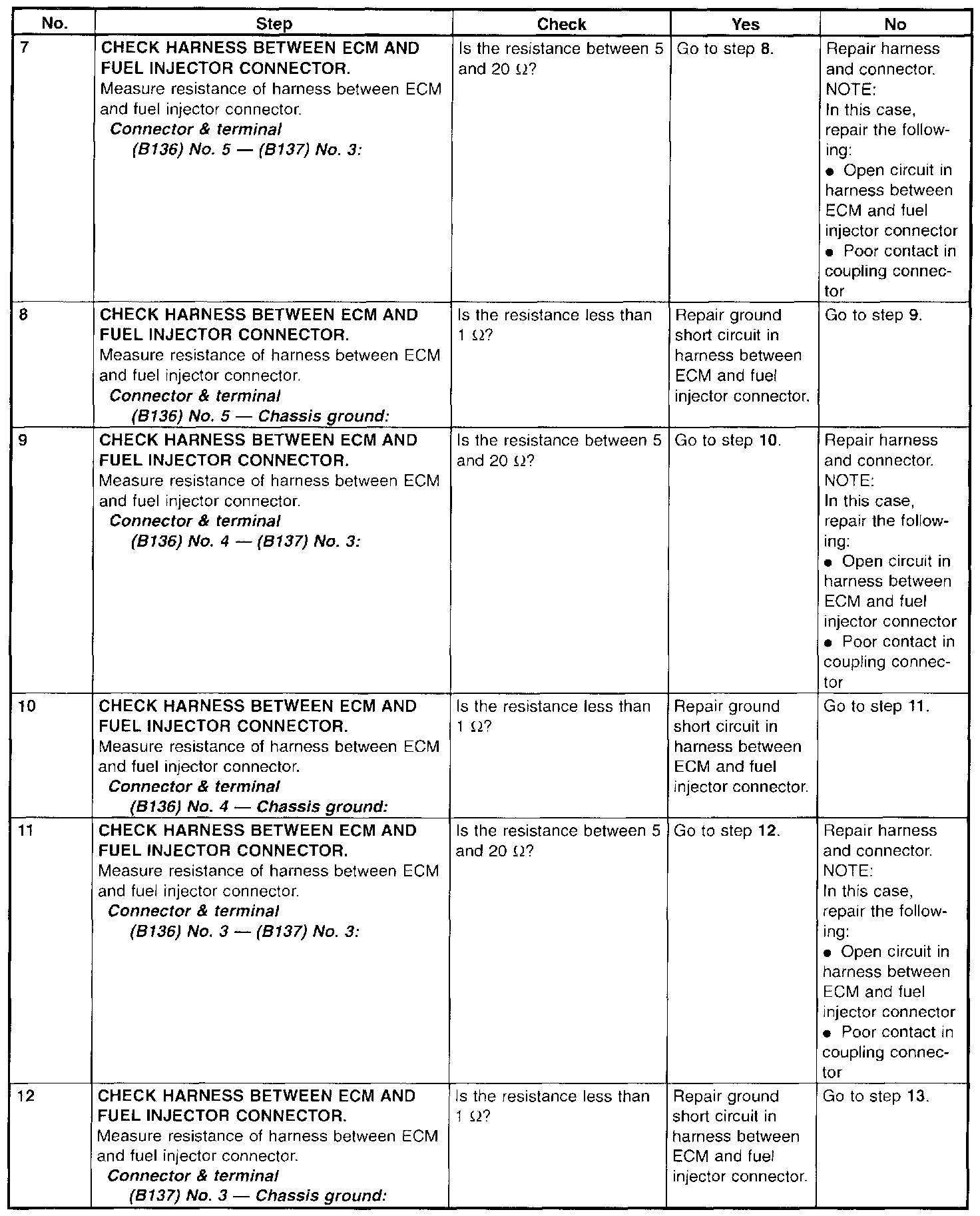

Step 7 - 12:

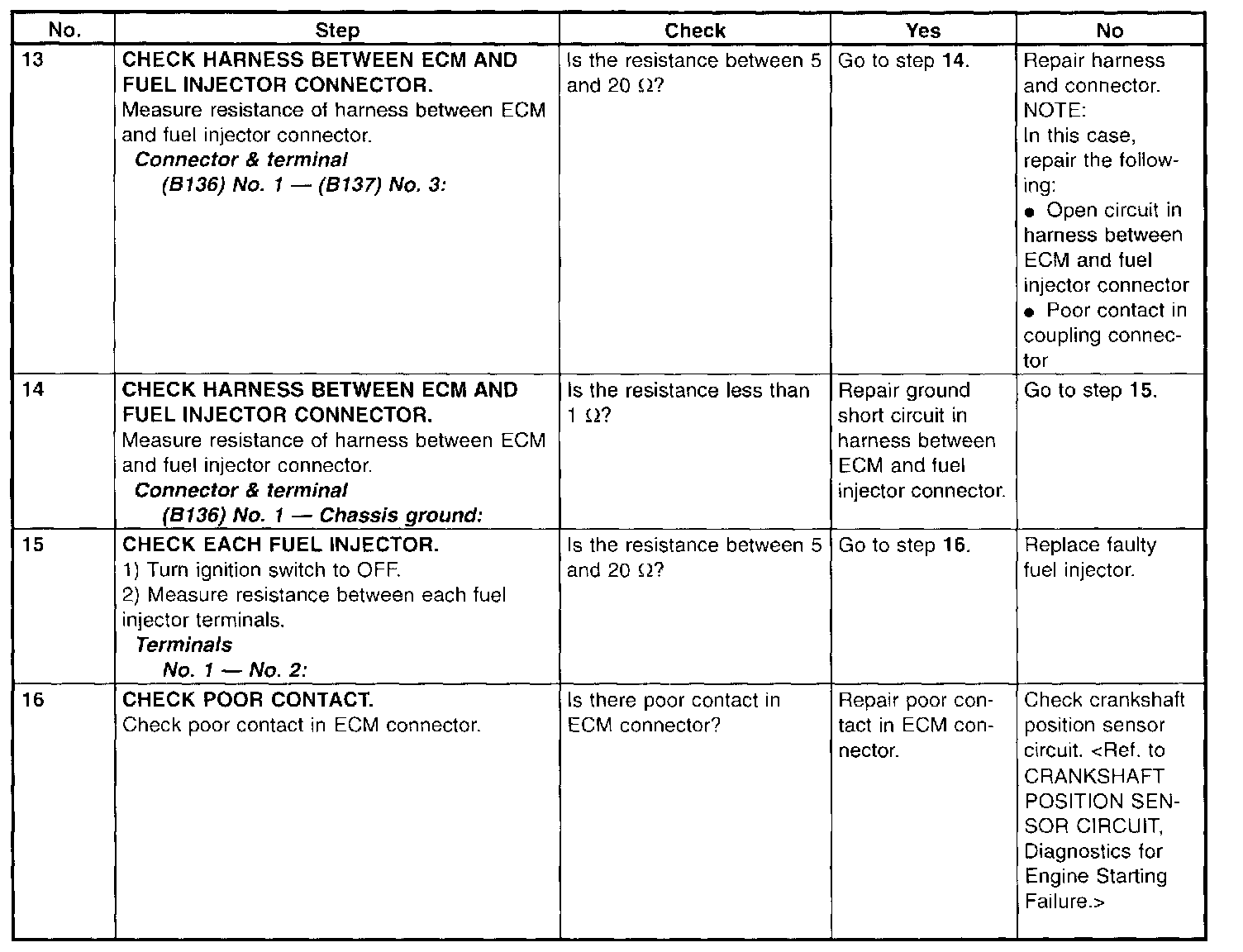

Step 13 - 16:

WIRING DIAGRAM
