Freeze Frame Data For Engine (OBD Mode)

READ FREEZE FRAME DATA FOR ENGINE. (OBD MODE)

1. On the [[Main Menu]] display screen, select the {Each System Check} and press the [YES] key.
2. On the [[System Selection Menu]] display screen, select the {Engine Control System} and press the [YES] key.
3. Press the [YES] key after displayed the information of engine type.
4. On the [[Engine Diagnosis]] display screen, select the {OBD System} and press the [YES] key.




5. On the [[OBD Menu]] display screen, select the {Freeze Frame Data} and press the [YES] key.

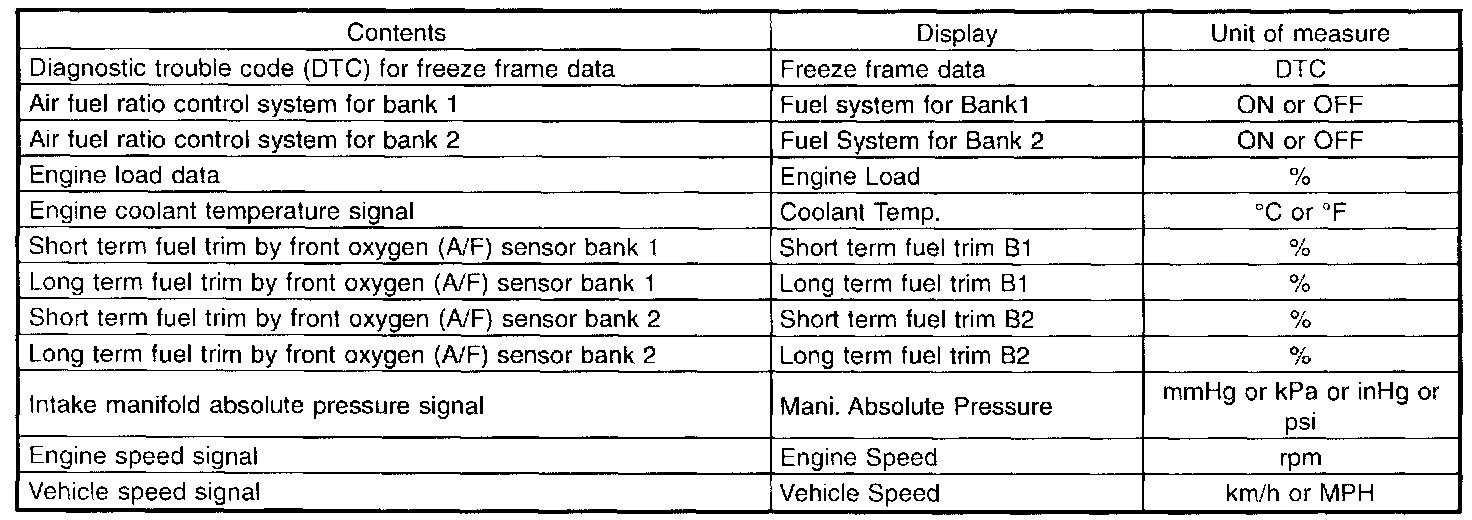

- A list of the support data is shown in the table.

NOTE: For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
