Current Data For Engine (OBD Mode)

READ CURRENT DATA FOR ENGINE. (OBD MODE)

1. On the [Main Menu> display screen, select the {Each System Check} and press the [YES] key.
2. On the display screen, select the {Engine Control System} and press the [YES] key.
3. Press the [YES] key after displayed the information of engine type.
4. On the display screen, select the {OBD System} and press the [YES] key.
5. On the display screen, select the {Current Data Display & Save} and press the [YES] key.
6. On the display screen, select the {Data Display} and press the [YES] key.
7. Using the scroll key, move the display screen up or down until the desired data is shown.

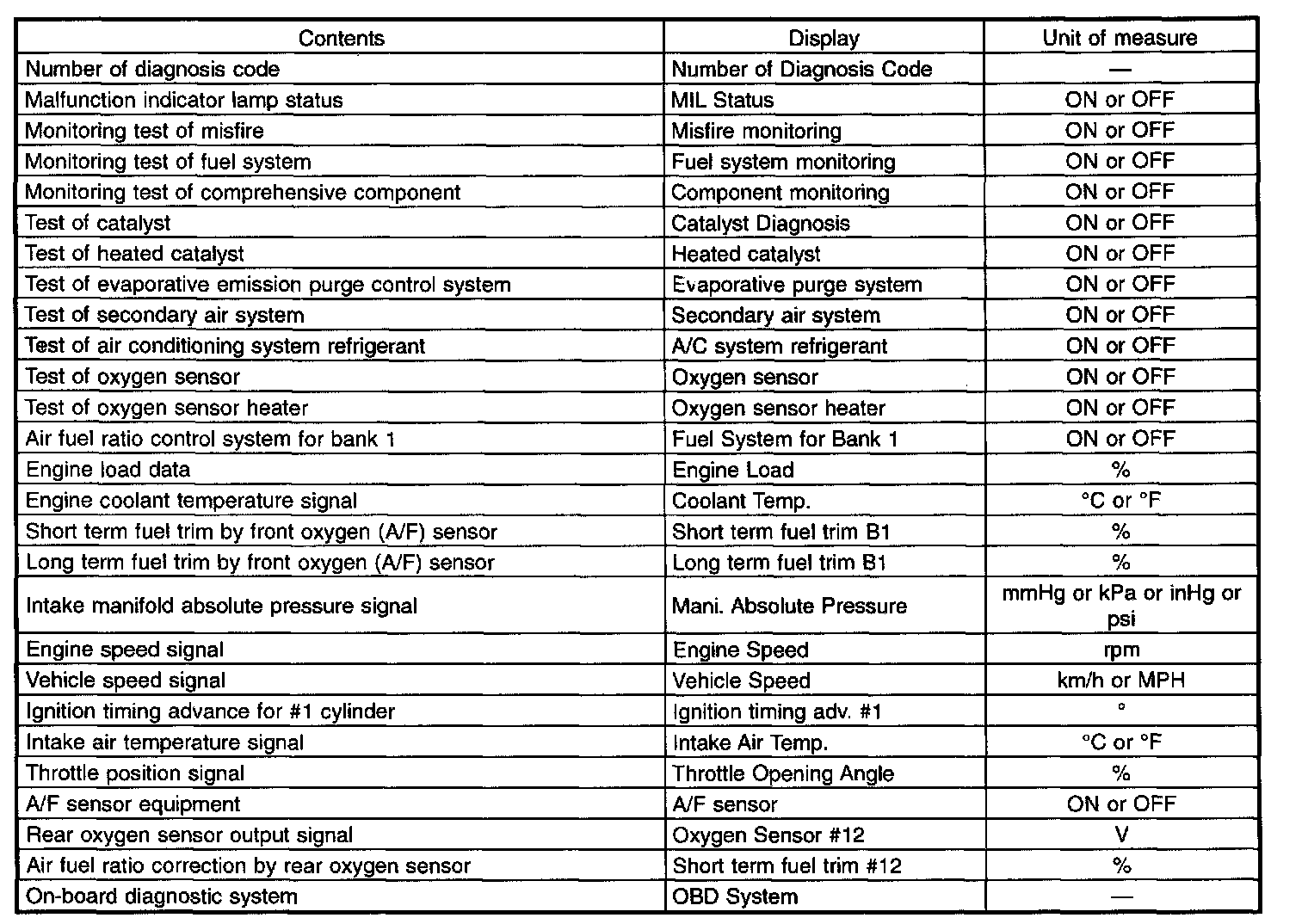

- A list of the support data is shown in the following table.

NOTE: For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
