Current Data For Engine (Normal Mode)

READ CURRENT DATA FOR ENGINE. (NORMAL MODE)

1. On the [[Main Menu]] display screen, select the {Each System Check} and press the [YES] key.
2. On the [[System Selection Menu]] display screen, select the {Engine Control System} and press the [YES] key.
3. Press the [YES] key after displayed the information of engine type.
4. On the [[Engine Diagnosis]] display screen, select the {Current Data Display & Save} and press the [YES] key.
5. On the [[Data Display Menu]] display screen select the {Data Display} and press the [YES] key.

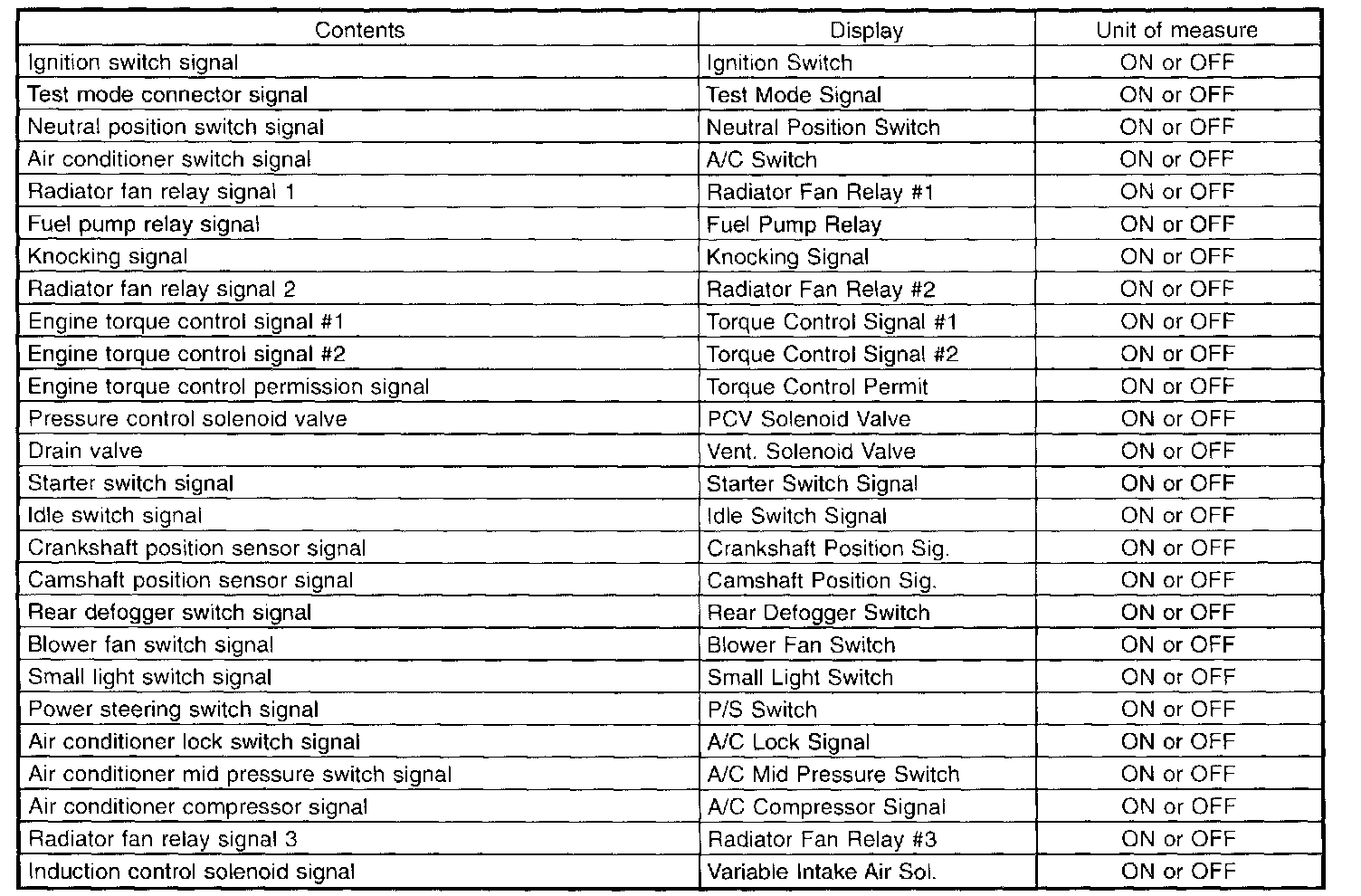

Part 1:

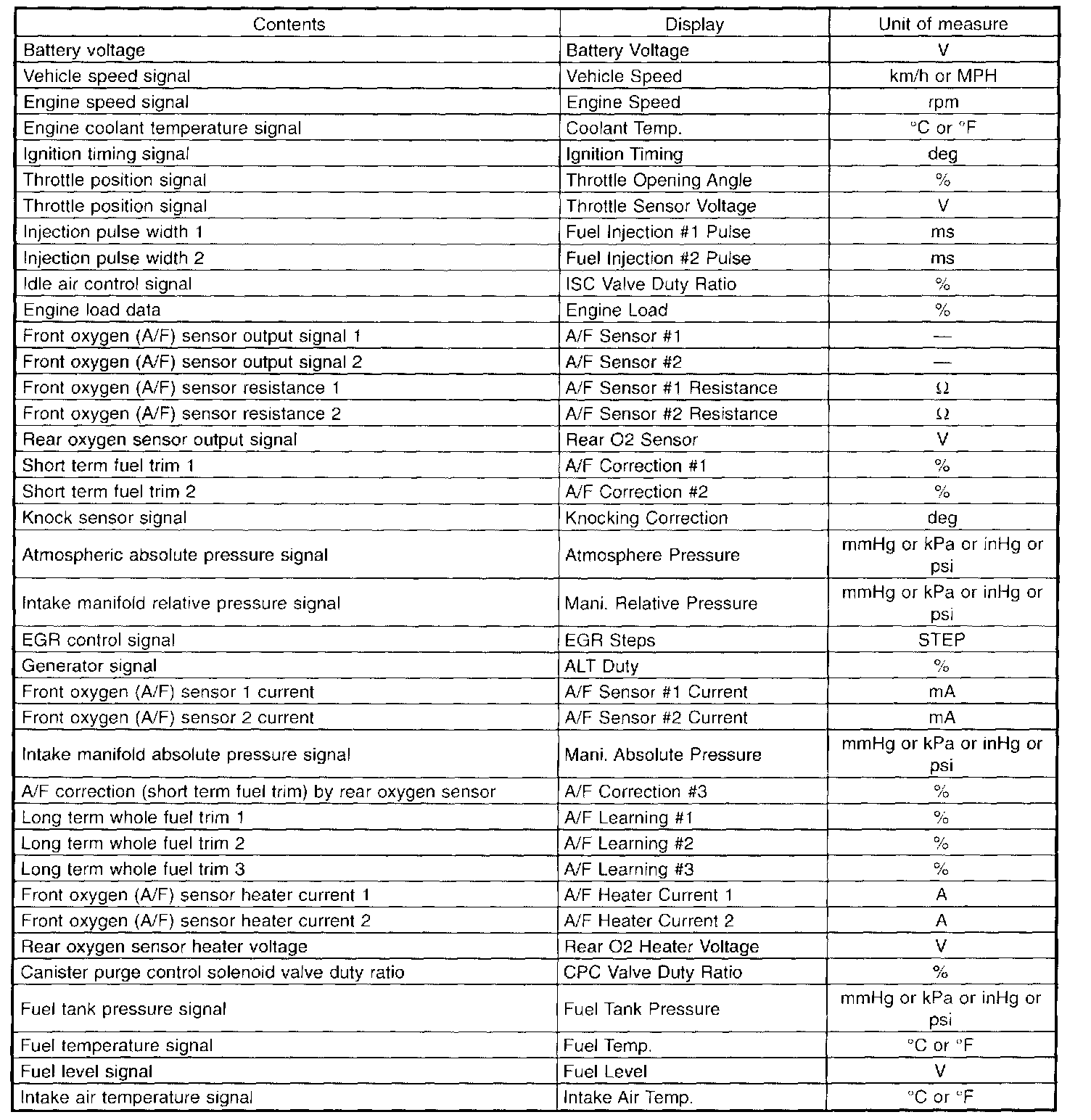

Part 2:

6. Using the scroll key, move the display screen up or down until the desired data is shown.
- A list of the support data is shown in the table.

NOTE: For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.
