(Mode $02) Powertrain Freeze Frame Data

MODE $02 (POWERTRAIN FREEZE FRAME DATA)

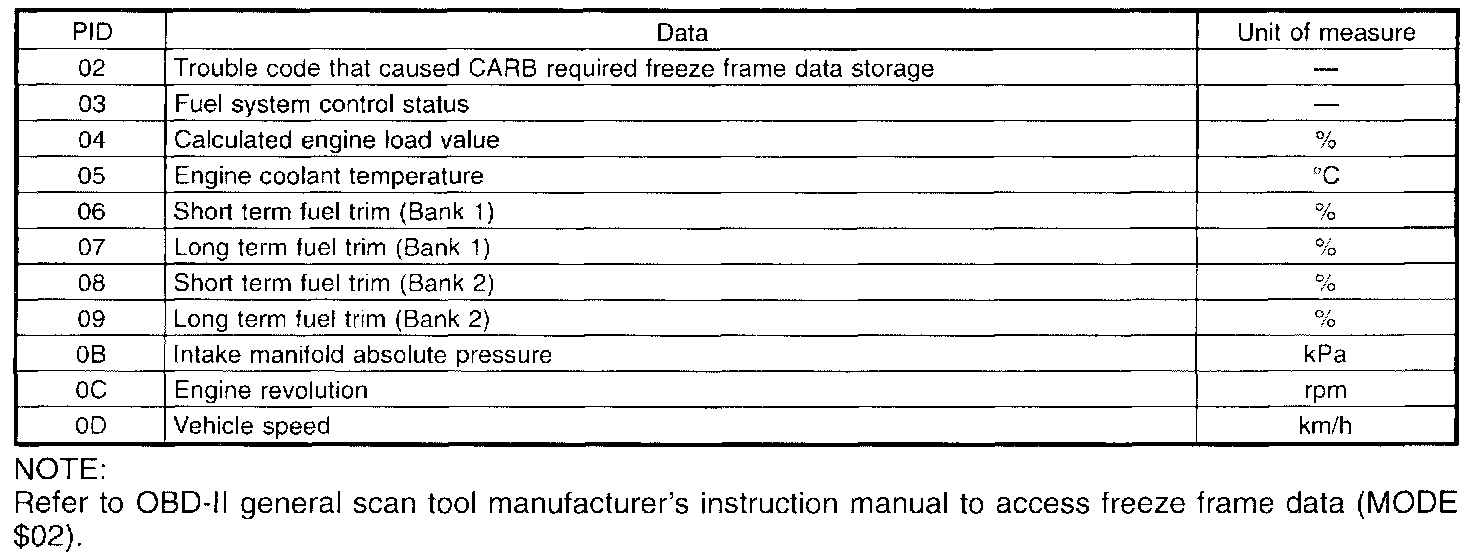

Refers to data denoting the operating condition when trouble is sensed by the on-board diagnosis system. A list of the support data and PID (Parameter Identification) codes are shown in the table.
