(Mode $01) Current Powertrain Diagnostic Data

MODE $01 (CURRENT POWERTRAIN DIAGNOSTIC DATA)




Refers to data denoting the current operating condition of analog input/output, digital input/output and/or the powertrain system.

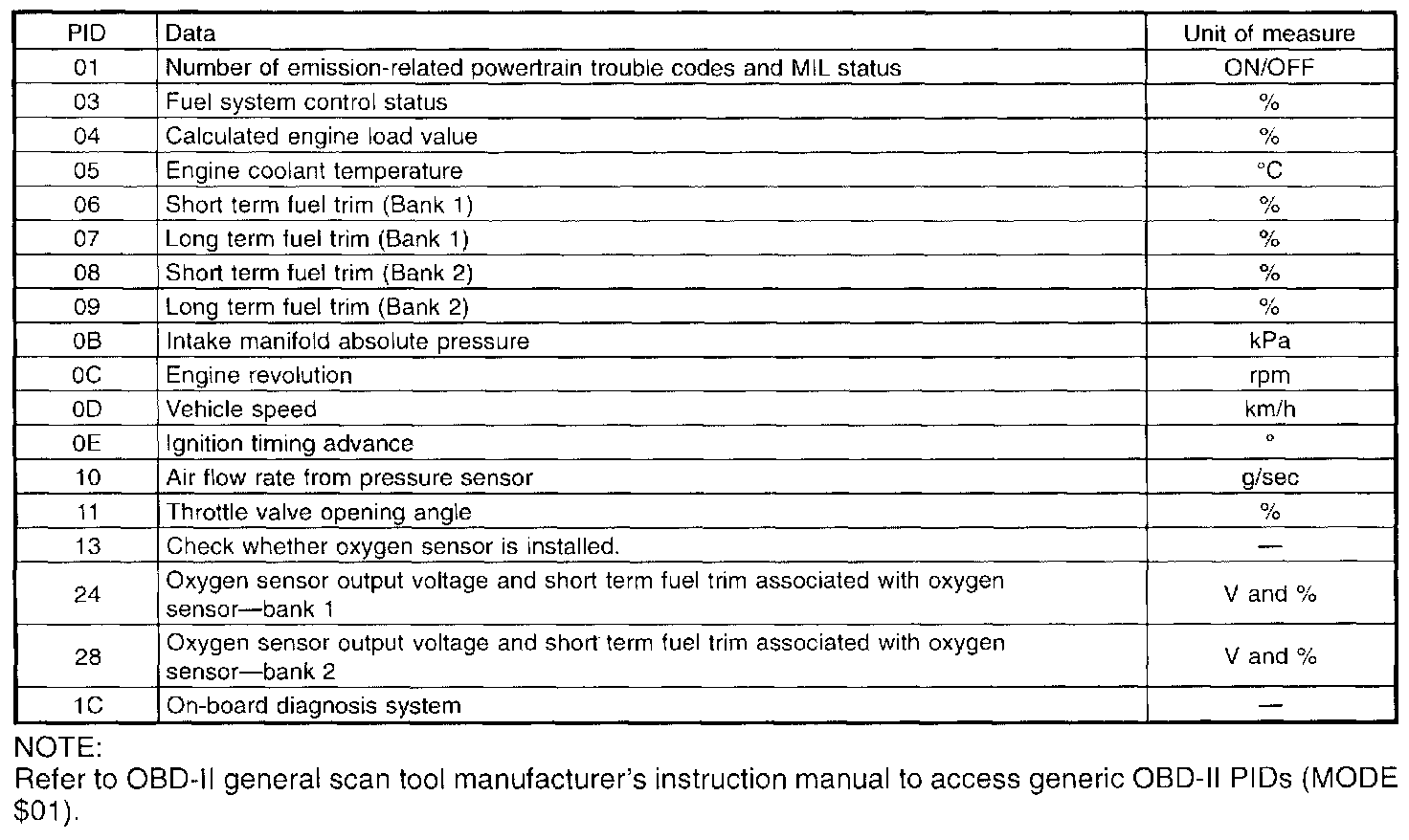

A list of the support data and PID (Parameter Identification) codes are shown in the table.
