Multiple Junction Connector: Service and Repair

INSTALLATION

Tightening torque: T: 4.4 N.m (0.45 kgf-m, 3.3 ft-lb)


NOTE:
- Align the cutout portion of one connector with that of other before tightening the connecting bolt.
- Do not tighten the bolt excessively since this may deform the connectors.

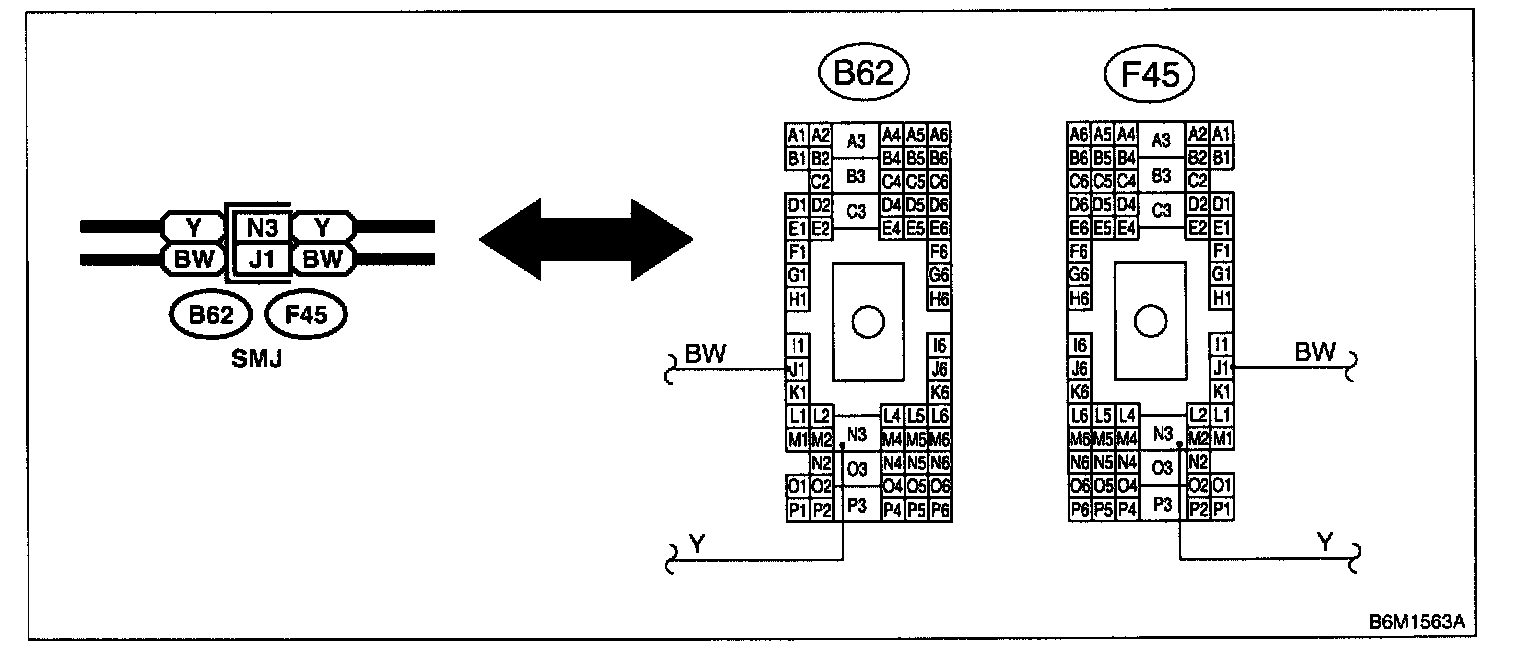

EXPLANATION OF SMJ SHOWN IN THE WIRING DIAGRAM
