Power Supply Routing

P-SUP-01 - Power Supply Routing:

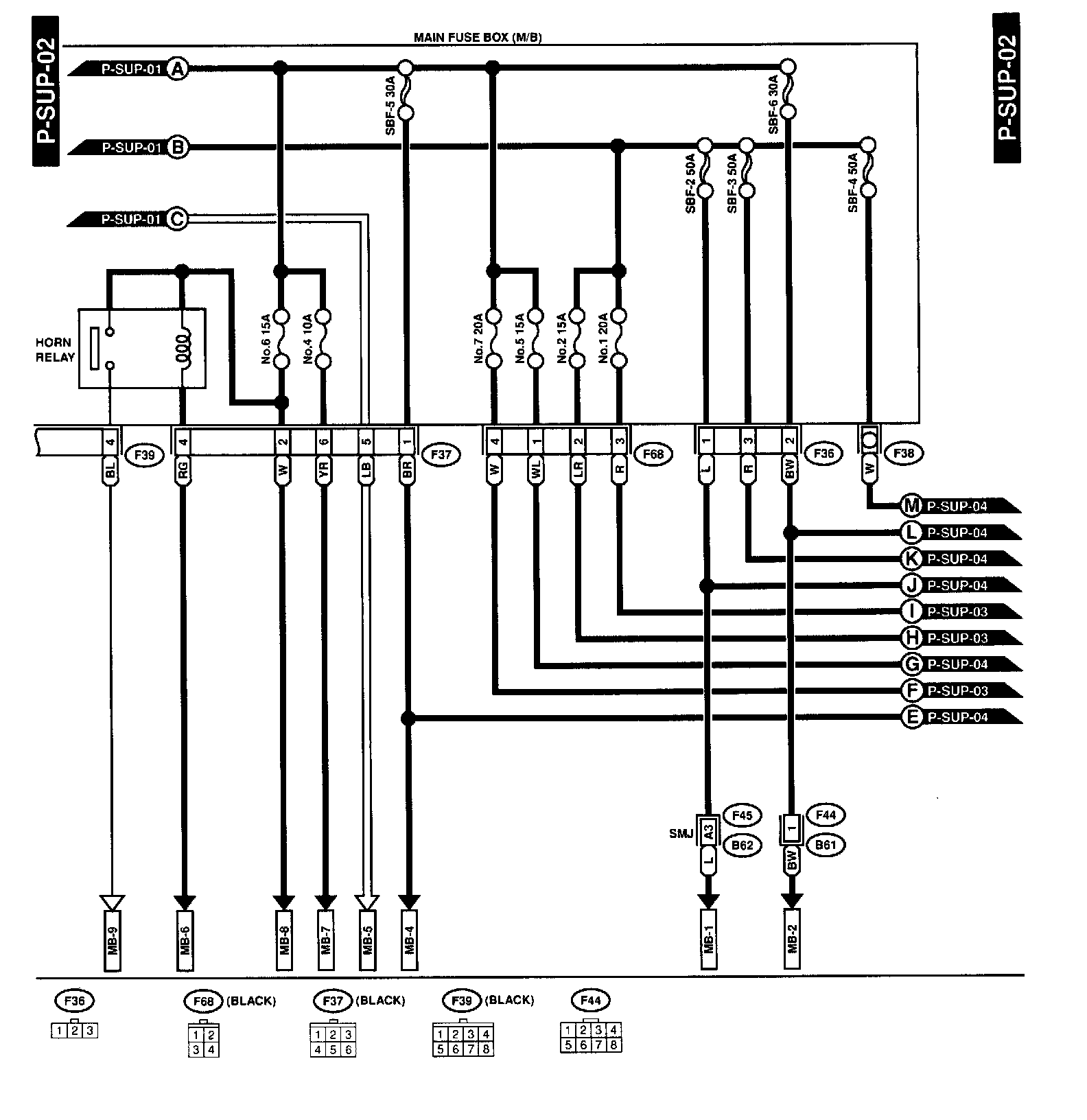

P-SUP-02 - Power Supply Routing:

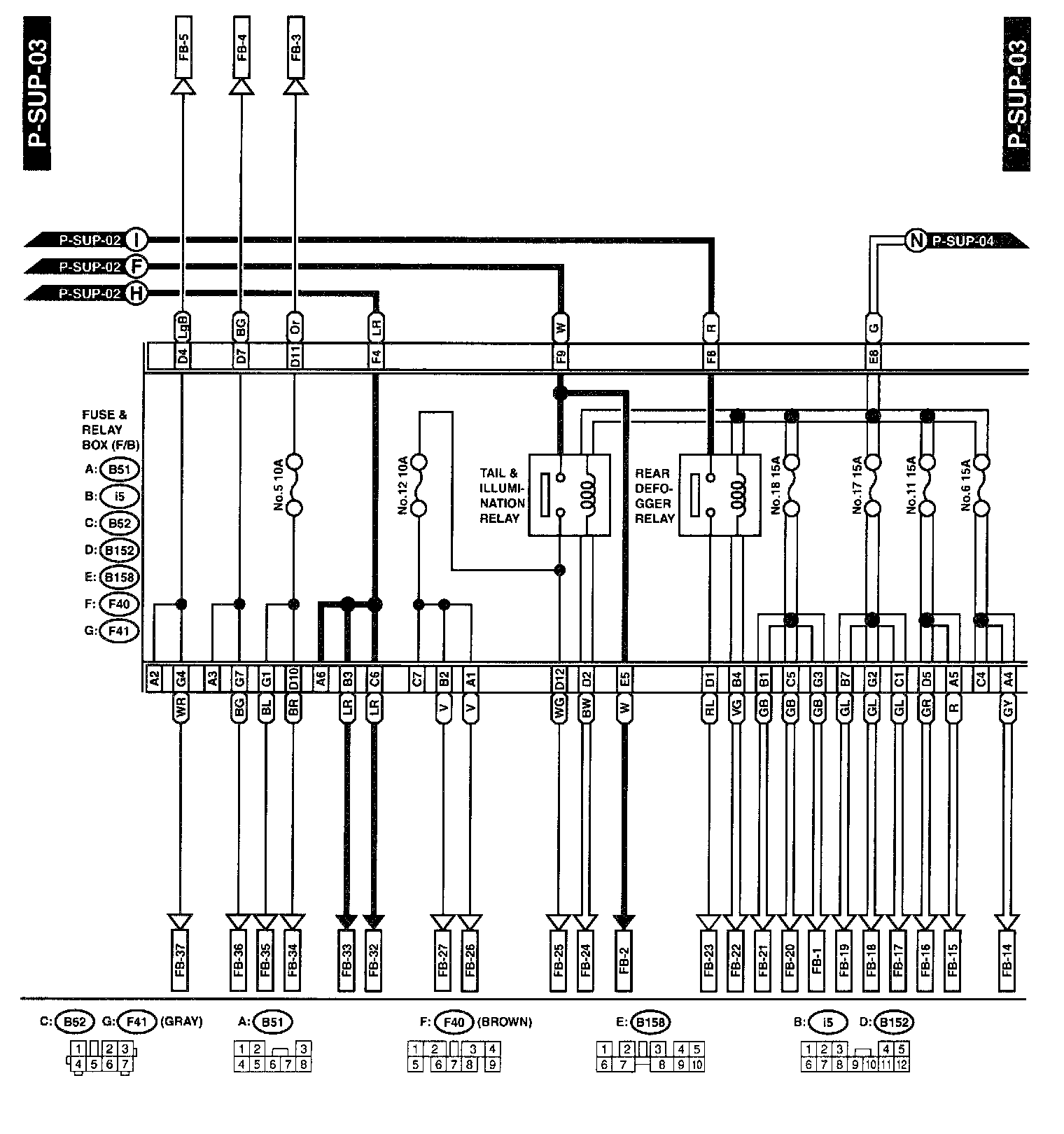

P-SUP-03 - Power Supply Routing:



P-SUP-04 - Power Supply Routing:

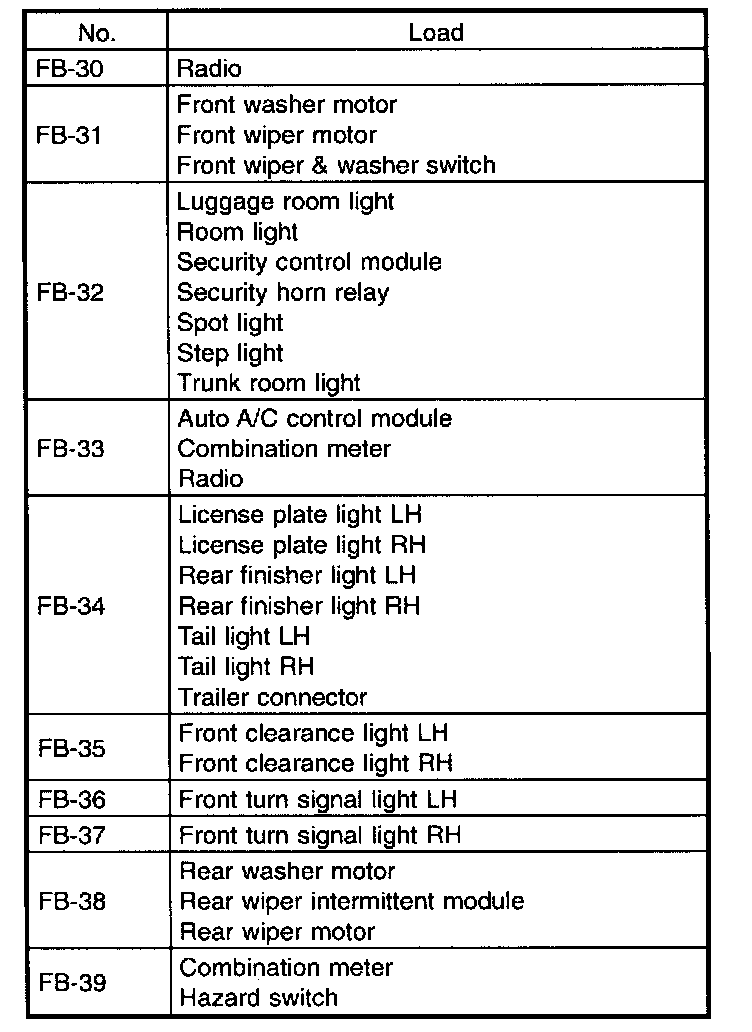

Part 1:

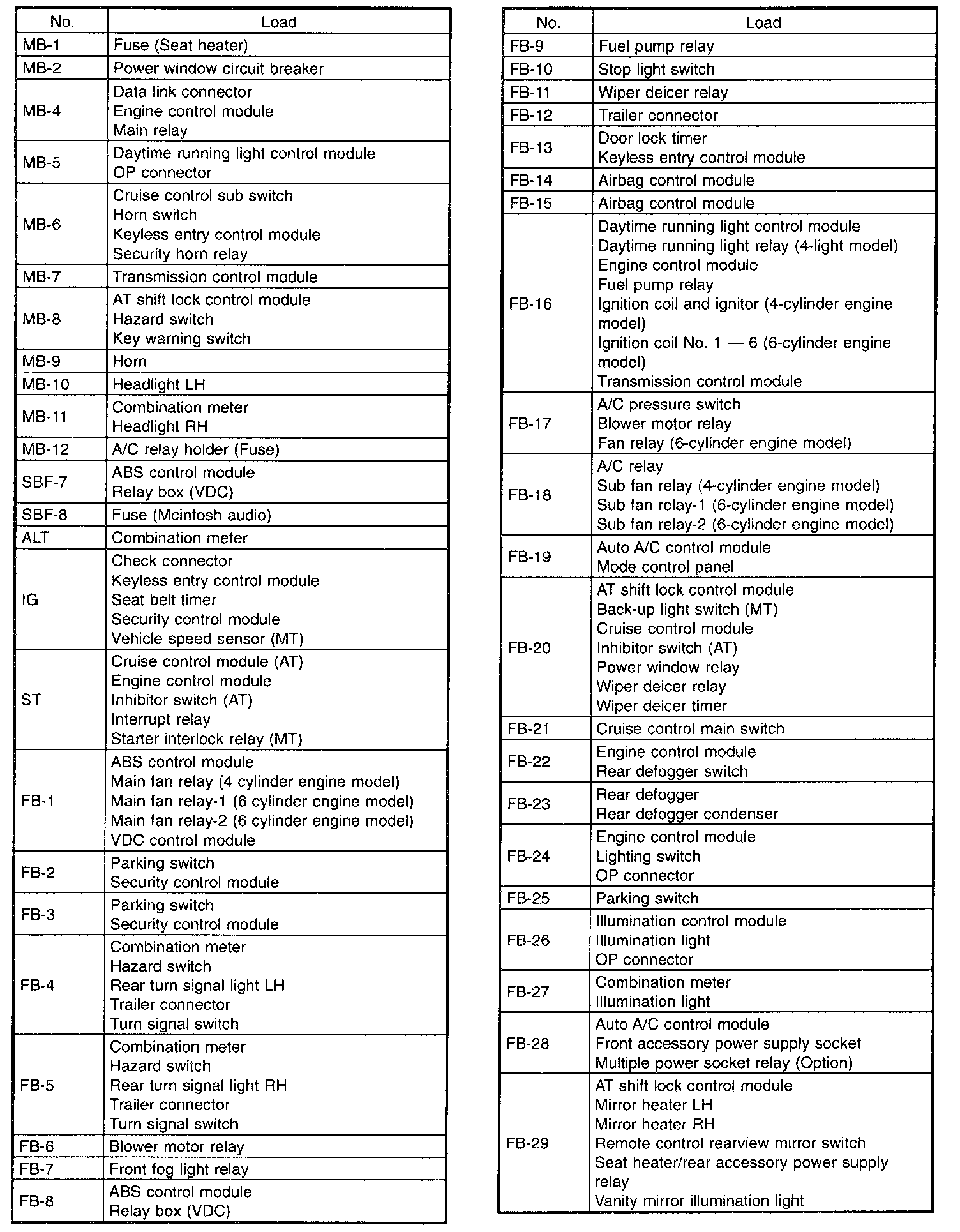

Part 2:
