Turn Signal Lamp: Service and Repair

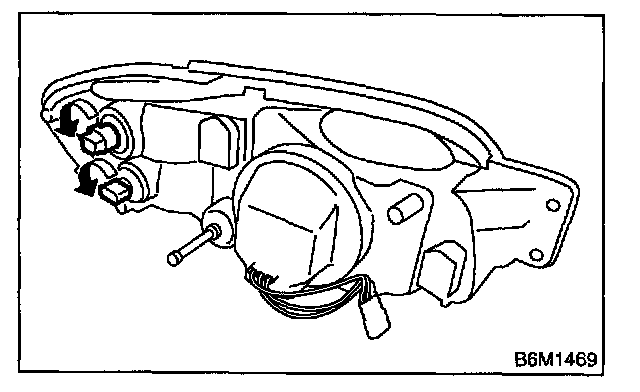

Front Turn Signal Light Bulb
REMOVAL
1.
Remove headlight assembly.
2.
Turn the socket and remove the bulb.
INSTALLATION
Install in the reverse order of removal.
