Luggage Room Light
Luggage Room LightREMOVAL

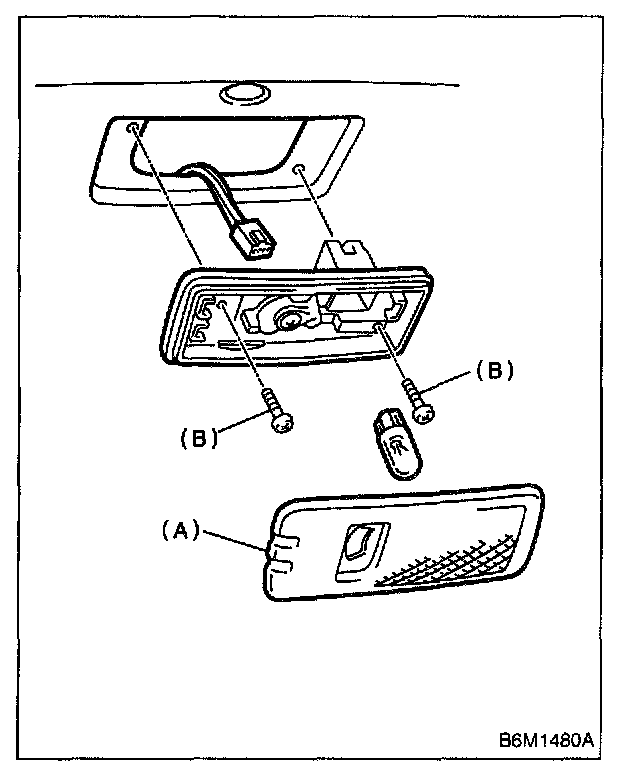

1. Remove lens (A) and luggage room light mounting screws (B).
2. Disconnect harness connectors and remove luggage room light.
INSTALLATION
Install in the reverse order of removal.
REMOVAL
1. Remove lens (A) and luggage room light mounting screws (B).
2. Disconnect harness connectors and remove luggage room light.
INSTALLATION
Install in the reverse order of removal.
