Map Light: Service and Repair

Spot Light

REMOVAL

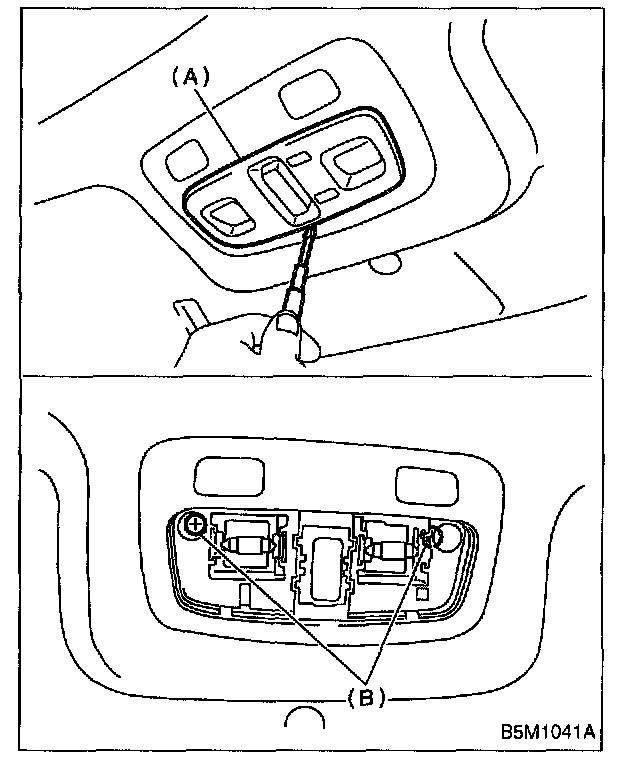

1. Remove lens (A) and spotlight mounting screw (B).
2. Disconnect harness connectors and remove spotlight.

INSTALLATION
Install in the reverse order of removal.
