Home >> Subaru >> 2001 >> Legacy Outback LL Bean Ed. AWD F6-3.0L >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Service and Repair

Horn: Service and Repair

Horn

REMOVAL

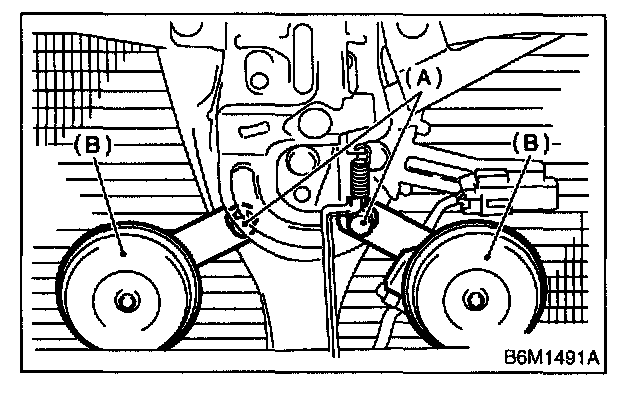

1. Remove horn bracket mounting bolt (A)




2. Disconnect harness connector and remove horn assembly (B).

INSTALLATION
Install in the reverse order of removal.
