Home >> Subaru >> 2001 >> Legacy Outback LL Bean Ed. AWD F6-3.0L >> Repair and Diagnosis >> Lighting and Horns >> Dome Lamp >> Testing and Inspection

Dome Lamp: Testing and Inspection

Room Light

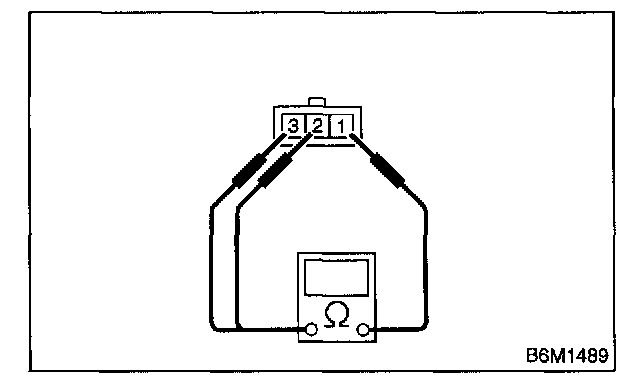

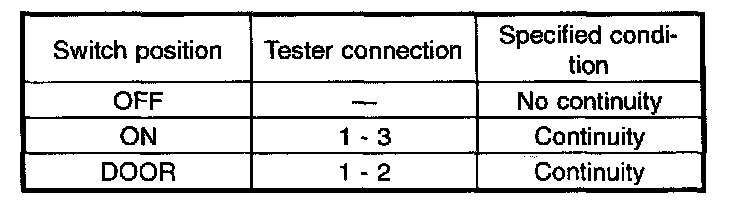

Check continuity between terminals.
