Temperature Gauge: Testing and Inspection

Water Temperature Gauge

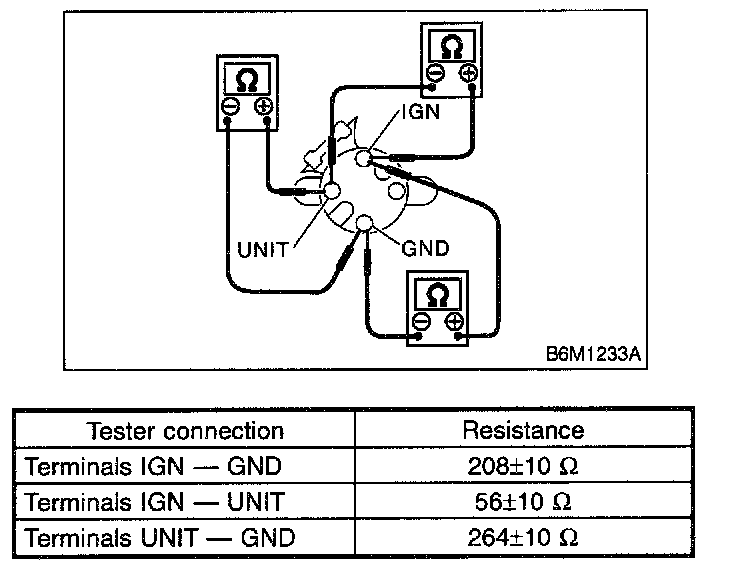

Measure resistance between temperature gauge terminals.
If NG, replace tachometer and water temperature gauge assembly.
If OK, replace combination meter printed circuit.
