Outside Temperature Display: Testing and Inspection
Ambient Sensor

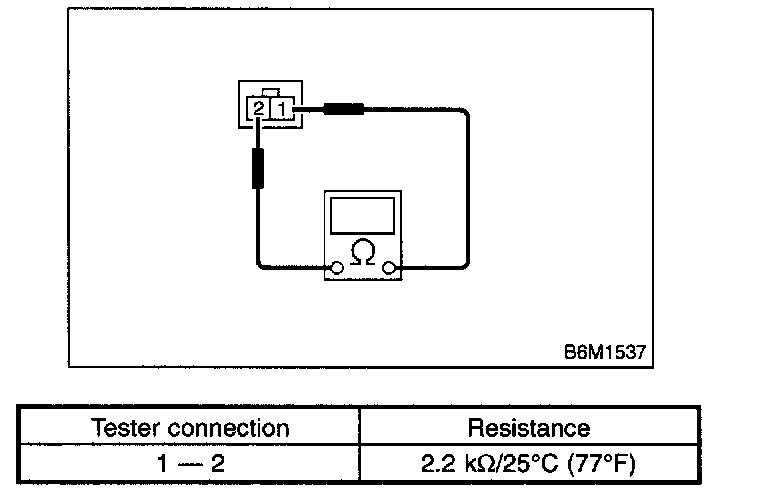

Measure resistance between ambient sensor terminals.
If NG, replace the ambient sensor.
