Disassembly and Assembly
Combination Meter AssemblyDISASSEMBLY
CAUTION: Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.

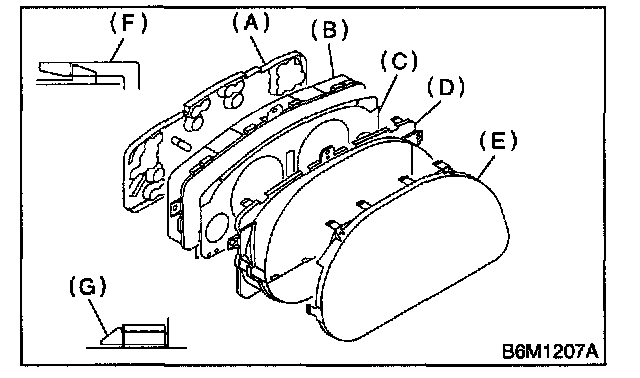

1. Disengage claw (F) to remove case (B) from back cover (A).
2. Disengage claw (G) to remove meter glass (E), reflector (D), and window plate (C) from inner case.

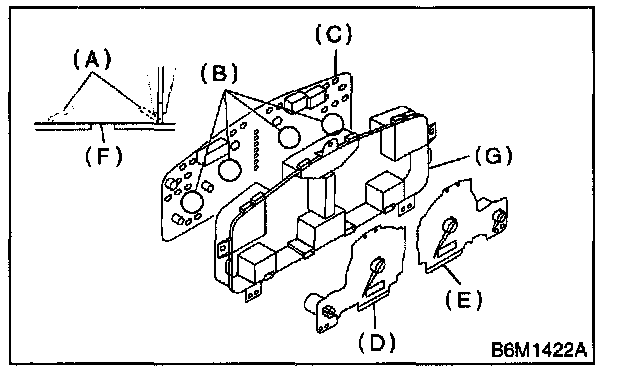

3. Pull up claw (A) in portion (B) of circuit plate (C) with combination pliers. Push out speedometer assembly (D) and tachometer assembly (E) using hole (F).

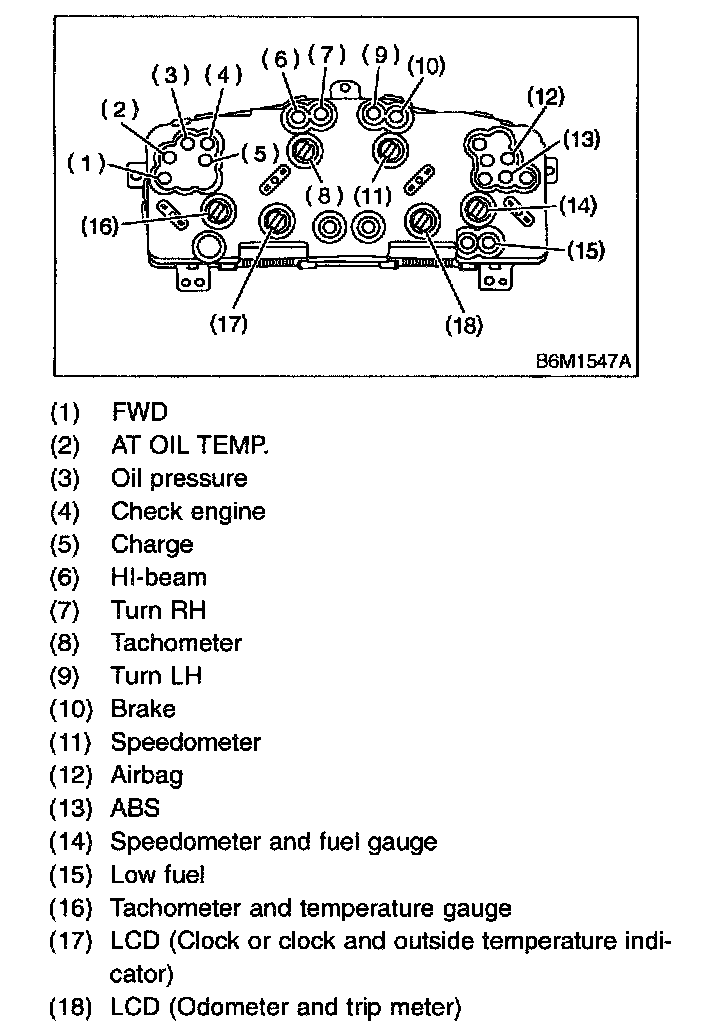

Bulb Replacement:
4. Pull up claw in the center of circuit plate (C), and remove circuit plate from case (G).
ASSEMBLY
Assemble in the reverse order of disassembly.
