Compartment Temp Not Changed or A/C Does Not Respond Quickly

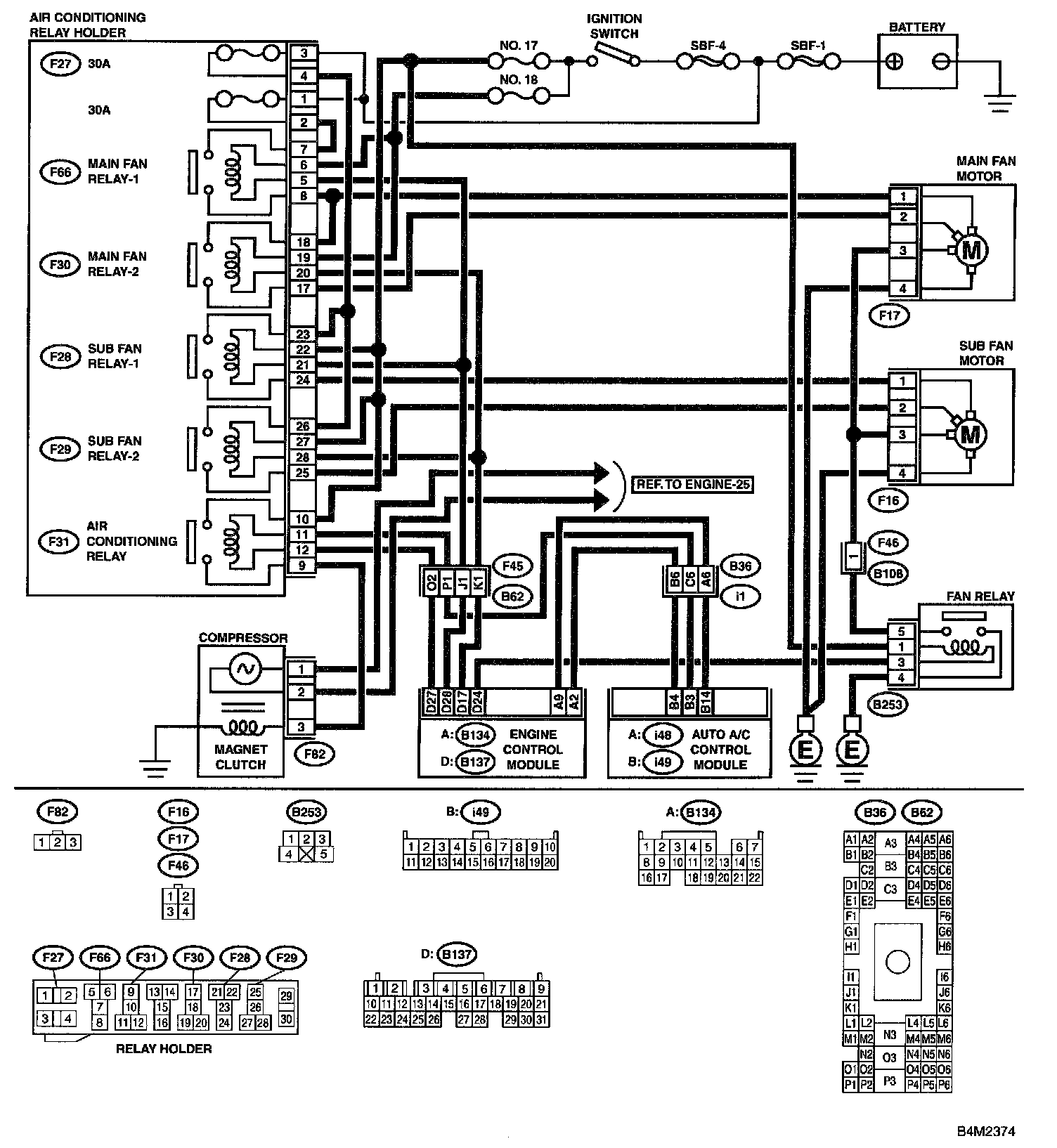

Wiring Diagram:

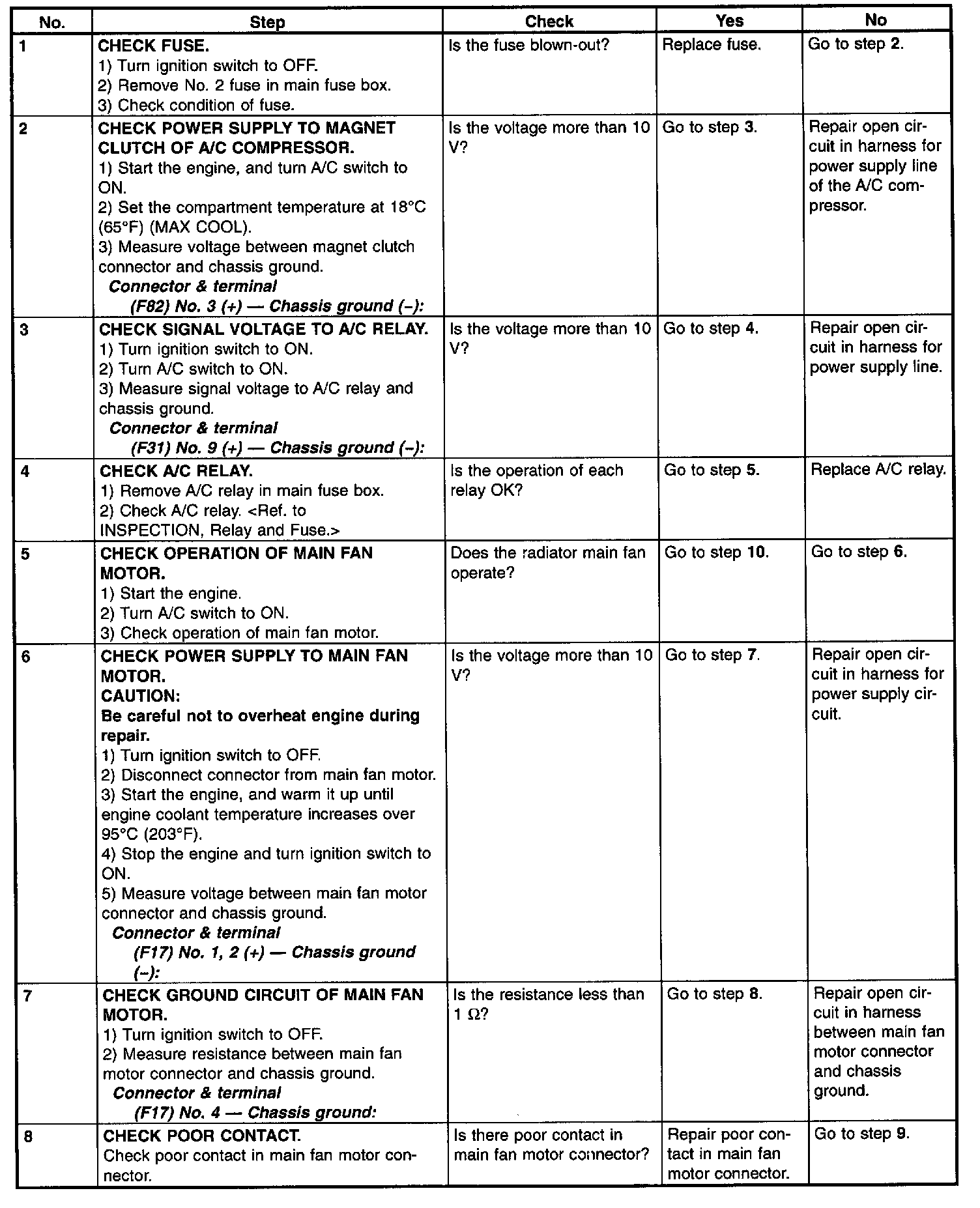

Step 1 - 8:

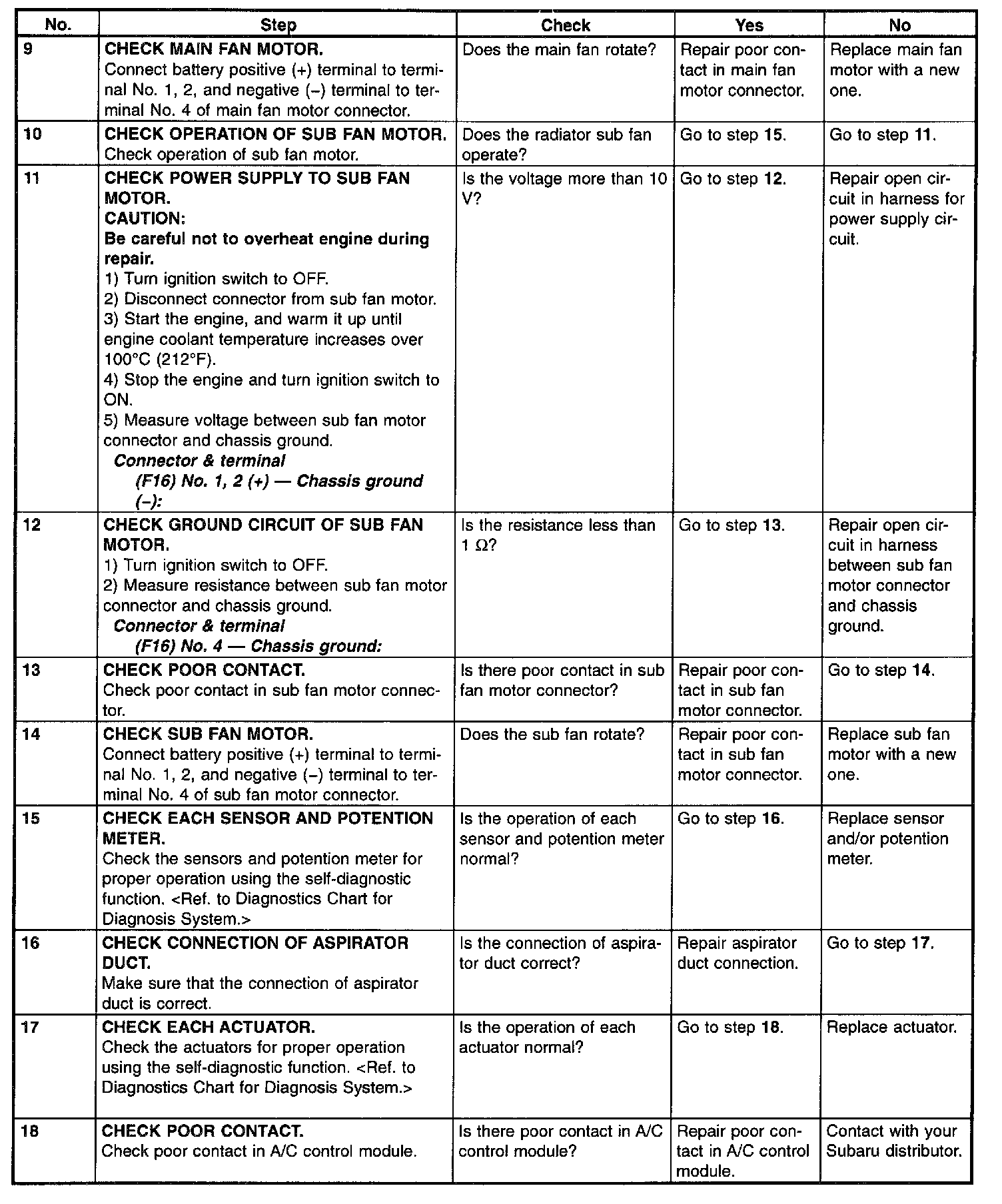

Step 9 - 18:
