Blower Motor is Not Rotated

Blower Motor is Not Rotated

TROUBLE SYMPTOM:

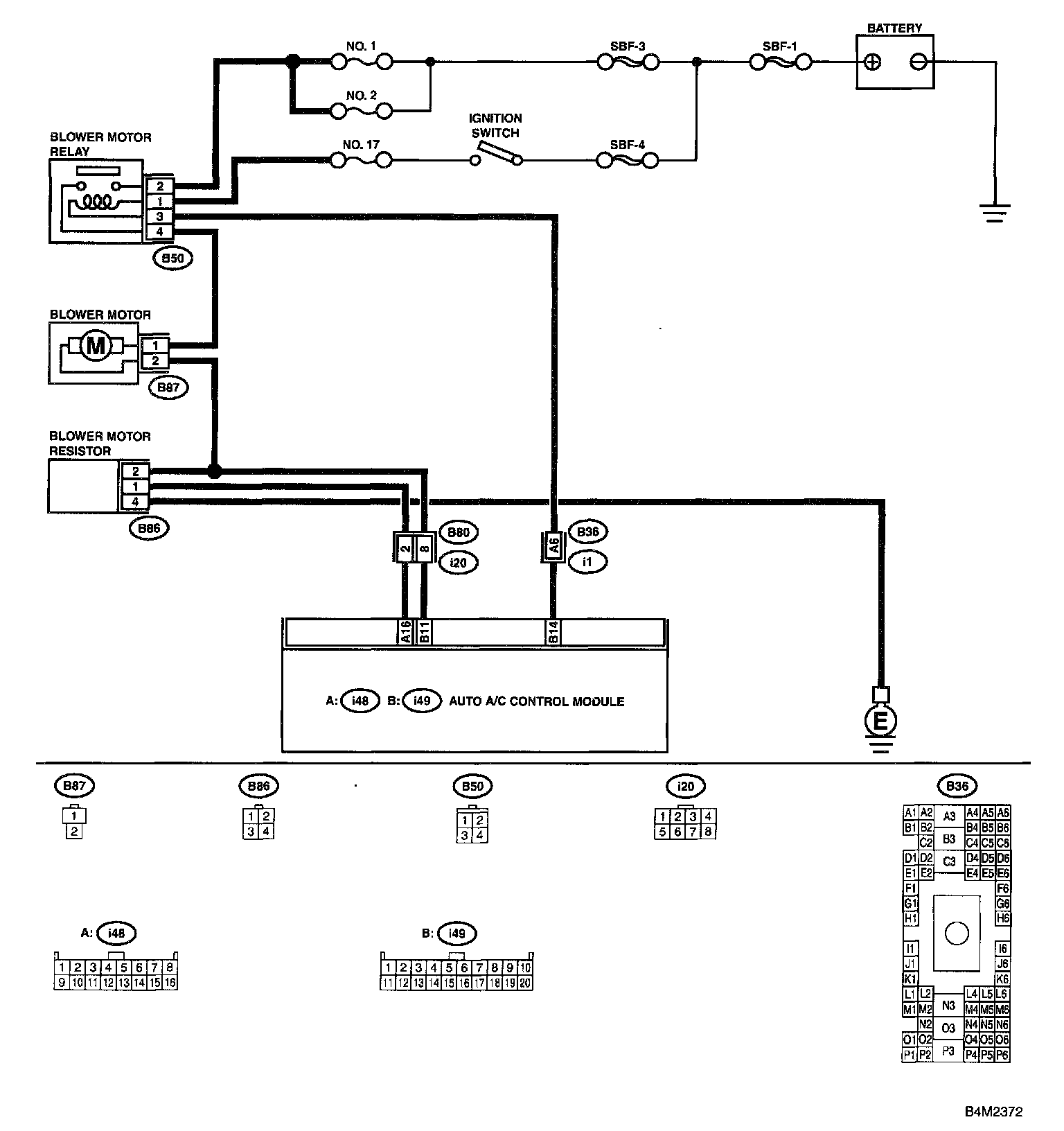

Wiring Diagram:

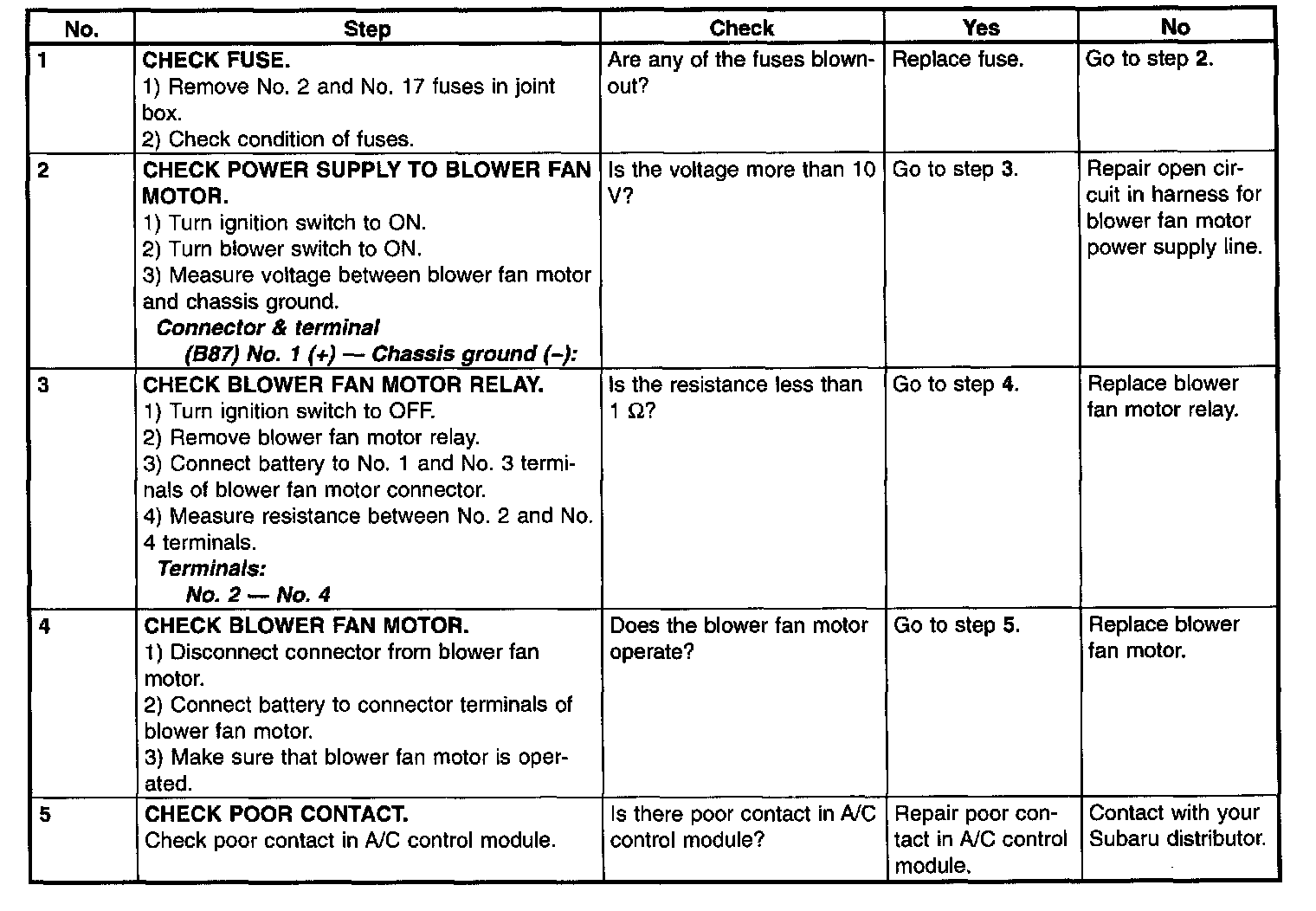

Step 1 - 5:




- Blower motor is not rotated.
- blower motor is not rotated in "HI".
