Legacy Outback LL Bean Ed. AWD F6-3.0L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Reading and Clearing Diagnostic Trouble Codes
>>
Self-Diagnosis Mode
Self-Diagnosis Mode

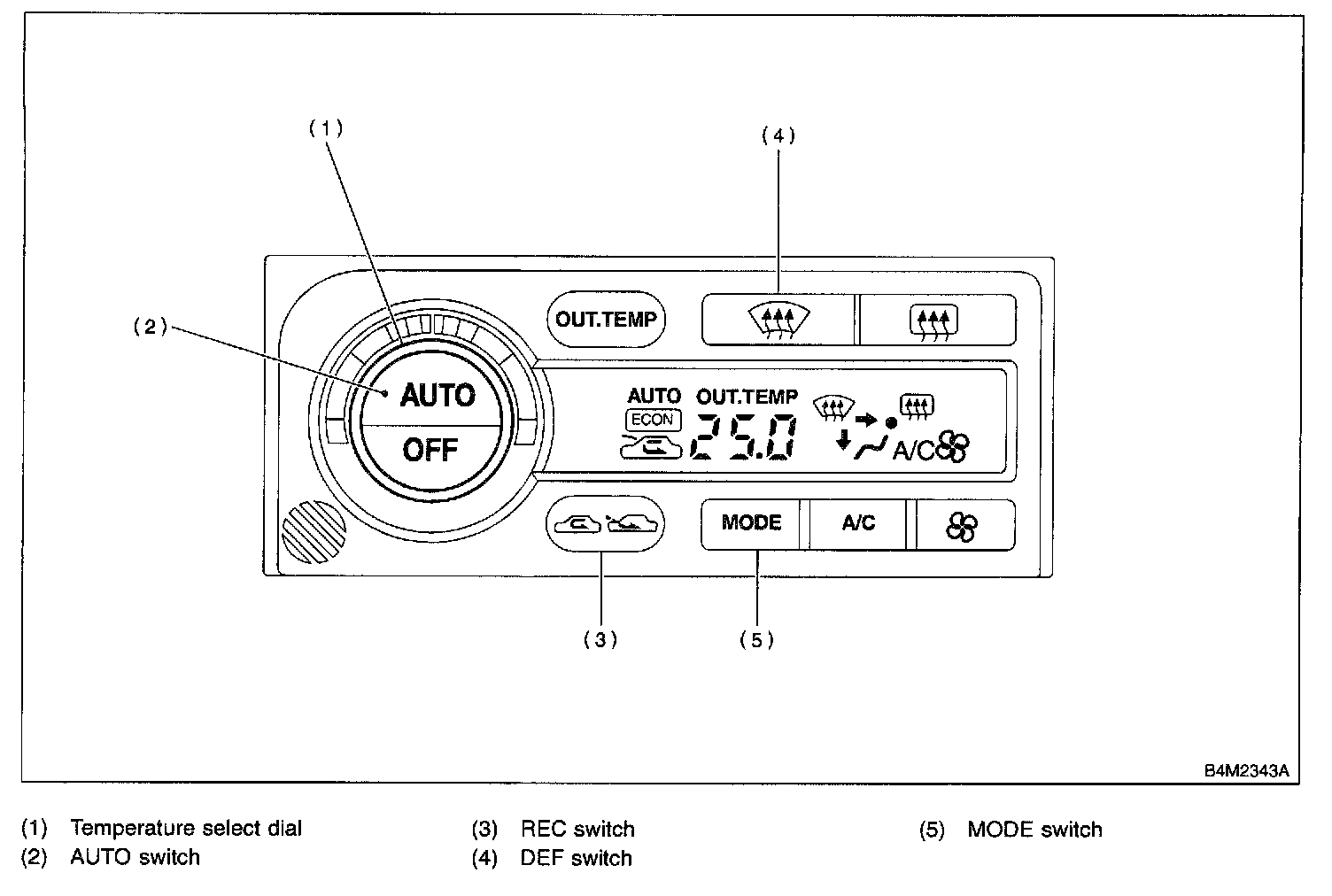

Self-Diagnosis Mode:

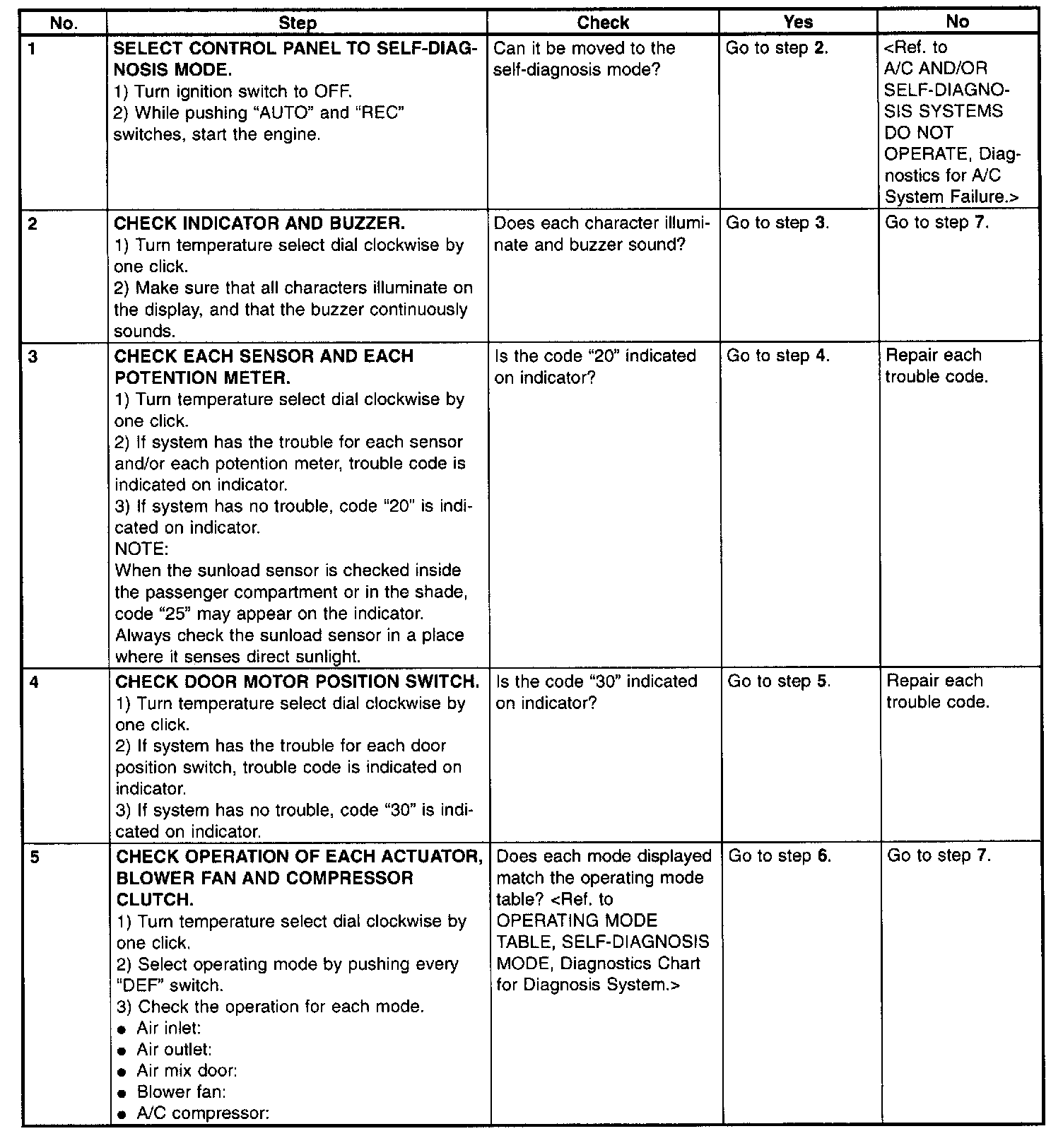

Self Diagnosis Step 1 - 5:

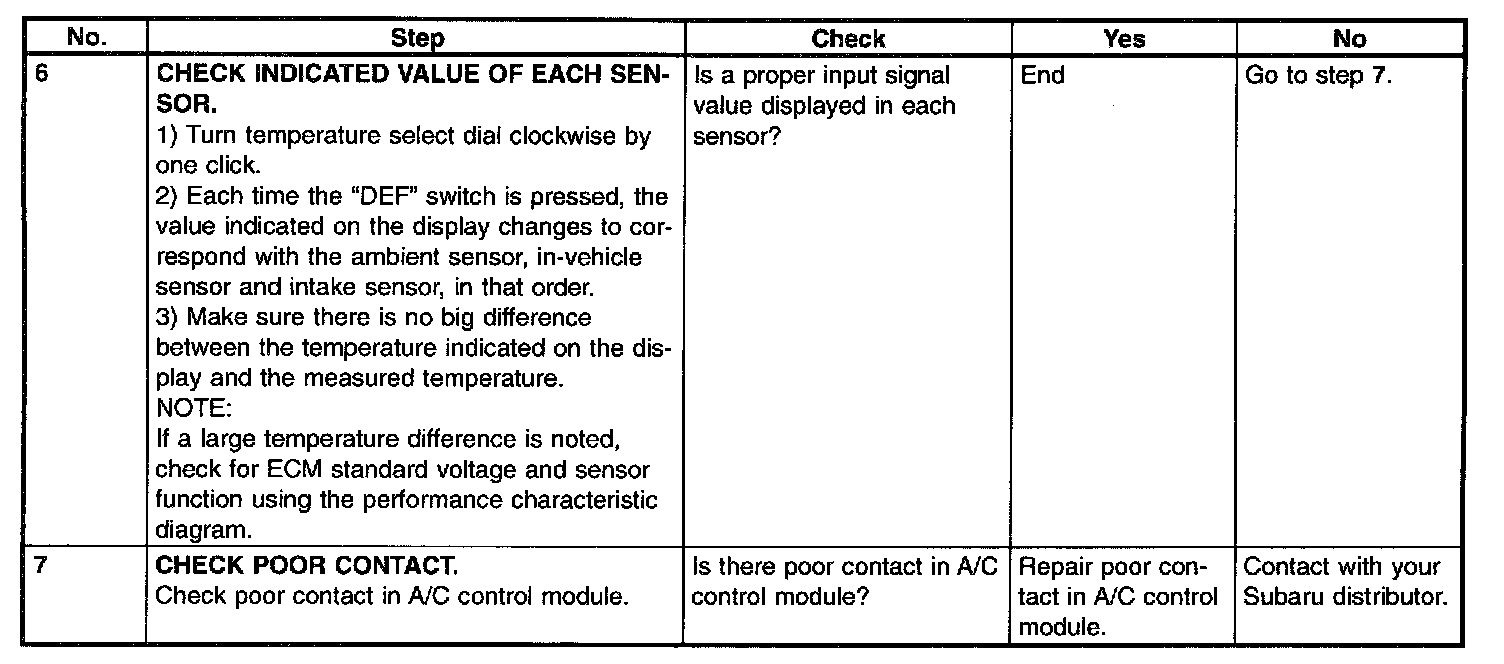

Step 6 - 7:

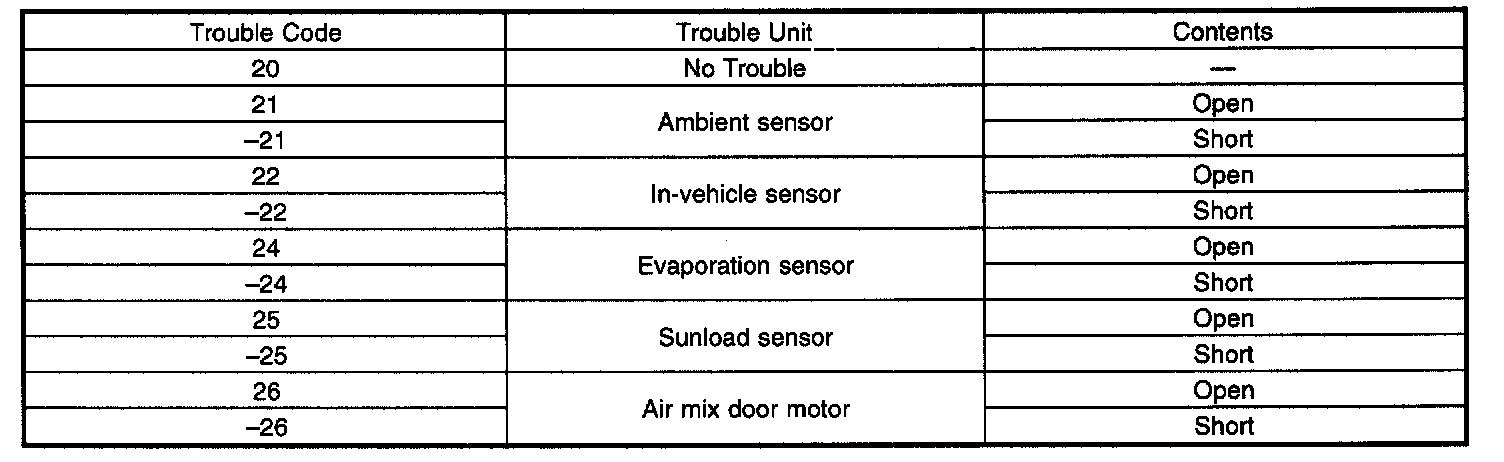

Trouble Code For Sensor And Potentiometer:
Trouble Code For Mode Door Position Switch:
