Heater Core Case: Service and Repair

Heater Unit

REMOVAL

1. Disconnect ground cable from battery.
2. Drain coolant from the radiator.
3. Remove air cleaner case.




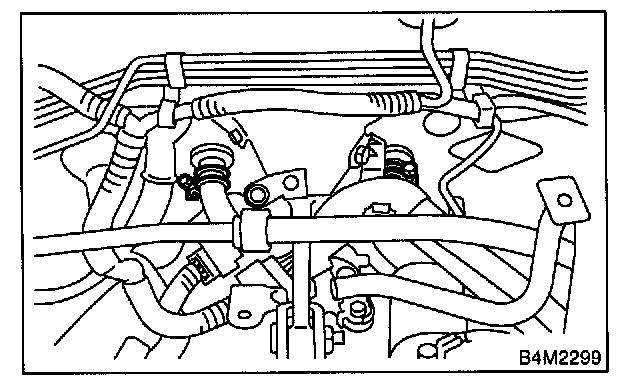

4. Release heater hose clamps in engine compartment to remove the hoses.
5. Remove A/C unit.

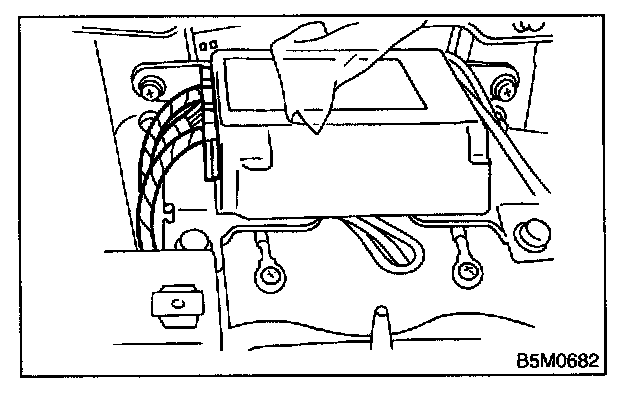

6. Using a Torx wrench, remove airbag control unit.

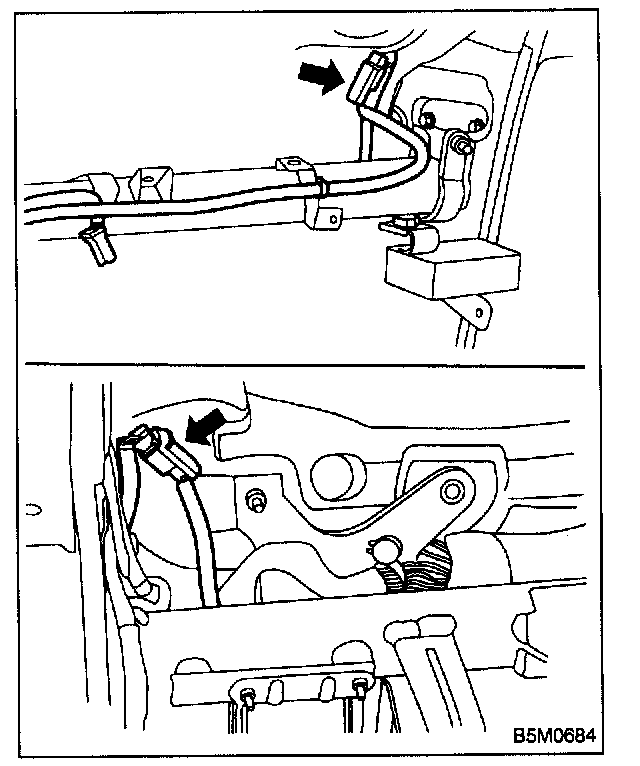

7. Disconnect connector of airbag main harness near steering support beam.
8. Loosen bolts and nuts of support beam to remove support beam.
9. Disconnect servo connector.

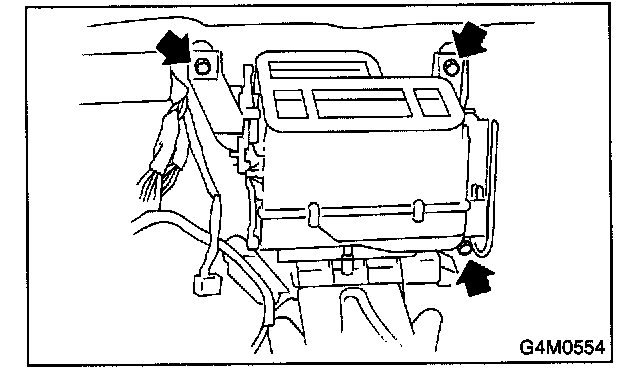

10. Loosen bolts and nuts of heater unit to remove heater unit.

INSTALLATION
Install in the reverse order of removal.
