Rear Chain Cover
REMOVAL1. Remove crankshaft pulley.
2. Remove front chain cover.
3. Remove timing chain.
4. Remove camshaft sprocket.

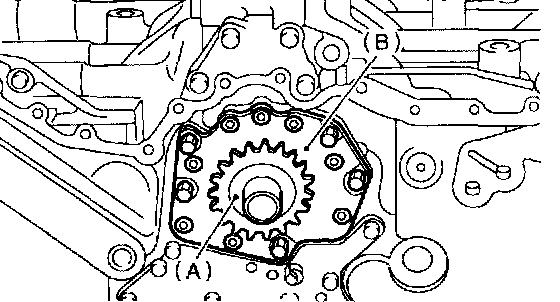

5. Remove crankshaft sprocket. (A)
6. Remove oil pump. (B)
7. Remove oil pump relief valve case.
8. Remove water pump.
9. Remove rear chain cover.

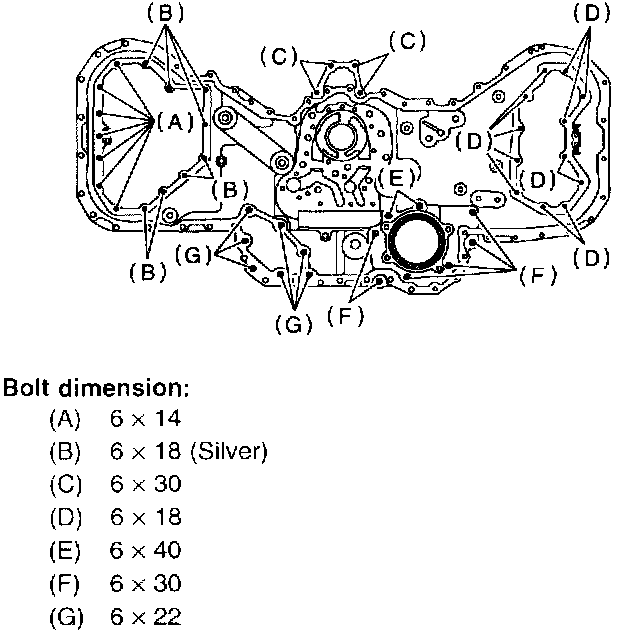

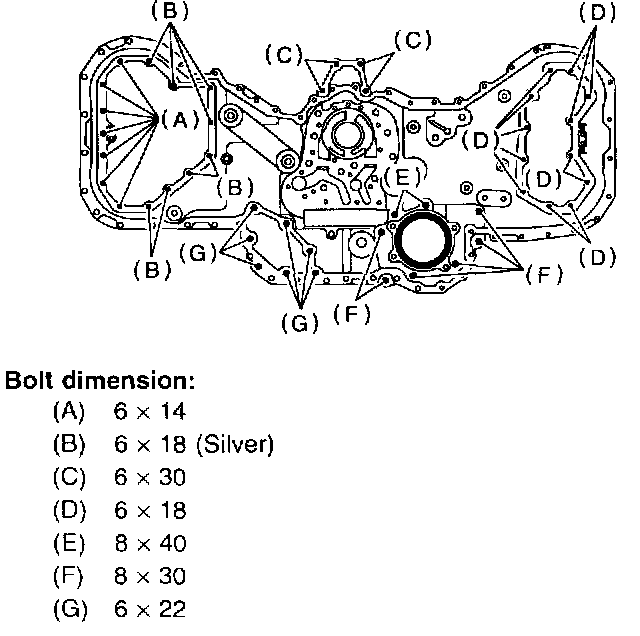

CAUTION: There are seven different types of mounting bolts. Sort them into separate containers to avoid confusion at installation.
INSTALLATION
1. Remove old fluid packing on the matching surface, and degrease it.

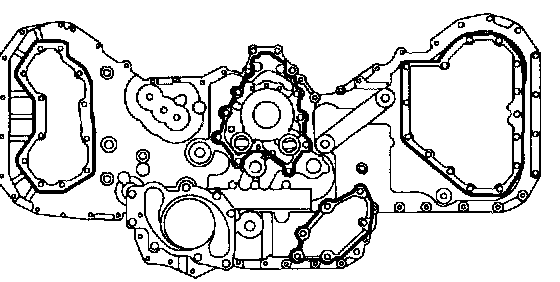

2. Apply fluid packing to the mating surface of rear chain cover.
Fluid packing: THREE BOND 1280B

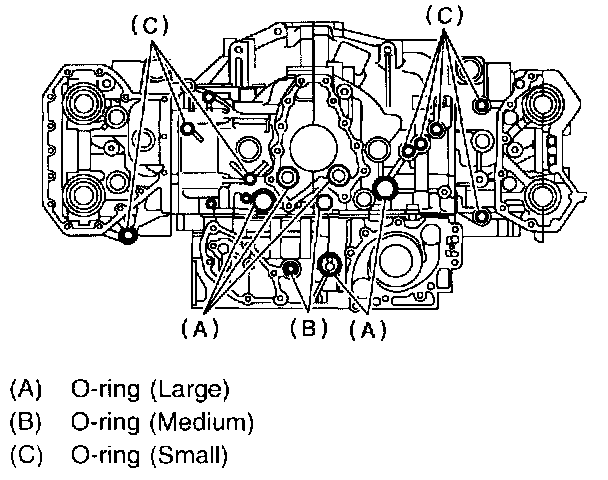

3. Install O-ring.
CAUTION: Do not reuse the O-ring.
4. Temporarily tighten rear chain cover.
CAUTION: Do not confuse the mounting positions of the bolts.

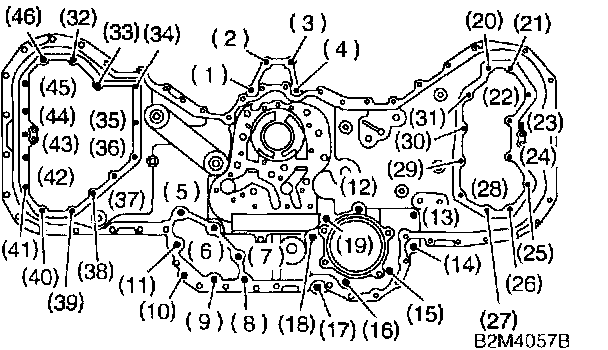

5. Tighten the bolts in the numerical sequence shown in figure.
Tightening torque:
6. Install water pump.
Tightening torque: 6.3 Nm (0.64 kgf-m, 4.6 ft. lbs.)

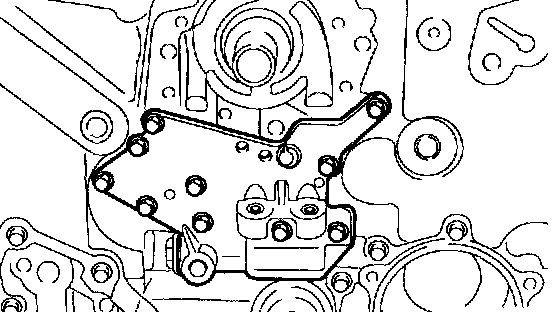

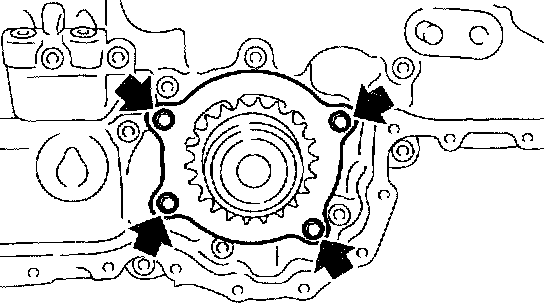

7. Temporarily tighten oil pump relief valve case.

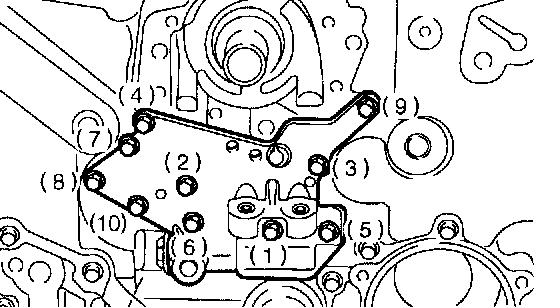

8. Tighten the bolts in the numerical sequence shown in figure.
Tightening torque: 6.3 Nm (0.64 kgf-m, 4.6 ft. lbs.)

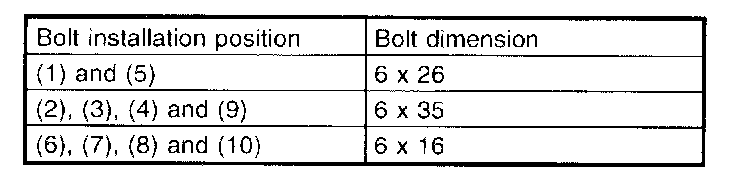

CAUTION: Do not confuse the mounting positions of the bolts.

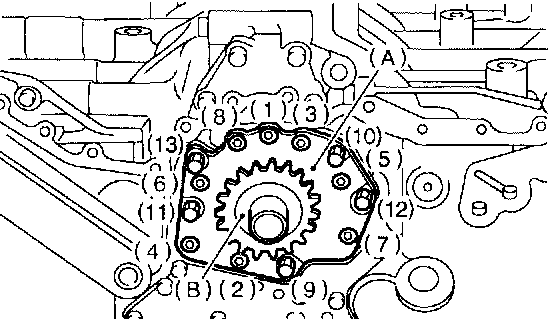

9. Install oil pump (A).
10. Tighten the bolts in the numerical sequence shown in figure.
Tightening torque: 6.3 Nm (0.64 kgf-m, 4.6 ft. lbs.)
11. Install crankshaft sprocket (B).
12. Install camshaft sprocket.
13. Install timing chain.
14. Install front chain cover.
15. Install crankshaft pulley.
