Front Crankshaft Seal: Service and Repair

1. Remove crankshaft pulley.

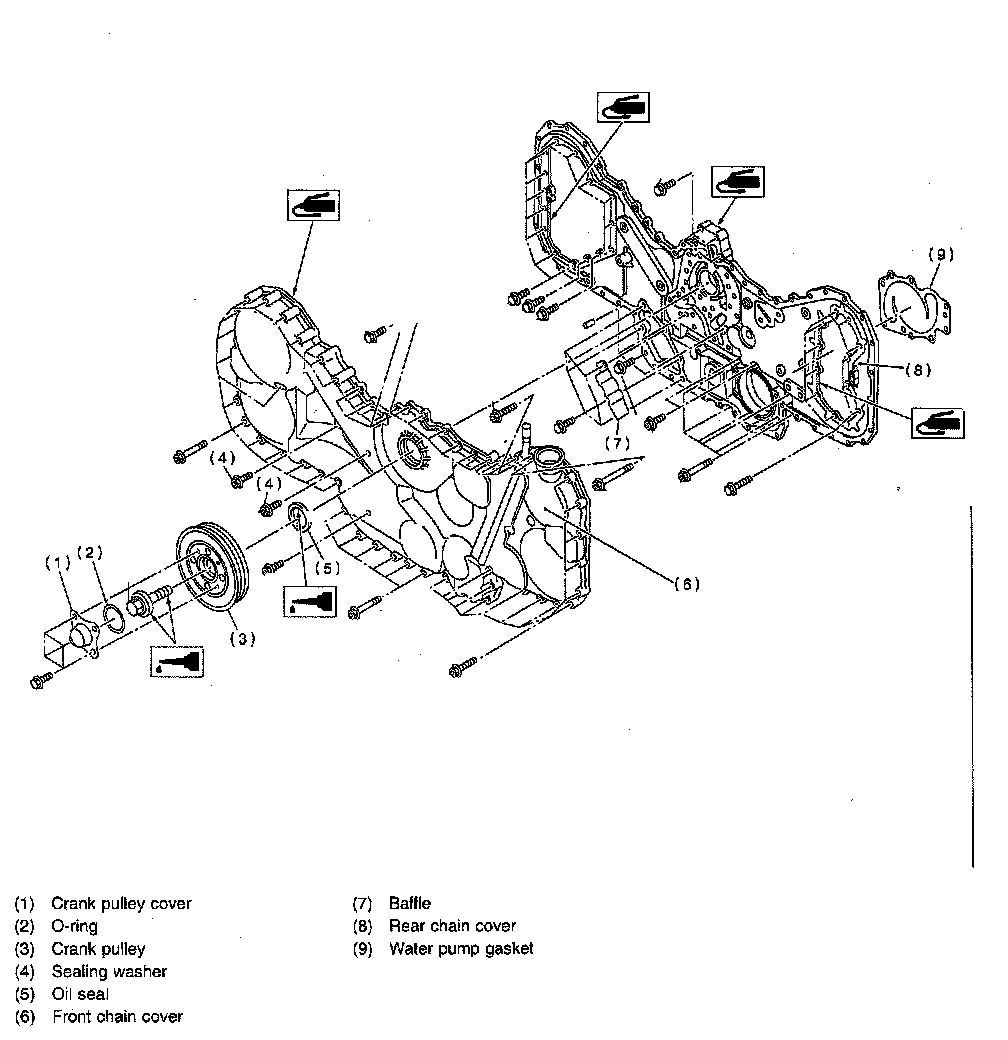

2. Remove front chain cover.

3. Remove front crankshaft seal from front cover.

Note : There are four different types of chain cover bolts. Do not confuse the location of the bolts. For information on bolt locations refer to Timing Components/Timing Cover.
