Intake Manifold: Service and Repair
REMOVAL

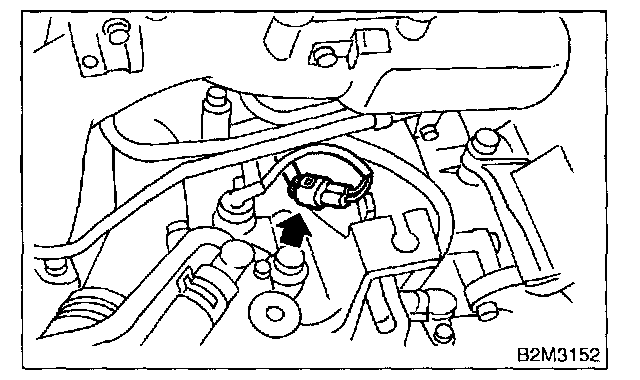

1. Release fuel pressure.

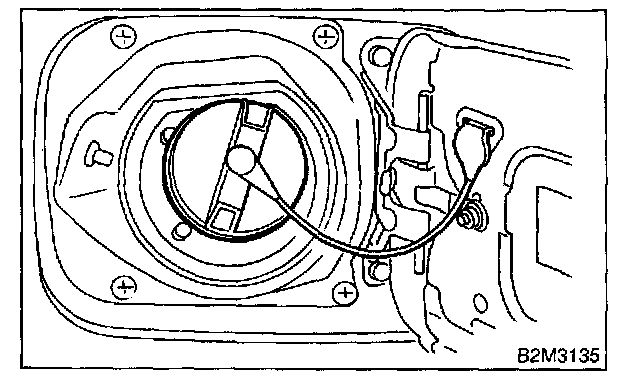

2. Open fuel flap lid, and remove fuel filler cap.
3. Disconnect the battery ground cable.
4. Remove the air intake duct, air cleaner assembly and air intake chamber.
5. Disconnect accelerator cable (A).
sb01legac_esm_fu-019d
6. Disconnect the cruise control cable (B). (if equipped)
7. Remove the power steering pump and tank from brackets.
sb01legac_esm_fu-019e
(1) Remove the resonator chamber.
sb01legac_esm_fu-019f
(2) Remove V-belt covers.
sb01legac_esm_fu-019g
(3) Loosen the lock bolt and slider bolt, and remove the power steering pump drive V-belt.
sb01legac_esm_fu-020a
(4) Remove the bolts that hold the power steering pipes onto the intake manifold protector.
NOTE: Do not disconnect the power steering hose.
sb01legac_esm_fu-020b
(5) Remove the bolts that install the power steering pump bracket.
(6) Disconnect connector from power steering pump switch.
(7) Remove the power steering tank from the bracket by pulling it upward.
sb01legac_esm_fu-020d
(8) Place the power steering pump on the right side wheel apron.
8. Disconnect the spark plug wires from spark plugs.
sb02legac_sm3_fu-018e
9. Disconnect the PCV hose from the intake manifold.
sb01legac_esm_fu-021a
10. Disconnect the engine coolant hose from the throttle body.
sb01legac_esm_fu-021b
11. Disconnect the brake booster hose.
sb01legac_esm_fu-021c
12. Remove the air cleaner case stay RH and the engine harness bracket, and disconnect the engine harness connectors from the bulkhead harness connectors.
sb01legac_esm_fu-021d
13. Disconnect the connectors from the engine coolant temperature sensor.
sb01legac_esm_fu-021e
14. Disconnect the knock sensor connector.
sb01legac_esm_fu-021f
15. Disconnect the connector from the crankshaft position sensor.
sb01legac_esm_fu-021g
16. Disconnect the connector from the oil pressure switch.
sb01legac_esm_fu-022a
17. Disconnect the connector from the camshaft position sensor.
sb01legac_esm_fu-022b
18. Disconnect the fuel hoses from the fuel pipes.
(A) Fuel delivery hose
(B) Return hose
(C) Evaporation hose
Warning:
- Do not spill fuel.
- Catch fuel from hoses in a container or cloth.
sb01legac_esm_fu-022c
19. remove the bolts that hold the intake manifold onto the cylinder heads.
sb01legac_esm_fu-022d
Remove the intake manifold.
INSTALLATION
sb01legac_esm_fu-022e
1. Install the intake manifold onto the cylinder heads.
CAUTION: Always use new gaskets.
Tightening torque:
25 Nm (2.5 kgf-m, 18.1 ft-lb)
sb01legac_esm_fu-022f
2. Connect fuel hoses.
(A) Fuel delivery hose
(B) Return hose
(C) Evaporation hose
sb01legac_esm_fu-023a
3. Connect the connector to the camshaft position sensor.
sb01legac_esm_fu-023b
4. Connect the connector to the oil pressure switch.
sb01legac_esm_fu-023c
5. Connect the connector to the crankshaft position sensor.
sb01legac_esm_fu-023d
6. Connect the knock sensor connector.
sb01legac_esm_fu-023e
7. Connect the connectors for the engine coolant temperature sensor.
sb01legac_esm_fu-023f
8. Install the air cleaner case stay RH and the engine harness bracket, and connect the engine harness connectors to the bulkhead connectors.
sb01legac_esm_fu-023g
9. Connect the brake booster hose.
sb01legac_esm_fu-024a
10. Connect the engine coolant hose to the throttle body.
sb01legac_esm_fu-024b
11. Connect the PCV hose to the intake manifold.
12. Connect the spark plug wires to the spark plugs.
13. Install the power steering pump and tank on brackets.
sb01legac_esm_fu-024c
(1) Install the power steering tank on bracket.
sb01legac_esm_fu-024d
(2) Connect the connector to the power steering pump switch.
sb01legac_esm_fu-024e
(3) Tighten the bolts that hold the power steering pump to the bracket.
Tightening torque:
10.1 Nm (2.05 kgf=m, 14.8 ft-lb)
sb01legac_esm_fu-024f
(4) Install the power steering pipes onto the right side intake manifold protector.
sb01legac_esm_fu-024g
(5) Install the power steering pump drive V-belt.
(6) Adjust V-belt.
sb01legac_esm_fu-025a
(7) Install the V-belt covers.
sb01legac_esm_fu-025b
(8) Install the resonator chamber.
Tightening torque: 33 Nm (3.4 kgf-m, 24.6 ft-lb)
sb01legac_esm_fu-025c
14. Connect the accelerator cable (A).
15. Connect the cruise control cable (B) (if equipped).
sb01legac_esm_fu-025d
16. Install the air intake duct and air cleaner assembly.
sb01legac_esm_fu-025e
17. Connect the connector to the fuel pump relay.
sb01legac_esm_fu-025f
18. Connect the battery ground cable.
