Engine Lubrication System
Engine Lubrication System

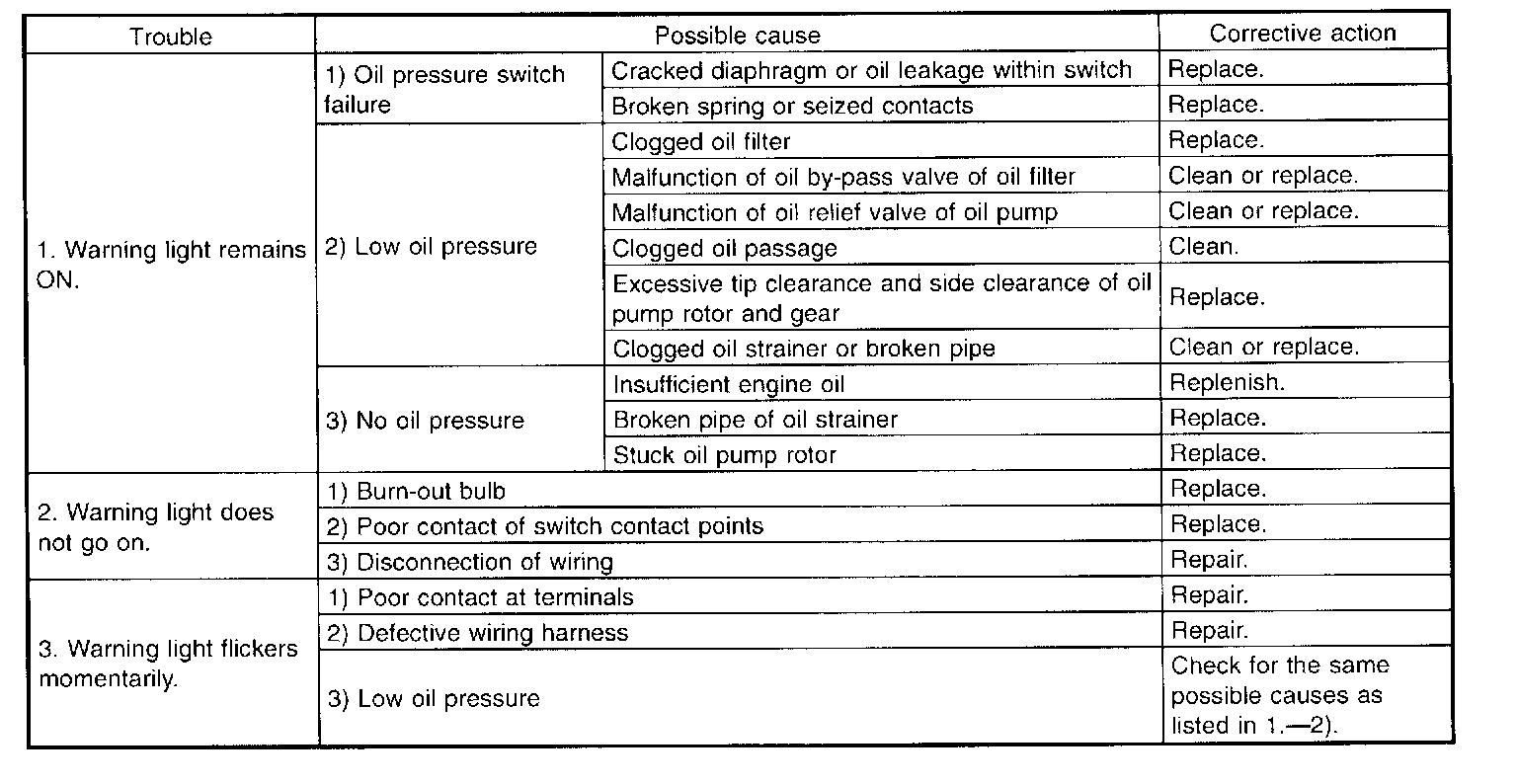

INSPECTION
Before performing diagnostics, make sure that the engine oil level is correct and no oil leakage exists.
