Oil Pressure Sender: Service and Repair

REMOVAL
1. Set vehicle on the lift.





2. Disconnect battery ground cable.
3. Lift-up the vehicle.
4. Remove under cover.

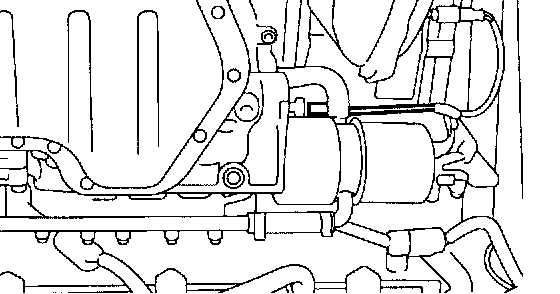

5. Disconnect terminal from oil pressure switch.

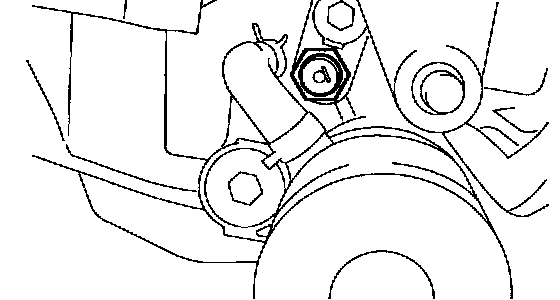

6. Remove oil pressure switch.

INSTALLATION

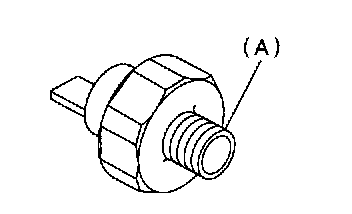

1. Apply fluid packing to oil pressure switch threads.
Fluid packing: THREE BOND 1324 or equivalent





2. Install oil pressure switch.
Tightening torque: 25 Nm (2.5 kgf-m, 18.1 ft. lbs.)





3. Connect terminal of oil pressure switch.
4. Install under cover.

INSPECTION
Make sure oil does not leak or seep from where the oil pressure switch is installed.
