Coolant Reservoir: Service and Repair

REMOVAL
1. Disconnect over flow hose from radiator filler neck position.

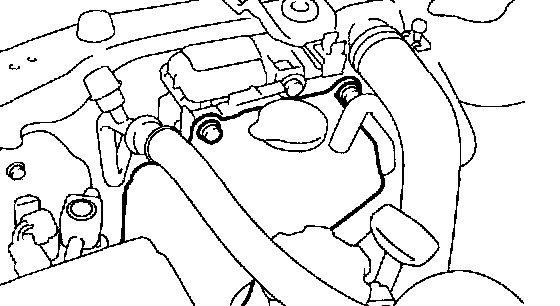

2. Remove bolts which install reservoir tank onto radiator main fan shroud.





3. Remove reservoir tank.

INSTALLATION

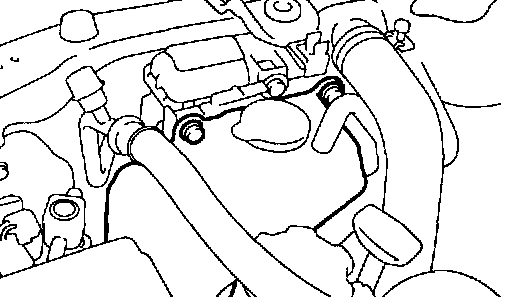

Install in the reverse order of removal.
Tightening torque: 4.9 Nm (0.50 kgf-m, 3.6 ft. lbs.)

INSPECTION
Make sure the engine coolant level is between full and low.
