Bulkhead Wiring Harness (In Engine Room)

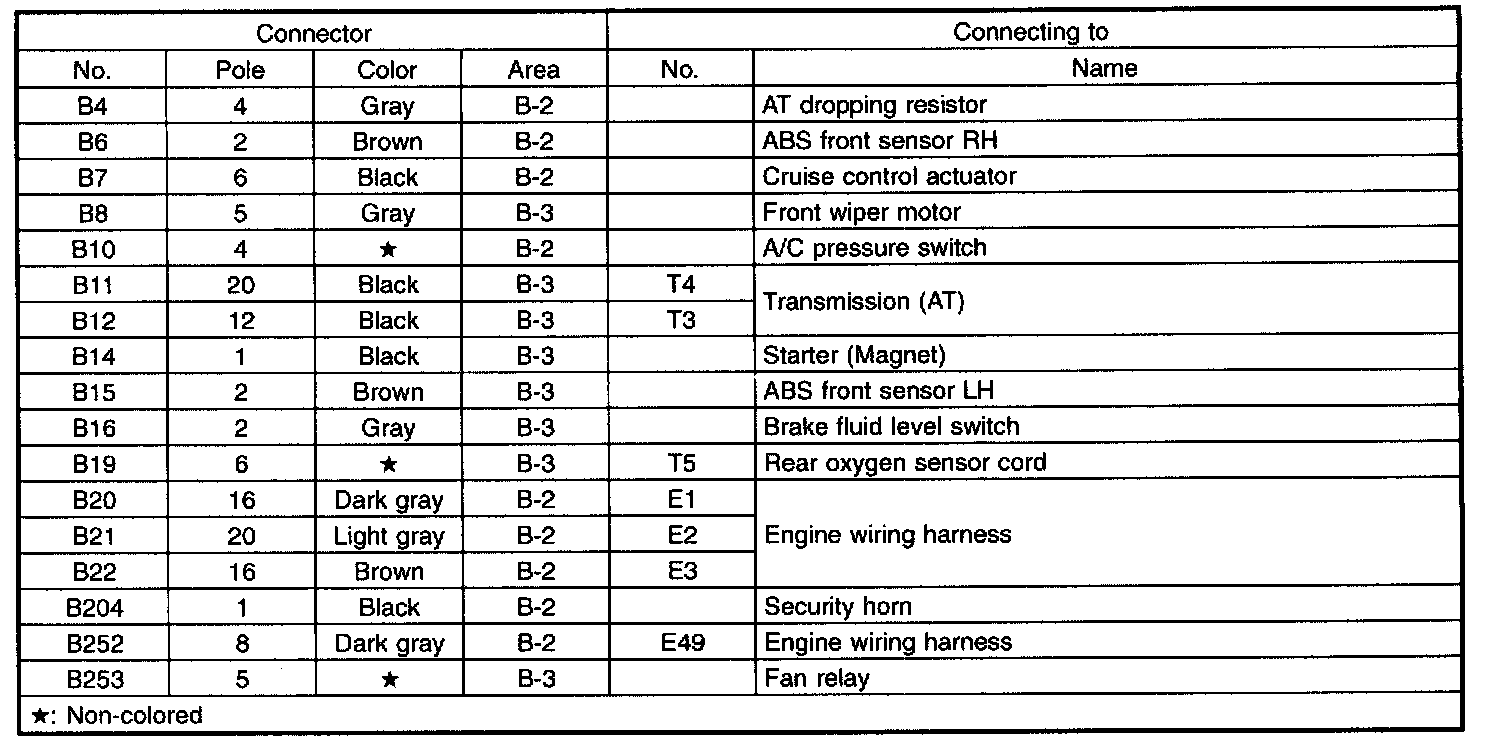

Connector Index:

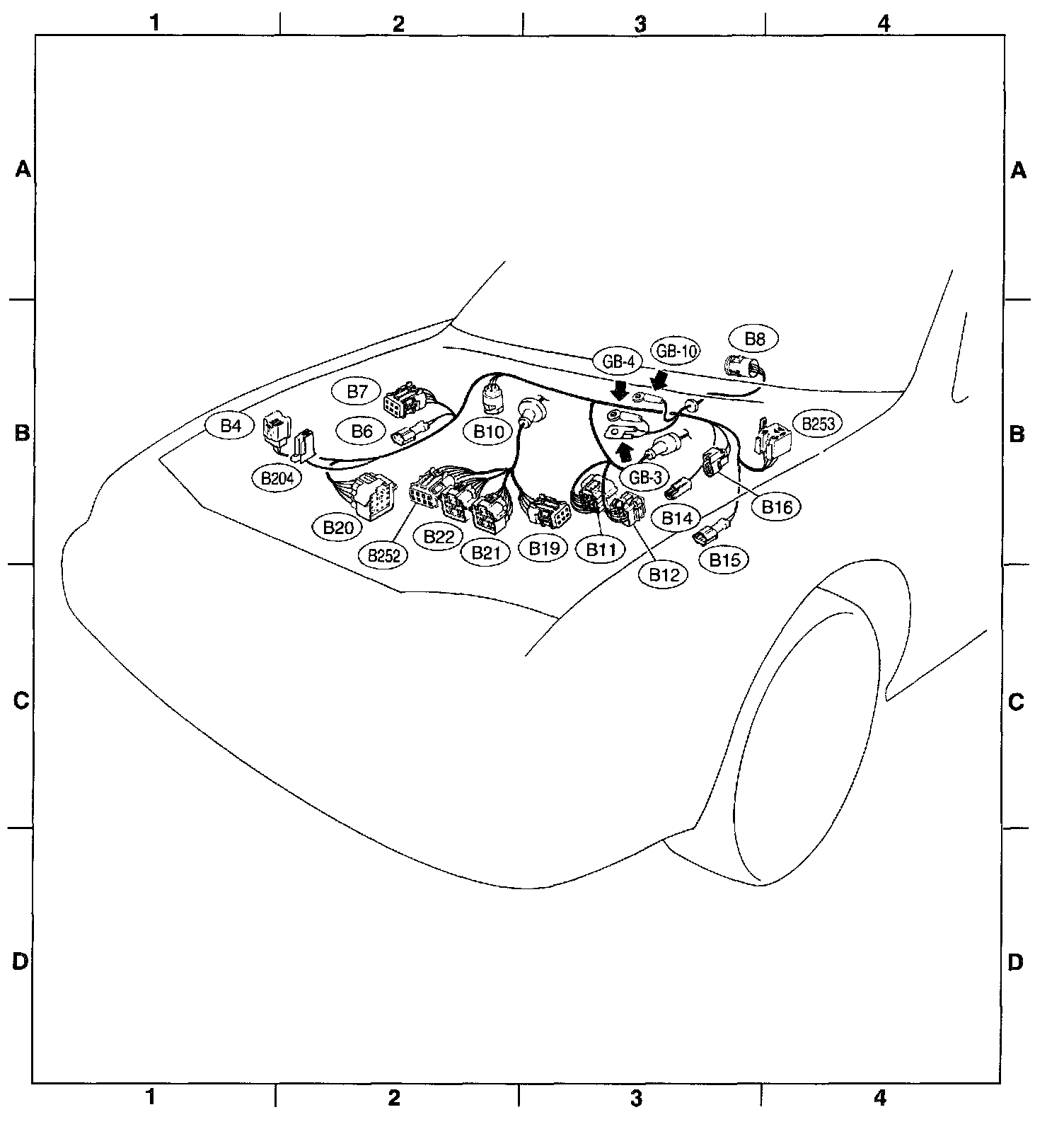

Connector Location:

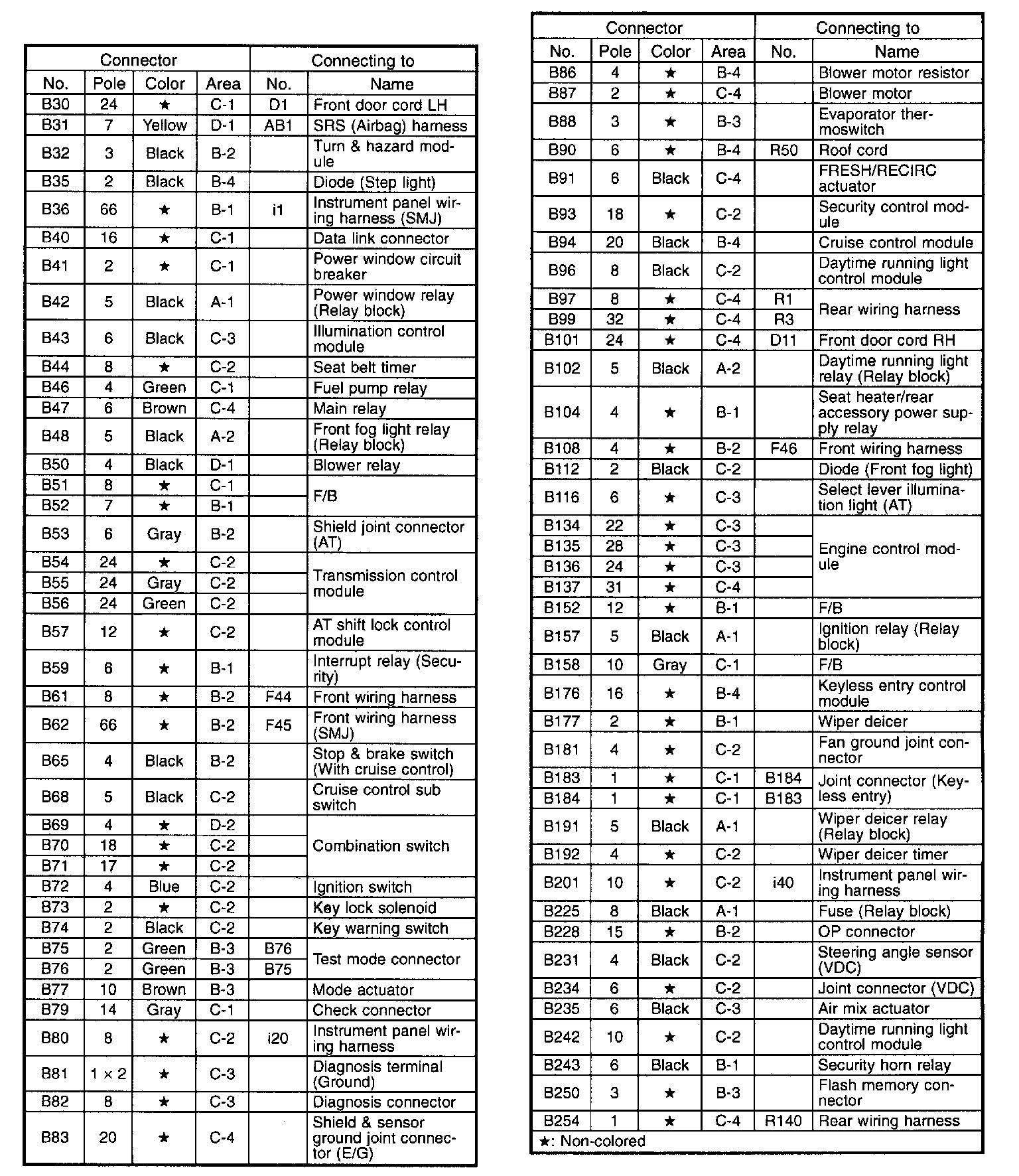

Connector Index:

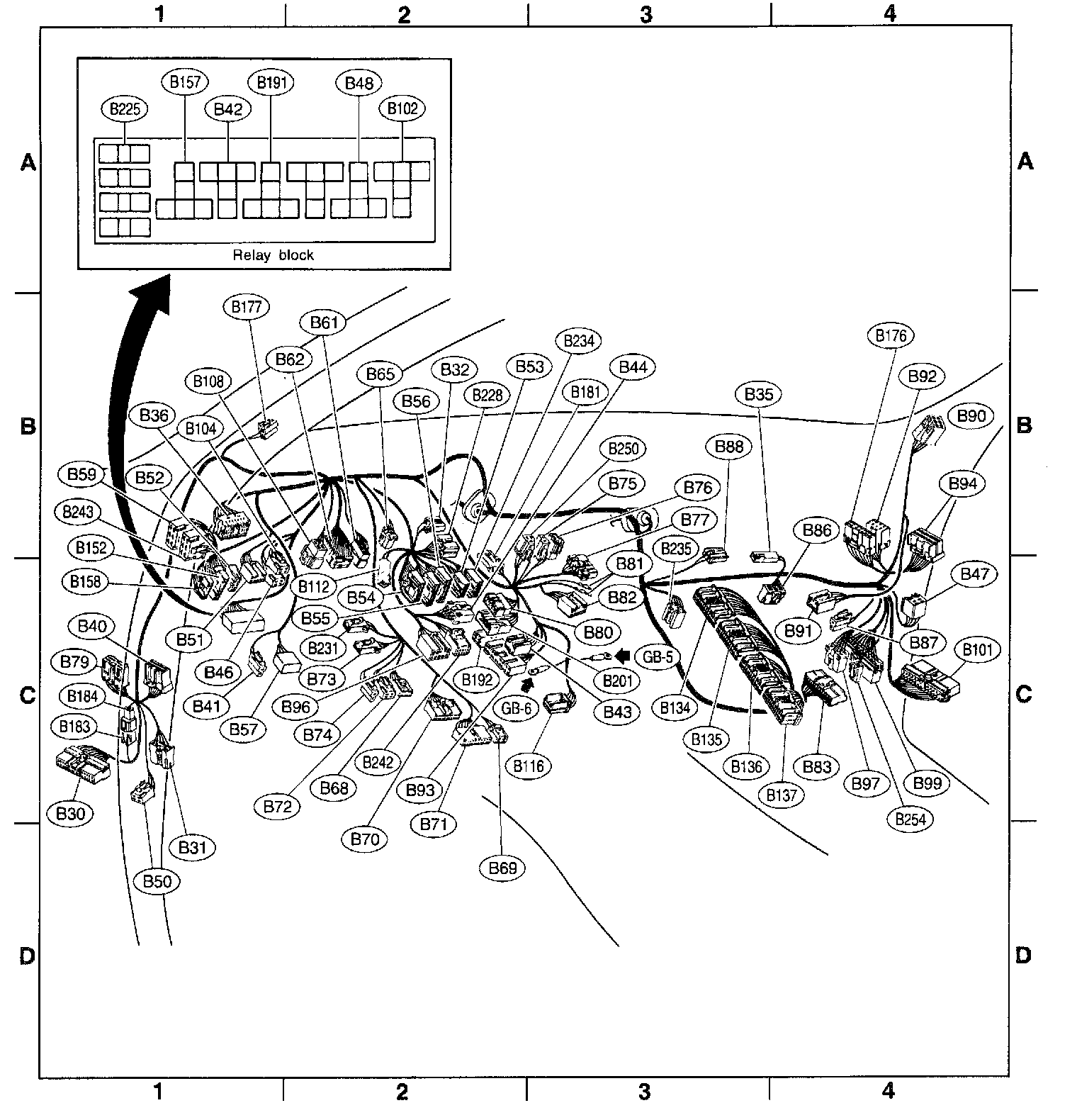

Connector Location:
