Rear End Wiring Harness and Rear Gate Harness
Rear End Wiring Harness and Rear Gate Harness

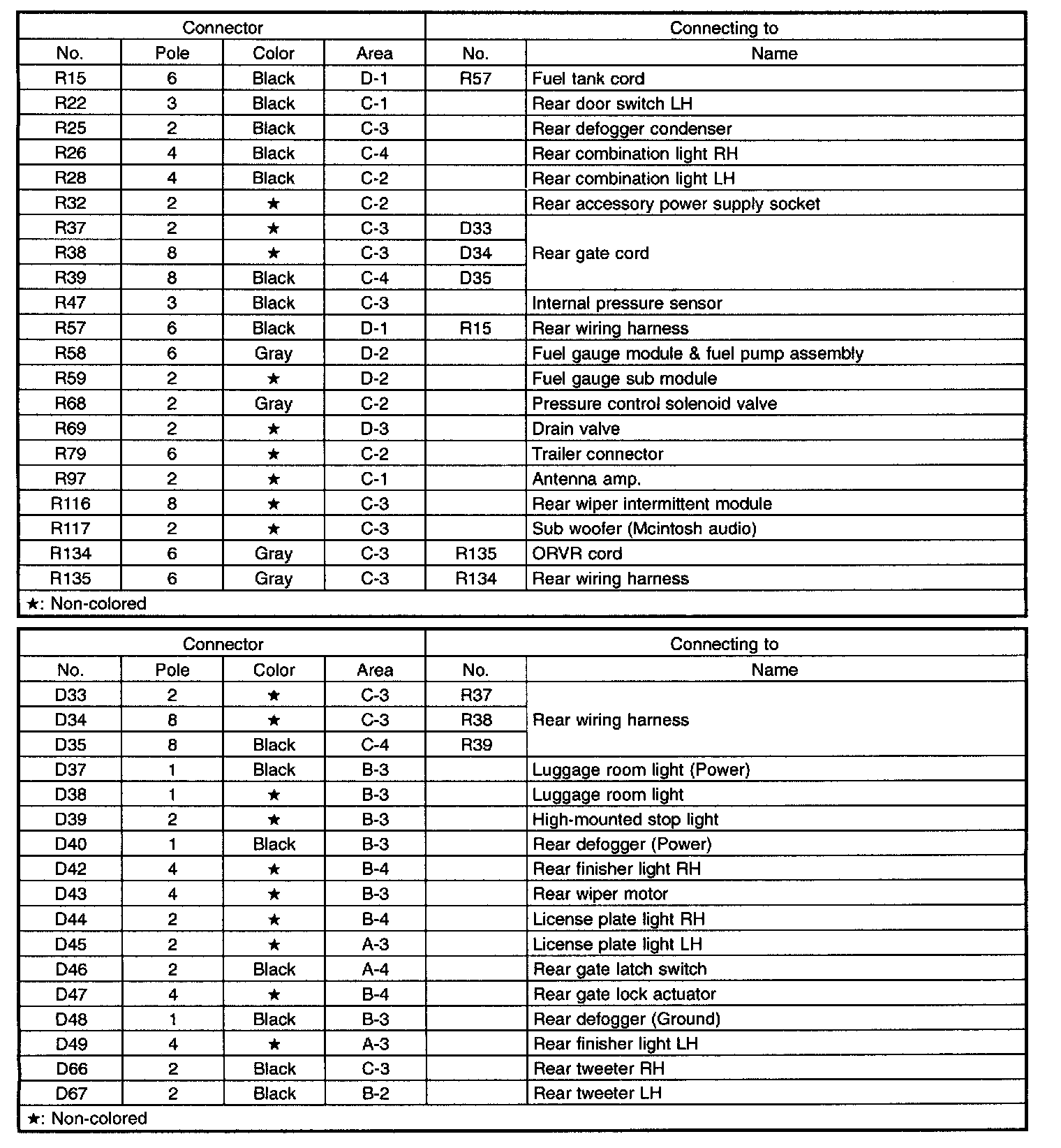

Connector Index:

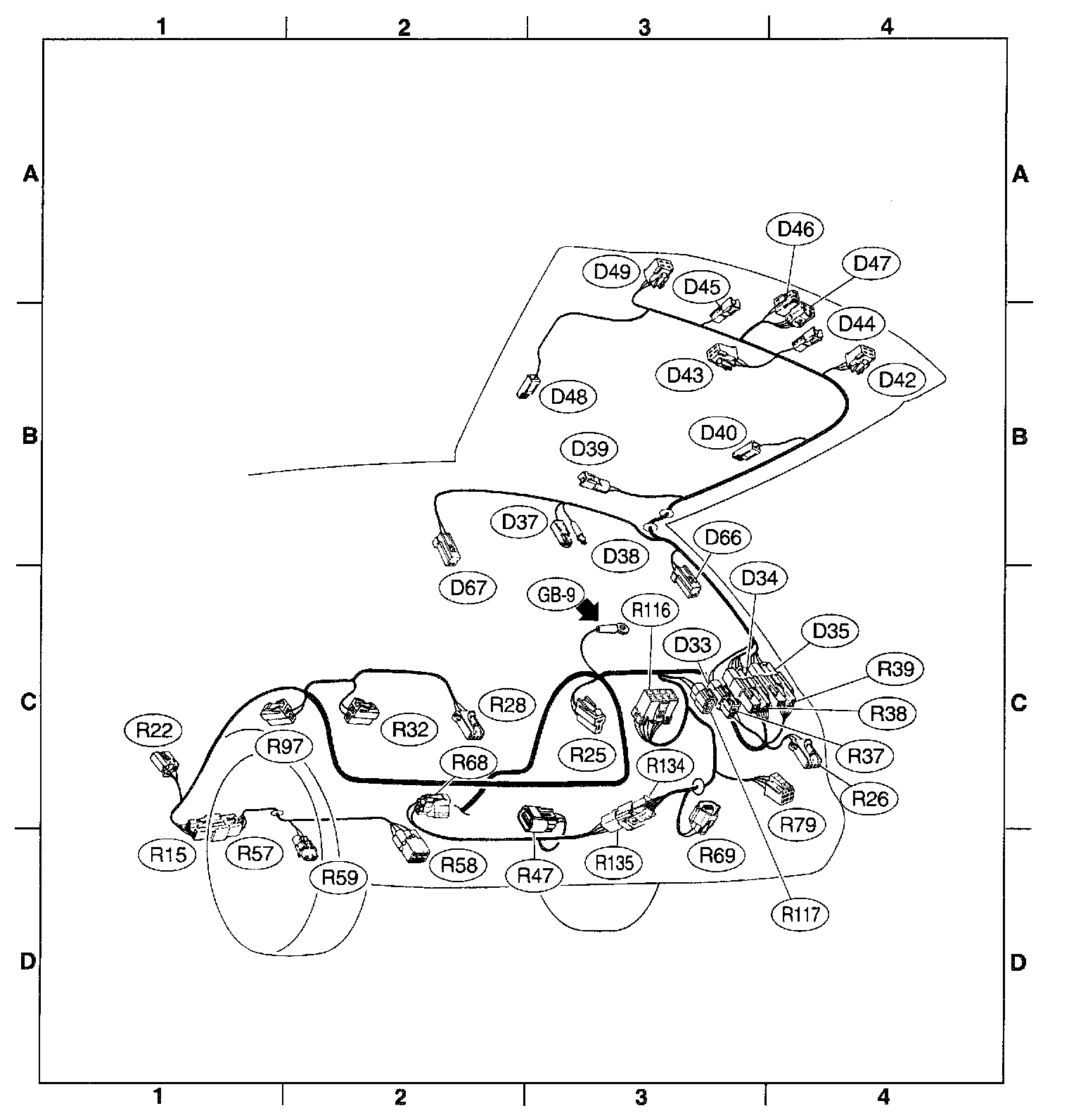

Connector Location:
