Home >> Subaru >> 2001 >> Legacy Outback LL Bean Ed. AWD F6-3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Trailer Connector

Trailer Connector

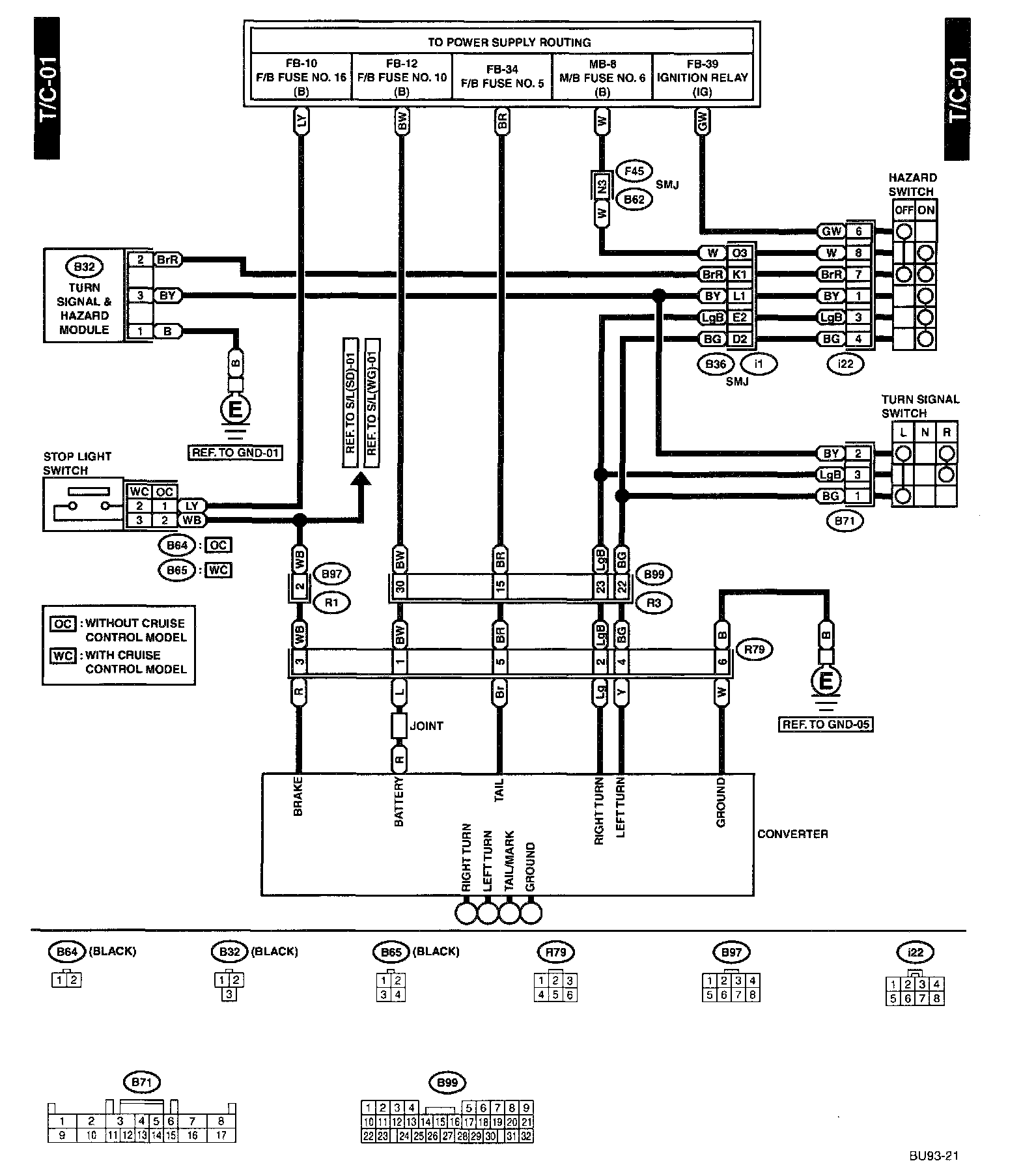

T/C-01 - Trailer Wire Harness (Option):
