Legacy Outback LL Bean Ed. AWD F6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Audio Mcintosh System
Audio Mcintosh System

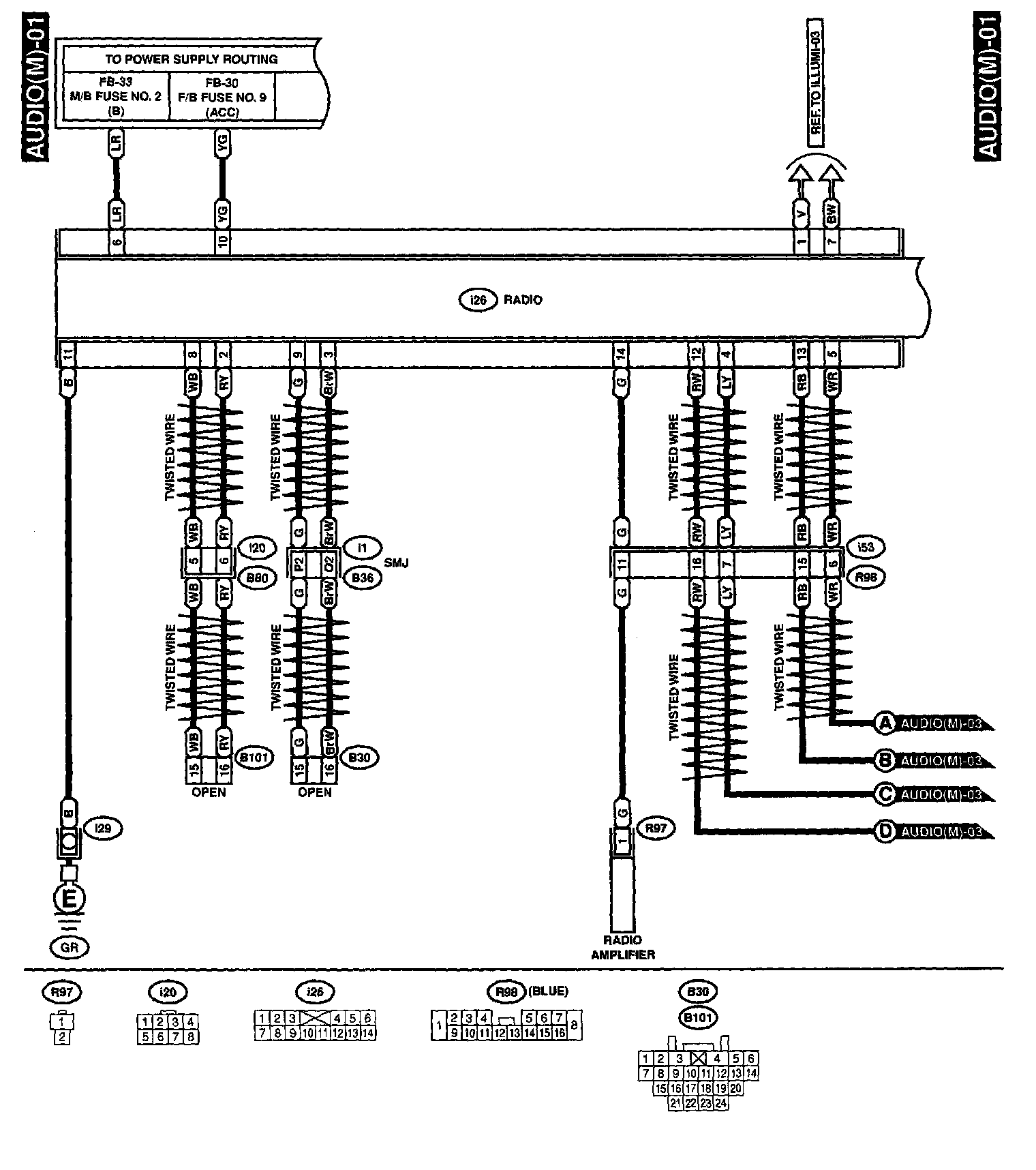

AUDIO(M)-01:

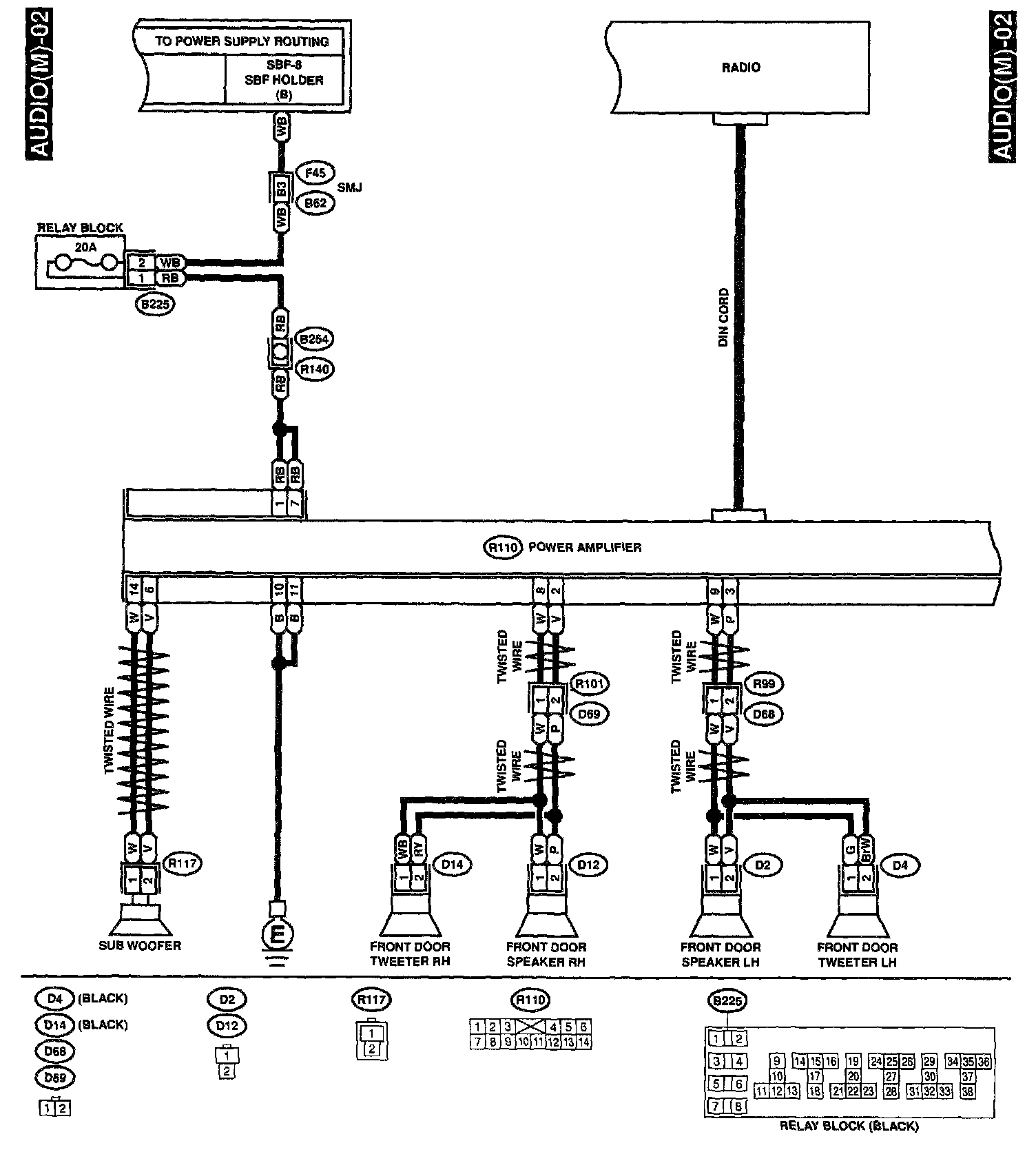

AUDIO(M)-02:

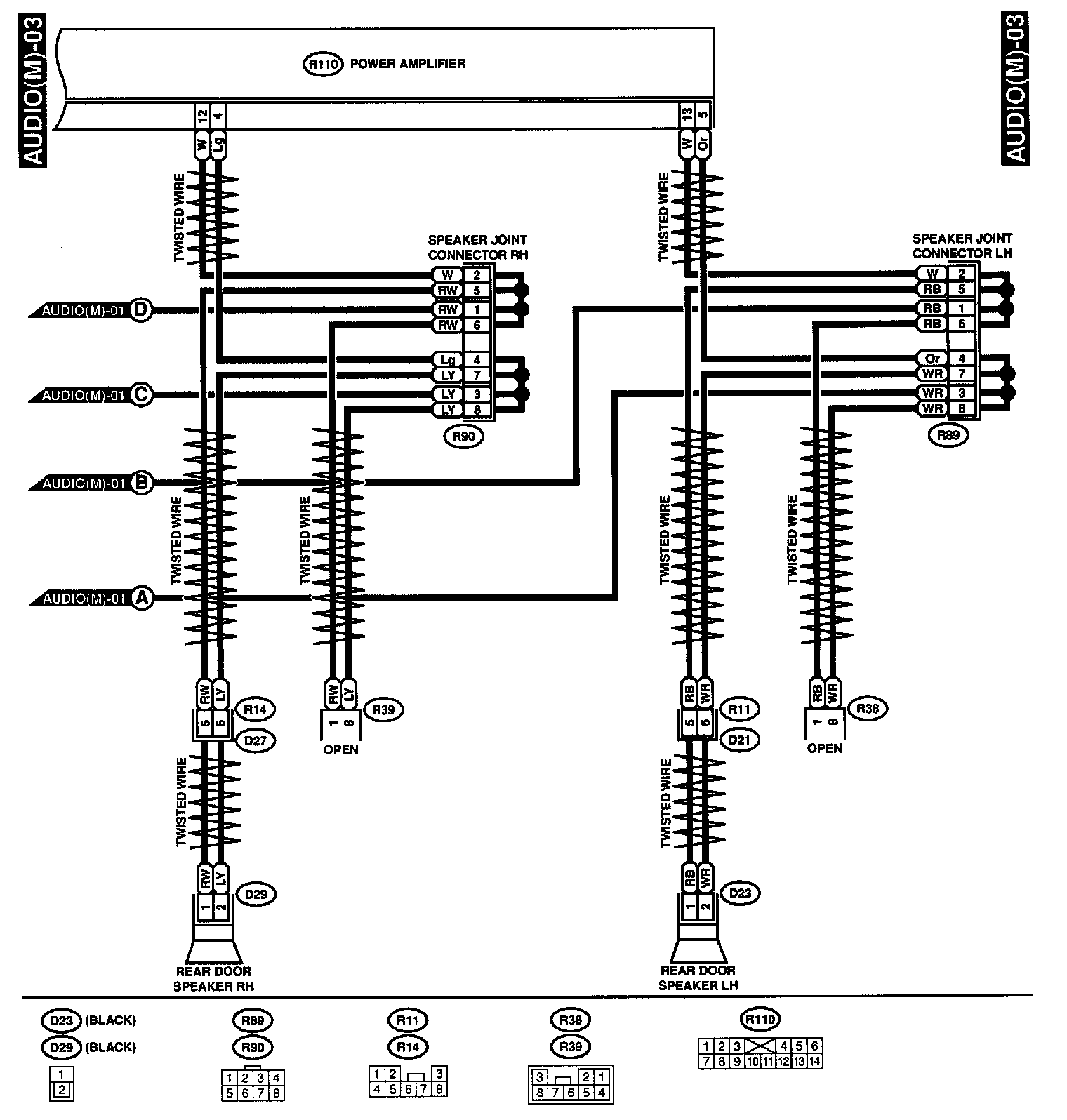

AUDIO(M)-03:
