Radiator Cooling Fan Motor
>>
Radiator Main Fan System
Radiator Main Fan System

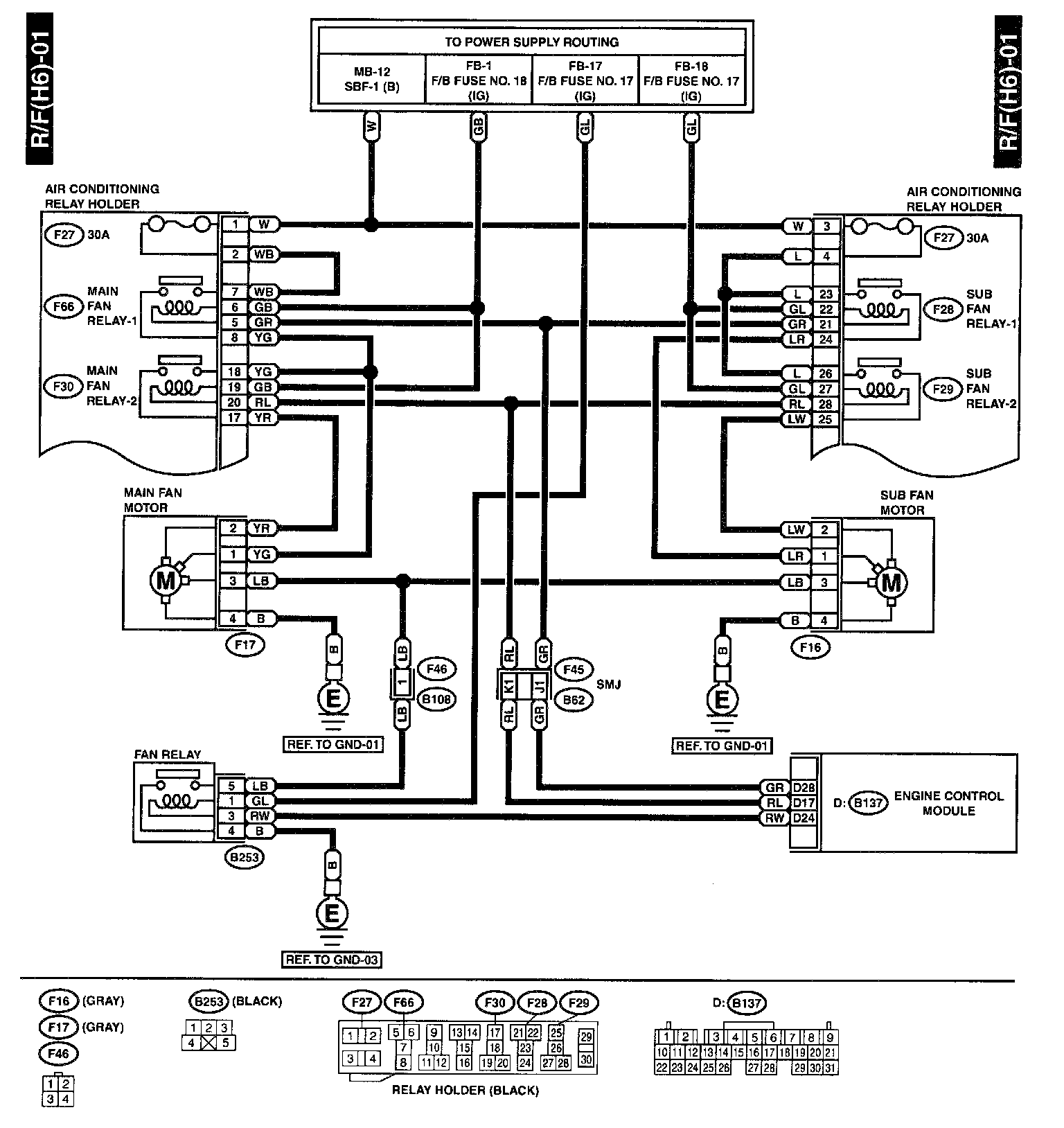

R/F (H6)-01 - Radiator Fan System:
