Auxiliary Power Outlet
Auxiliary Power Outlet

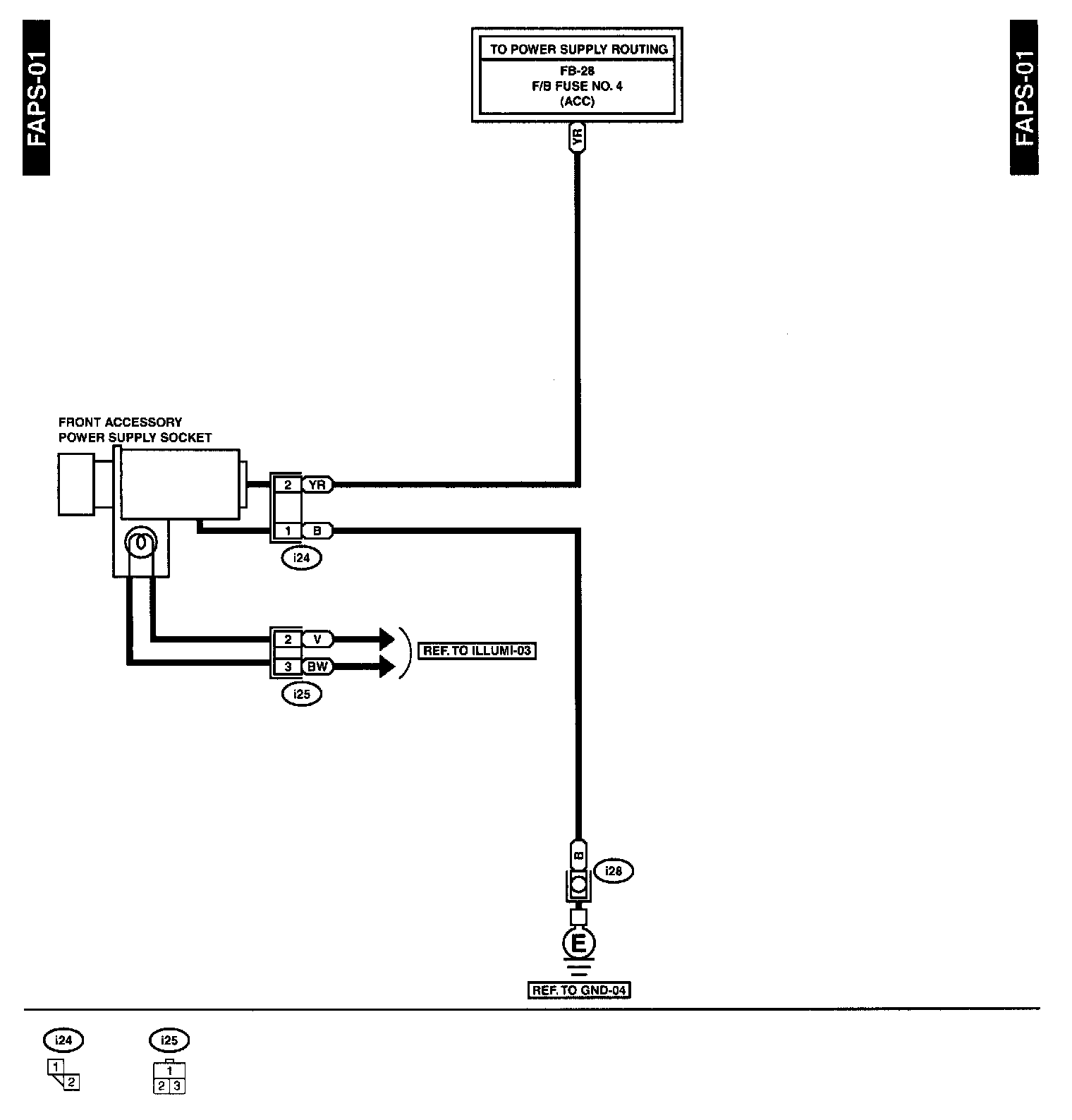

FAPS-01 - Front Accessory Power Supply System:

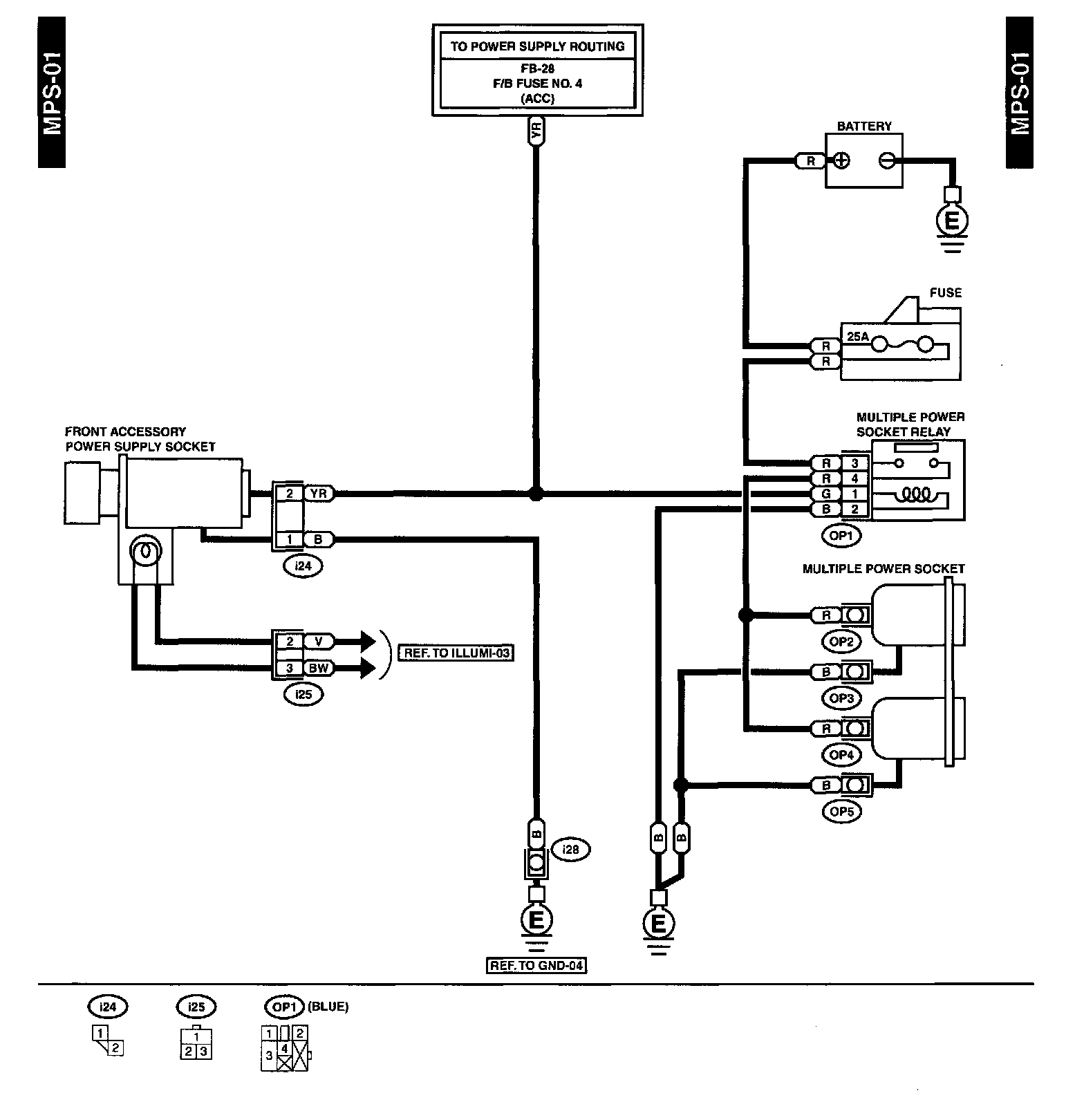

MPS-01 - Multiple Power Socket System:

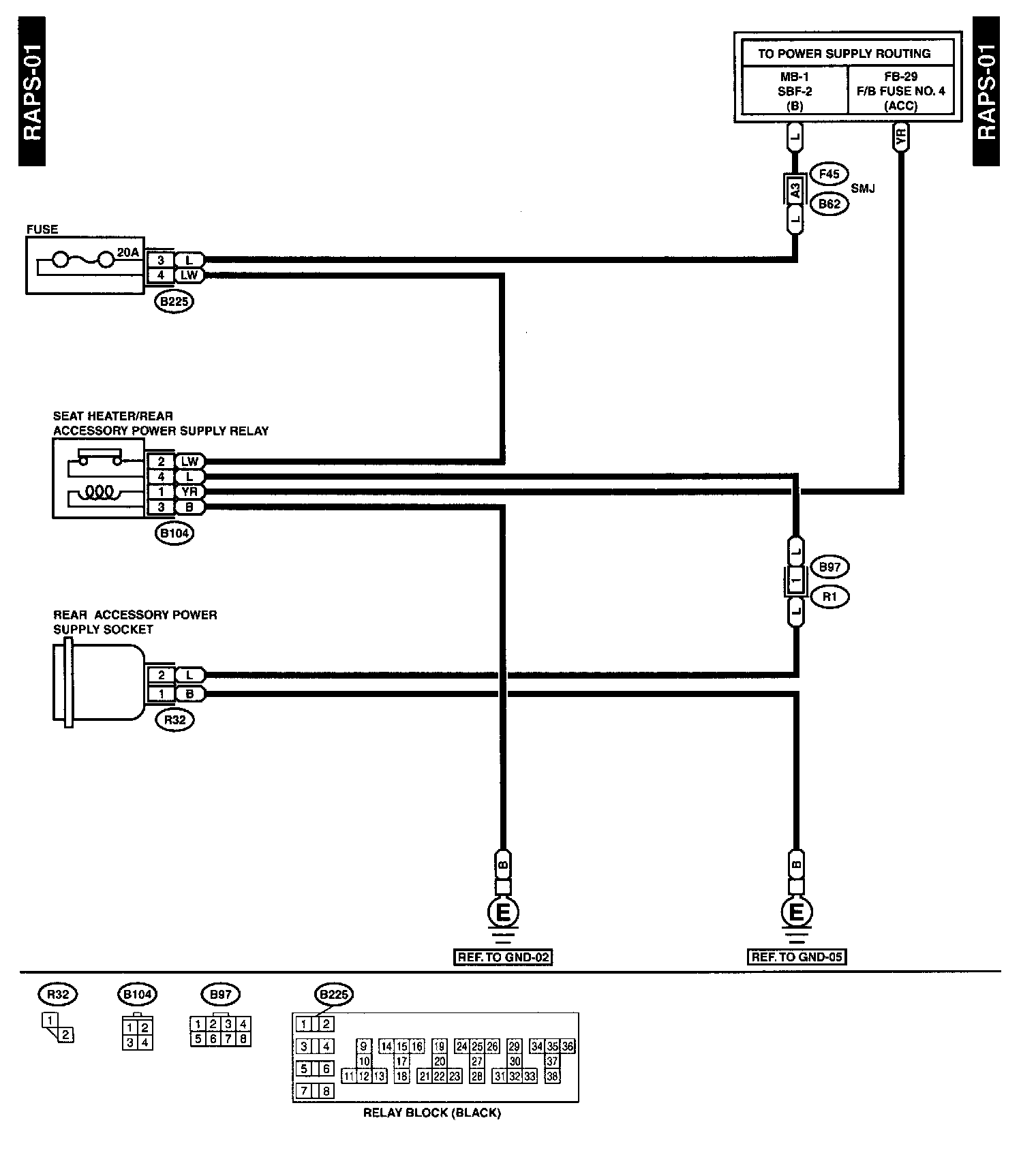

RAPS-01 - Rear Accessory Power Supply System:
