Legacy Outback LL Bean Ed. AWD F6-3.0L
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Diagnosis By Symptom
>>
Check Power Supply
Check Power Supply

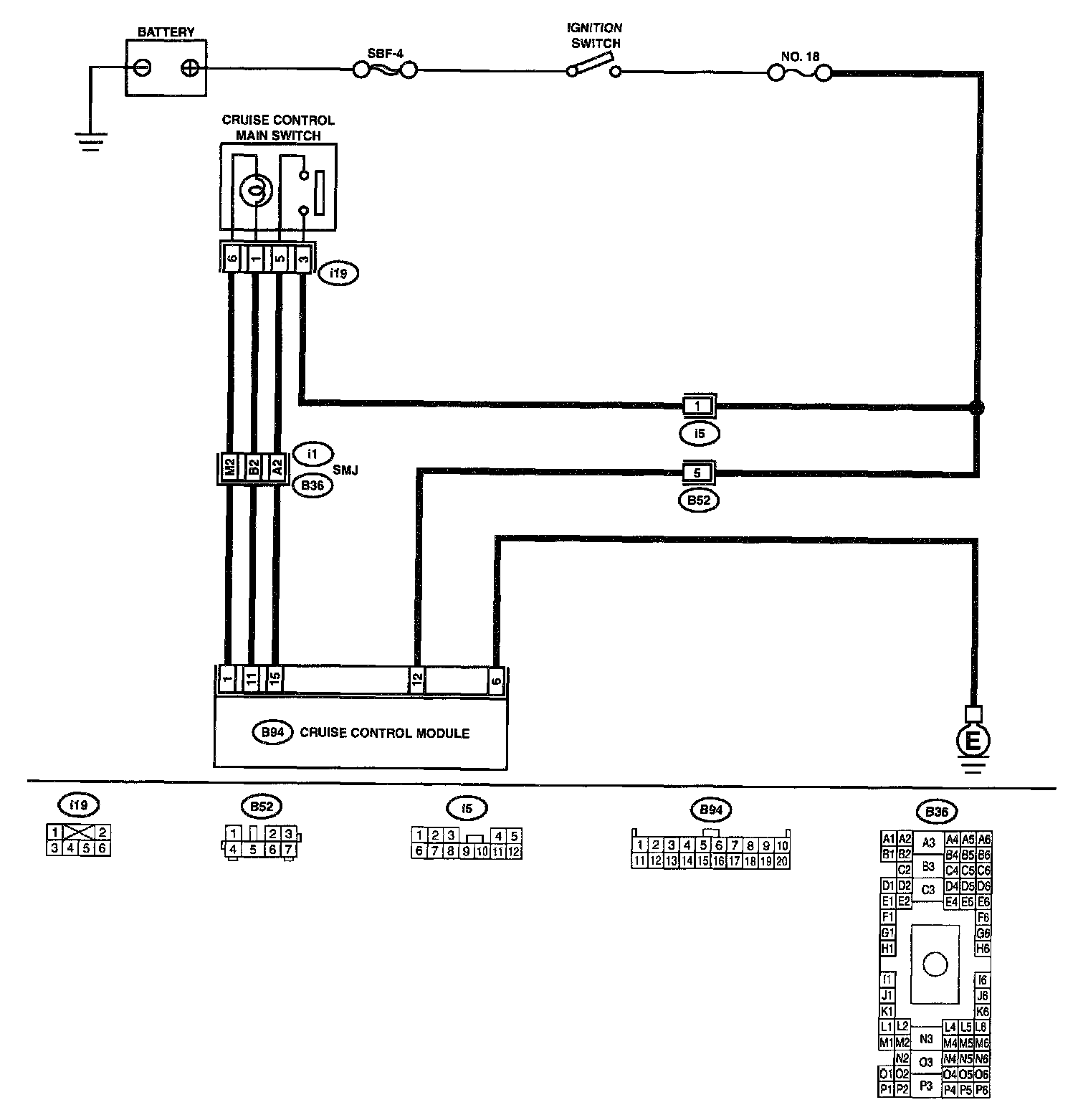

Wiring Diagram:

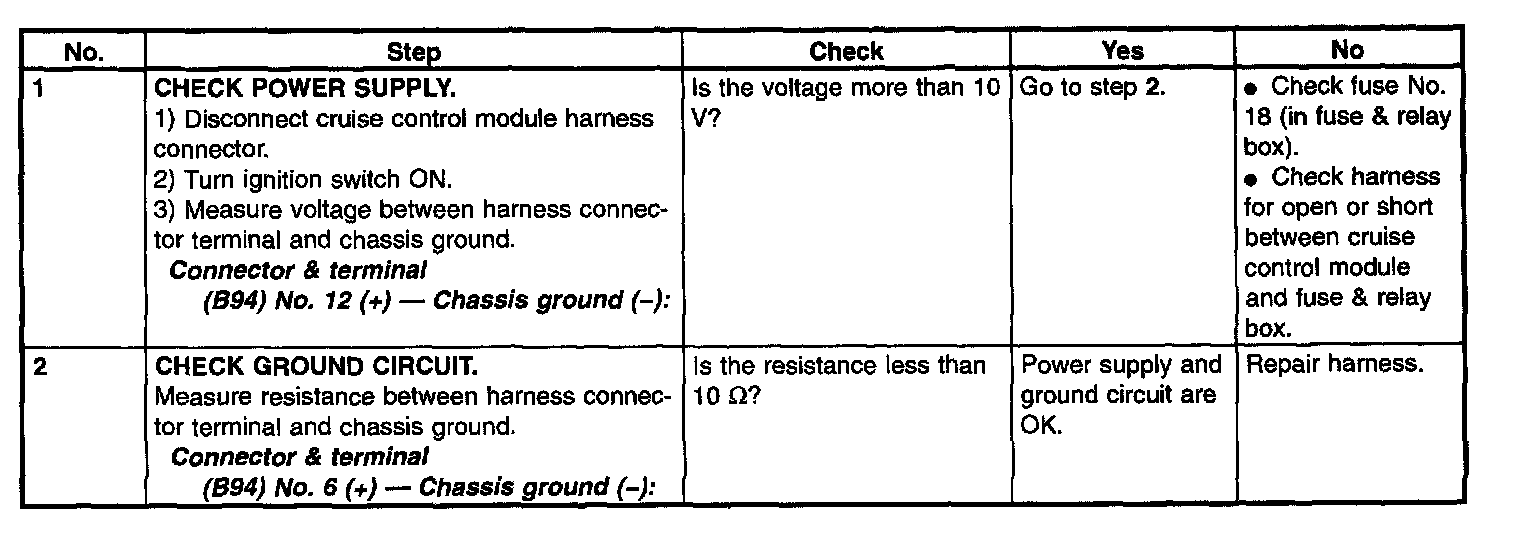

Step 1 - 2:
