Home >> Subaru >> 2001 >> Legacy Outback LL Bean Ed. AWD F6-3.0L >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom >> Check Clutch Switch (MT)

Check Clutch Switch (MT)

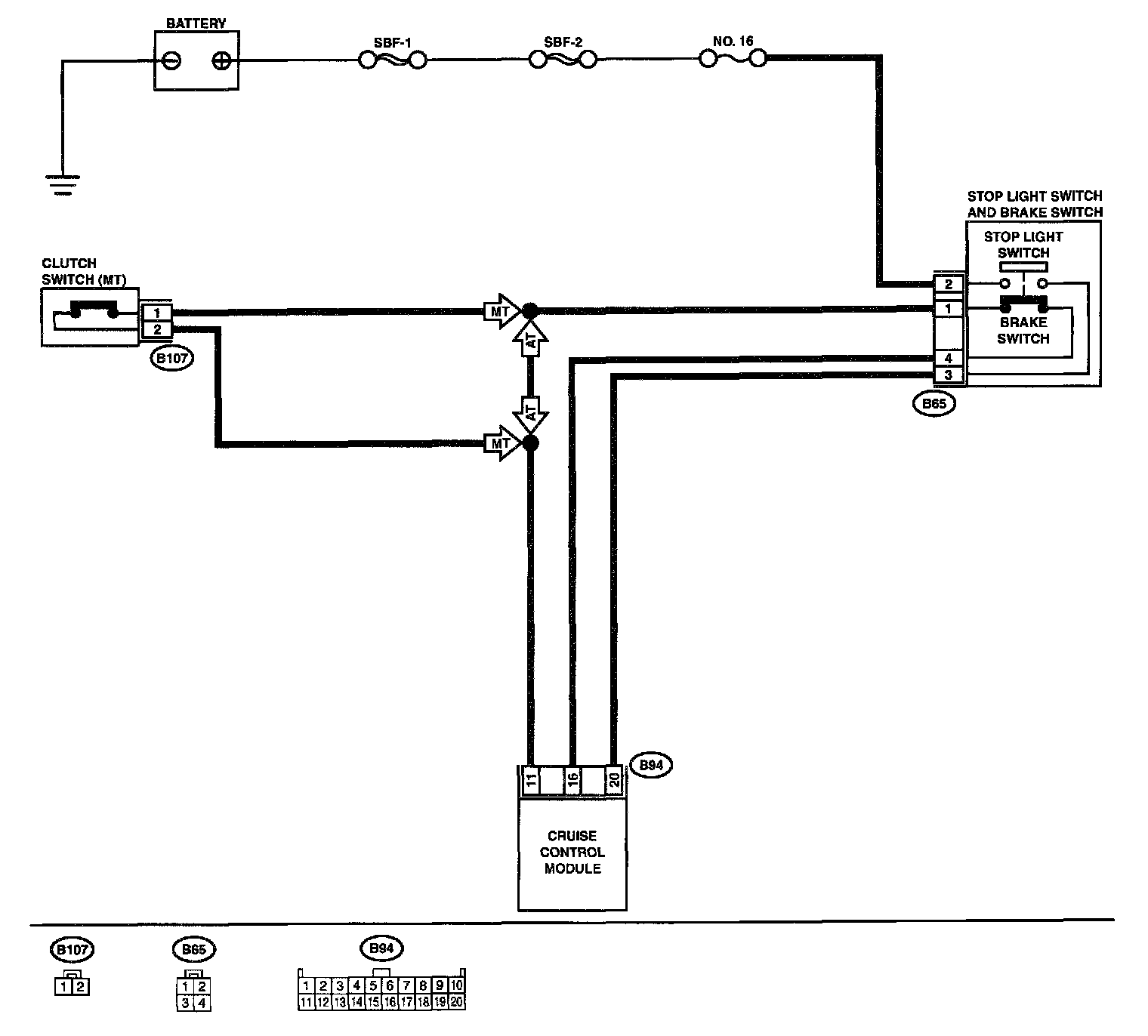

Wiring Diagram:

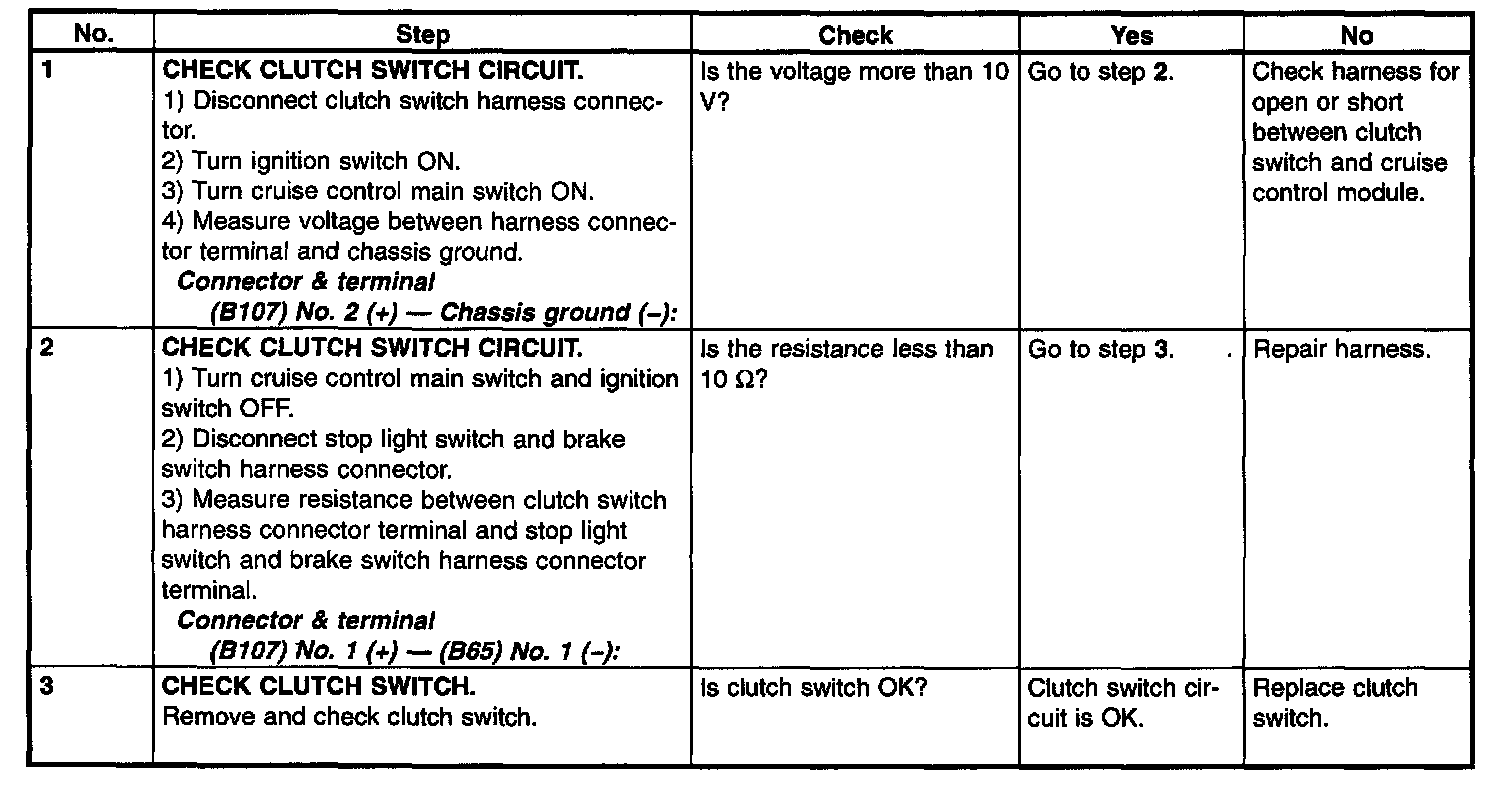

Step 1 - 3:
