Cruise Control Command Switch

Cruise Control Command Switch

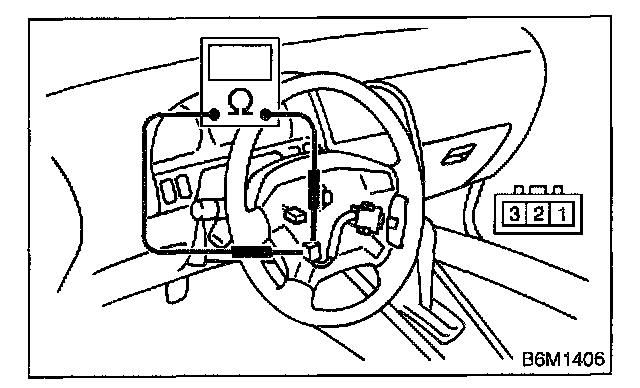

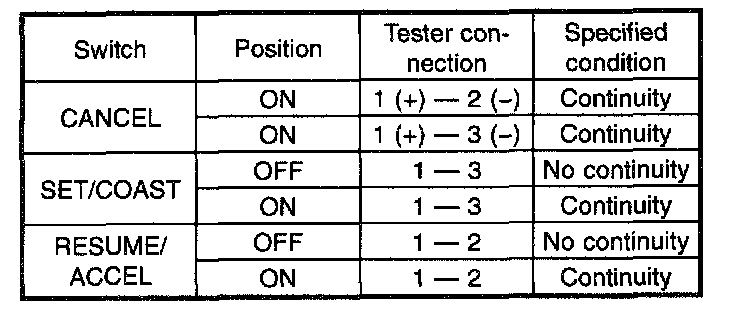

Check continuity between cruise control command switch terminals.
If NG, replace cruise control command switch.
