Parking Brake Lever: Service and Repair

REMOVAL
1. Lift-up the vehicle.
2. Remove rear tire and wheel.
3. Remove rear cushion.
4. Loosen parking cable adjusting nut and console bracket.

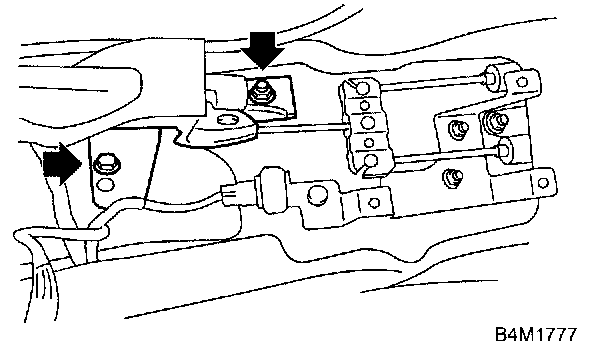

5. Remove parking brake lever.

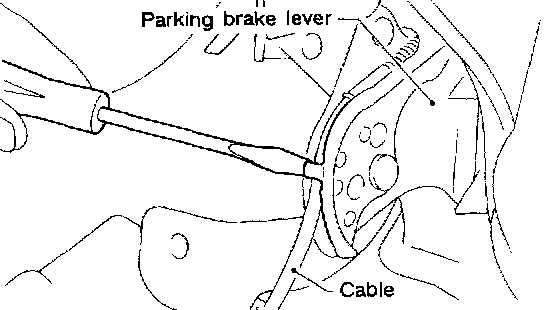

6. Unbend parking brake lever pawls and remove cable.

INSTALLATION
Install in the reverse order of removal.
Tightening torque:
Parking brake lever:
18 Nm (1.8 kgf-m, 13.0 ft. lbs.)
Adjusting nut:
5.9 Nm (0.6 kgf-m, 4.3 ft. lbs.)

NOTE:
- Be sure to pass cable through guide inside the tunnel.
- Be sure to adjust the lever stroke.
