Parking Brake Cable: Service and Repair

REMOVAL
1. Lift-up vehicle.
2. Remove rear tires and wheels.
3. Remove rear cushion.
4. Remove console box from front floor.

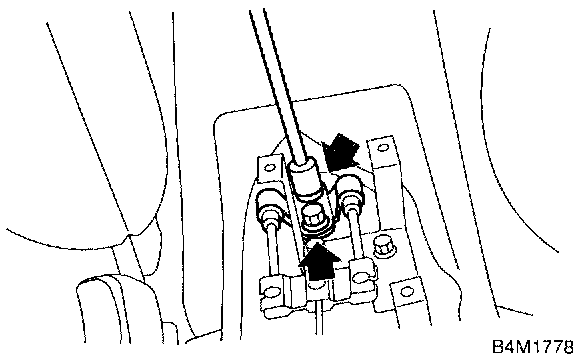

5. Loosen parking cable adjusting nut and console bracket.





6. Remove parking brake lever.





7. Unbend parking brake lever pawls and remove cable.





8. Roll up floor mat and remove clamps.
9. Remove equalizer cover.

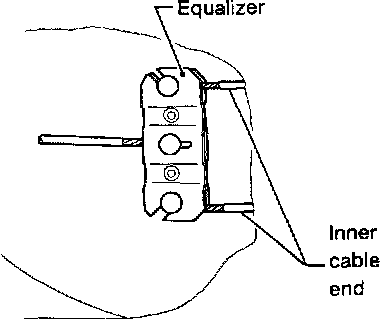

10. Remove inner cable end from equalizer.
11. Pull out parking brake cable from rear brake.
12. Pull out clamp from rear brake.

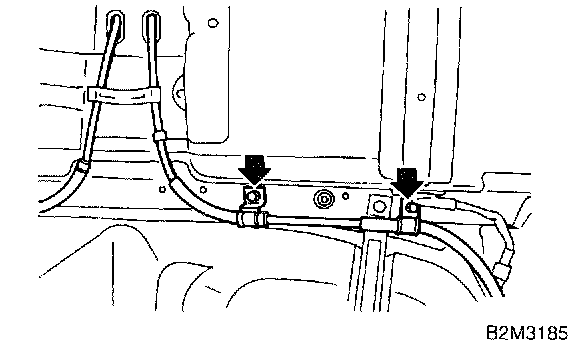

13. Remove bolt and bracket from trailing link bracket.





14. Remove bolt and clamp from rear floor.
15. Detach grommet from rear floor.
16. Remove cable assembly from cabin by forcibly pulling it backward.
17. Detach parking brake cable from cable guide at rear trailing link.

INSTALLATION
Install (new) parking brake assembly in the reverse order of removal.

NOTE:
- Be sure to pass cable through cable guide inside the tunnel.
- Be sure to adjust the lever stroke.
