Brake Drum: Testing and Inspection

INSPECTION
1. If the inside surface of brake drum is streaked, correct the surface. And, if it is unevenly worn, taperingly streaked, or the outside surface of brake drum is damaged, correct or replace it.

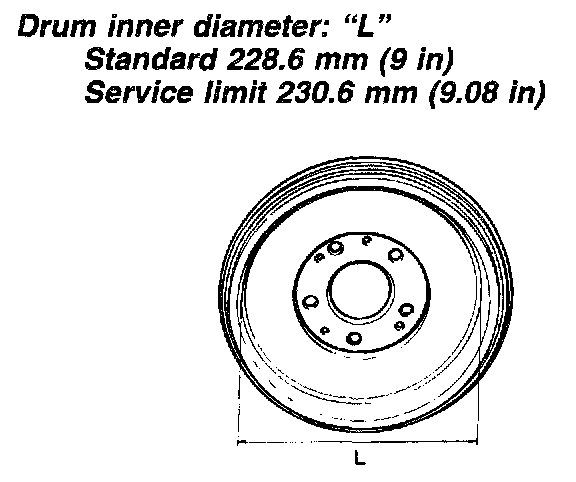

2. Measure the drum inner diameter.
