Rear

REMOVAL





1. Remove lock pin.
2. Raise caliper body.

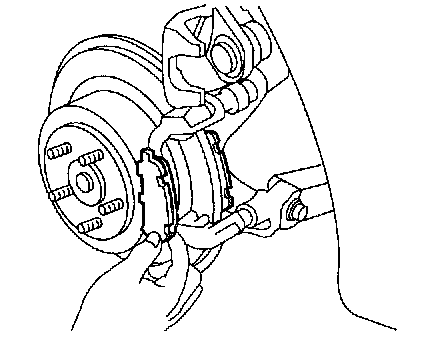

3. Remove pad from support.





NOTE: If brake pad is difficult to remove, use the same procedure as for front disc brake pad.

INSTALLATION
1. Apply thin coat of Molykote AS880N (Part No. 26298AC000) to the frictional portion between pad and pad clip.
2. Install pad on support.
3. Install caliper body on support.
Tightening torque:
39 Nm (4.0 kgf-m, 28.9 ft. lbs.)

NOTE: If it is difficult to push piston during pad replacement, loosen air bleeder to facilitate work.
