Brake Pedal Assy: Service and Repair

REMOVAL
1. MT MODEL
1. Remove steering column.
2. Disconnect connectors from stop light and clutch switches.

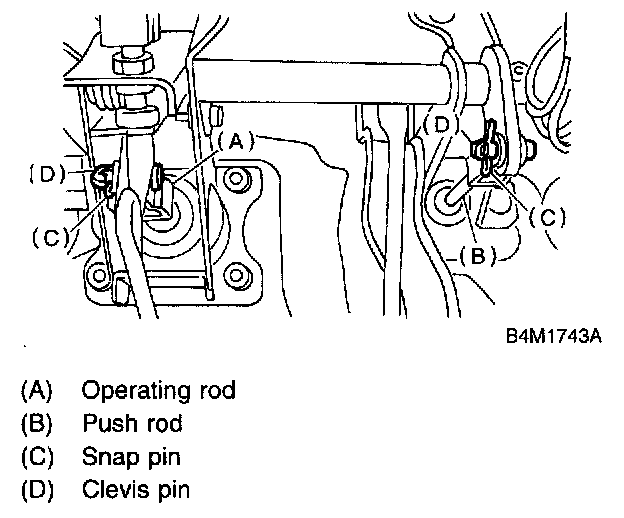

3. Remove snap pins which secure lever to push rod and operating rod.





4. Remove clevis pins which secure lever to push rod and operating rod.





5. Remove nut which secures clutch master cylinder.
6. Remove bolts and nuts which secure brake and clutch pedals, and remove pedal assembly.

2. AT MODEL
1. Disconnect ground cable from battery.
2. Remove instrument panel lower cover from instrument panel.
3. Remove clevis pin which secures brake pedal to brake booster operating rod. Also disconnect stop light switch connector.

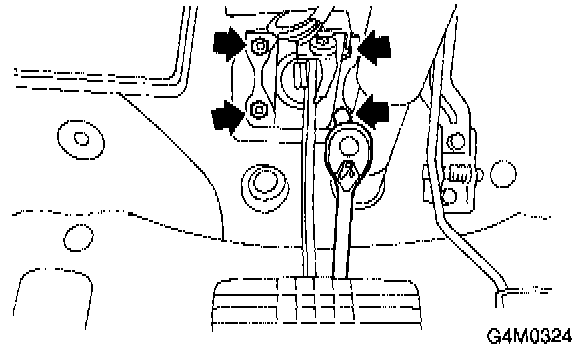

4. Remove two bolts and four nuts which secure brake pedal to pedal.

INSTALLATION
1. Install in the reverse order of removal.

CAUTION:
- If cable clamp is damaged, replace it with a new one.
- Never fail to cover outer cable end with boot.
- Be careful not to kink accelerator cable.
- Always use new clevis pins.

2. Adjustment of clutch pedal refer to procedure below, under Assembly.
3. Inspect after pedal installation refer to Testing and Inspection.

DISASSEMBLY

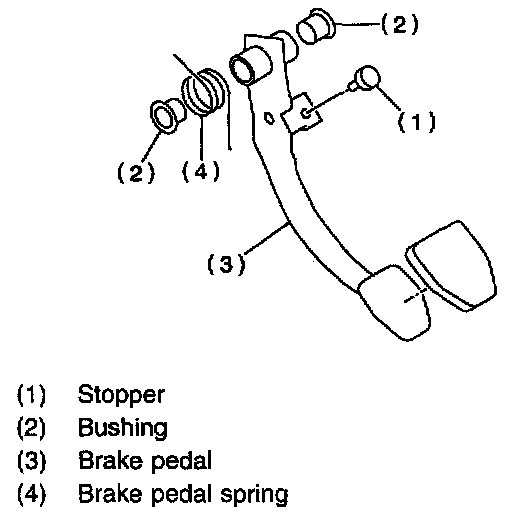

1. MT MODEL
1. Remove the brake switch.
2. Remove the clutch pedal.





3. Remove the clutch master cylinder bracket.





4. Remove bush, spring and stopper.
5. Remove the brake pedal pad.

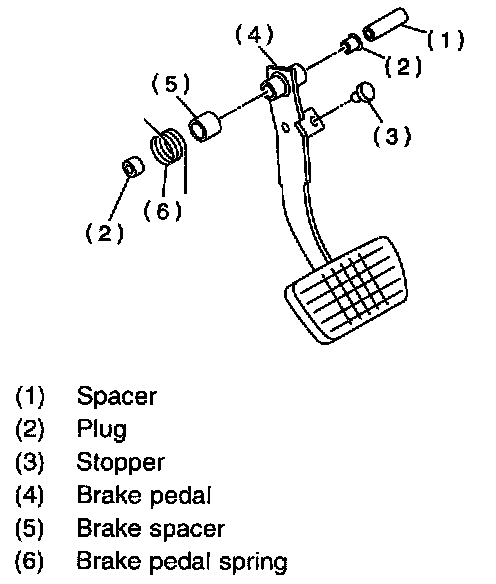

2. AT MODEL
1. Remove the brake switch.





2. Unbolt, and then remove the brake pedal.





3. Remove bush, spacer and spring.
4. Remove the brake pedal pad.

ASSEMBLY

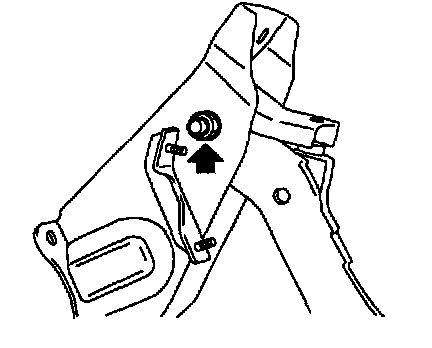

1. Attach stop light switch, etc. to pedal bracket temporarily.
2. Clean inside of bores of clutch pedal and brake pedal, apply grease, and set bushings into bores.

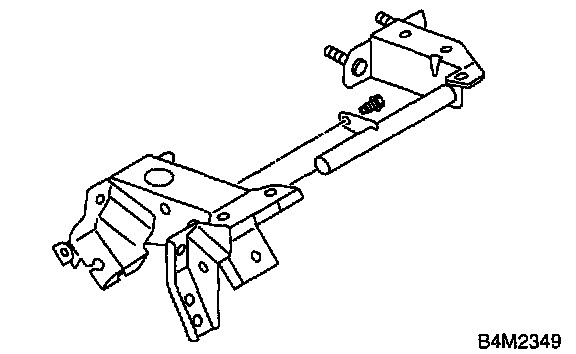

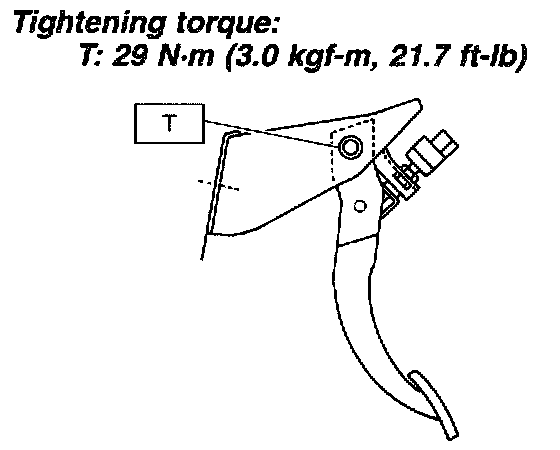

3. Align bores of pedal bracket, clutch pedal and brake pedal, attach brake pedal return spring and clutch pedal effort reducing spring (vehicle with hill holder), and then install pedal bolt.





NOTE: Clean up inside of bushings and apply grease before installing spacer.

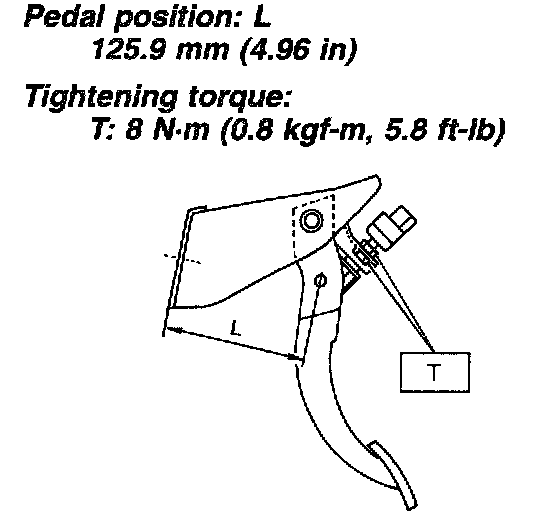

4. Set brake pedal position by adjusting position of Stop light switch.
