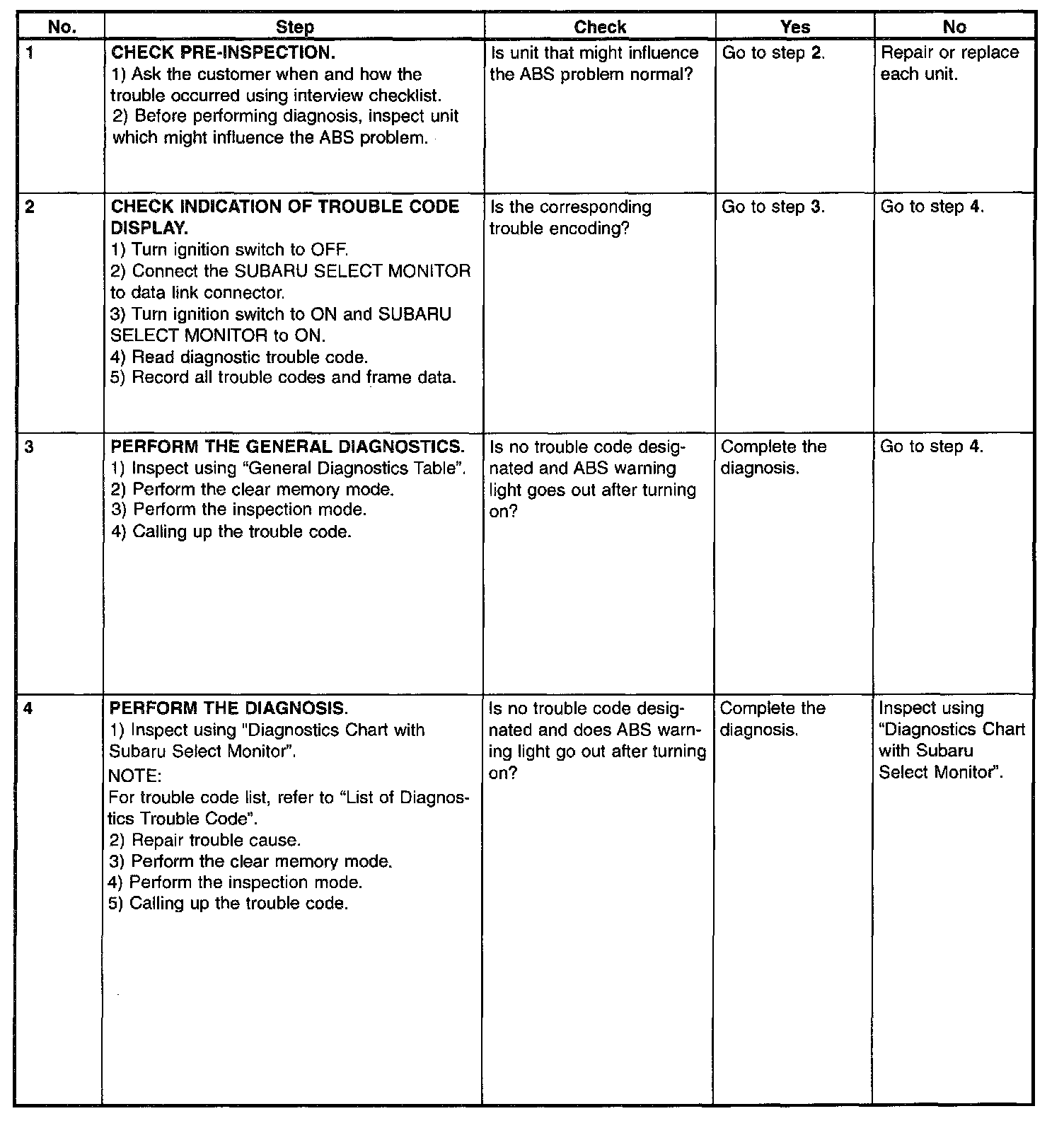

Diagnostic Chart With Select Monitor

WITH SUBARU SELECT MONITOR





CAUTION: Remove foreign matter (dust, water, etc.) from the ABSCM&H/U connector during removal and installation.

NOTE:
- To check harness for broken wires or short circuits, shake it while holding it or the connector.
- Check list for interview.
