Trouble Code Does Not Appear

TROUBLE CODE DOES NOT APPEAR
DIAGNOSIS:
- Diagnosis circuit is open.
TROUBLE SYMPTOM:
- The ABS warning light turns on or off normally but the start code cannot be read out in the diagnostic mode.

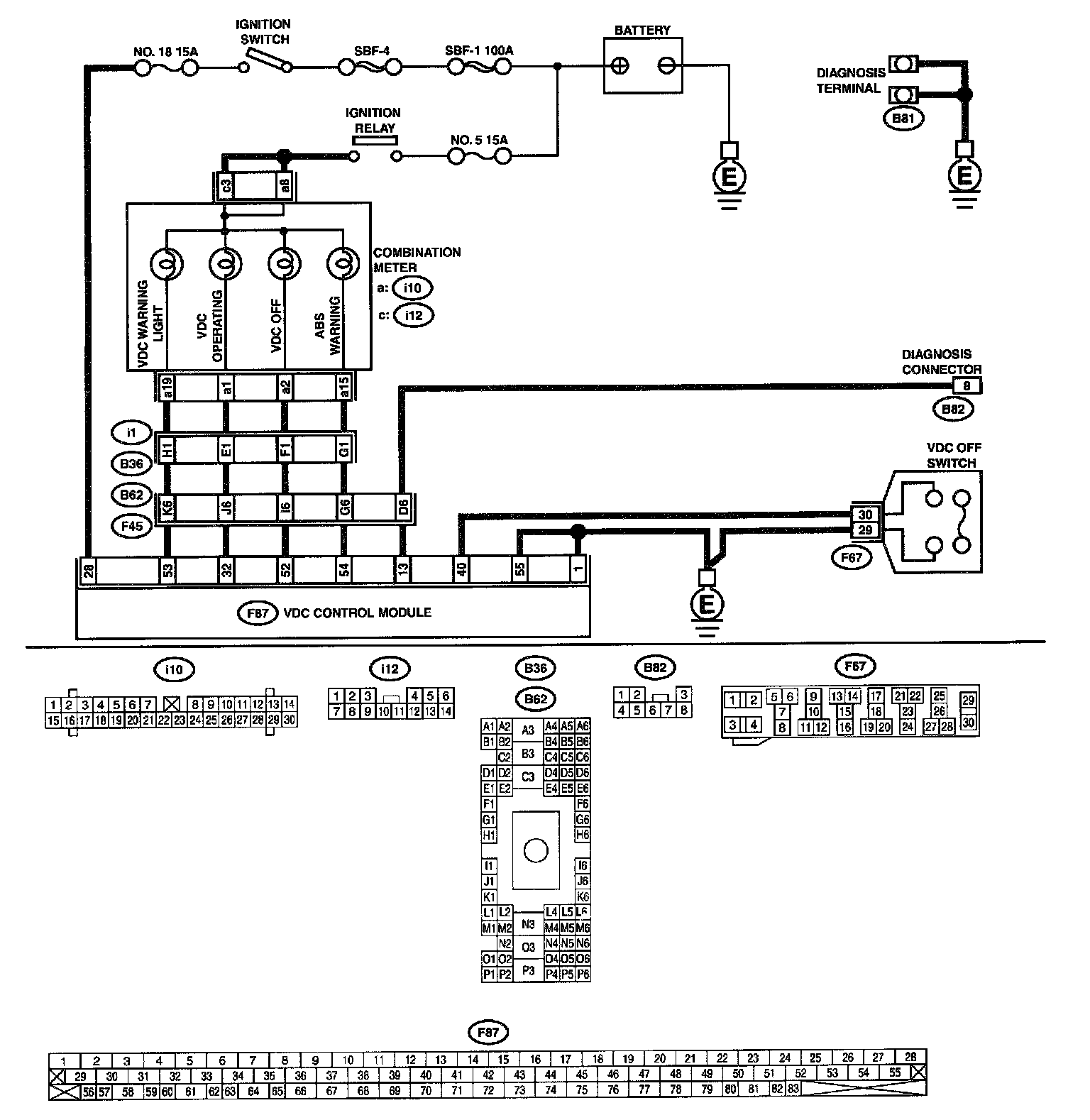

WIRING DIAGRAM





PROCEDURE
