ABS/VDC Warning Light Does Not Come on

ABS WARNING LIGHT, VDC WARNING LIGHT, VDC OPERATING INDICATOR LIGHT OR VDC OFF INDICATOR LIGHT DOES NOT COME ON.

DIAGNOSIS:
- ABS warning light circuit is open or shorted.
- VDC warning light circuit is open or shorted.
- VDC operating indicator light circuit is open or shorted.
- VDC OFF indicator light circuit is open or shorted.

TROUBLE SYMPTOM:
- When ignition switch is turned ON (engine OFF), ABS warning light, VDC warning light, VDC operating indicator light or VDC OFF indicator light does not come on.

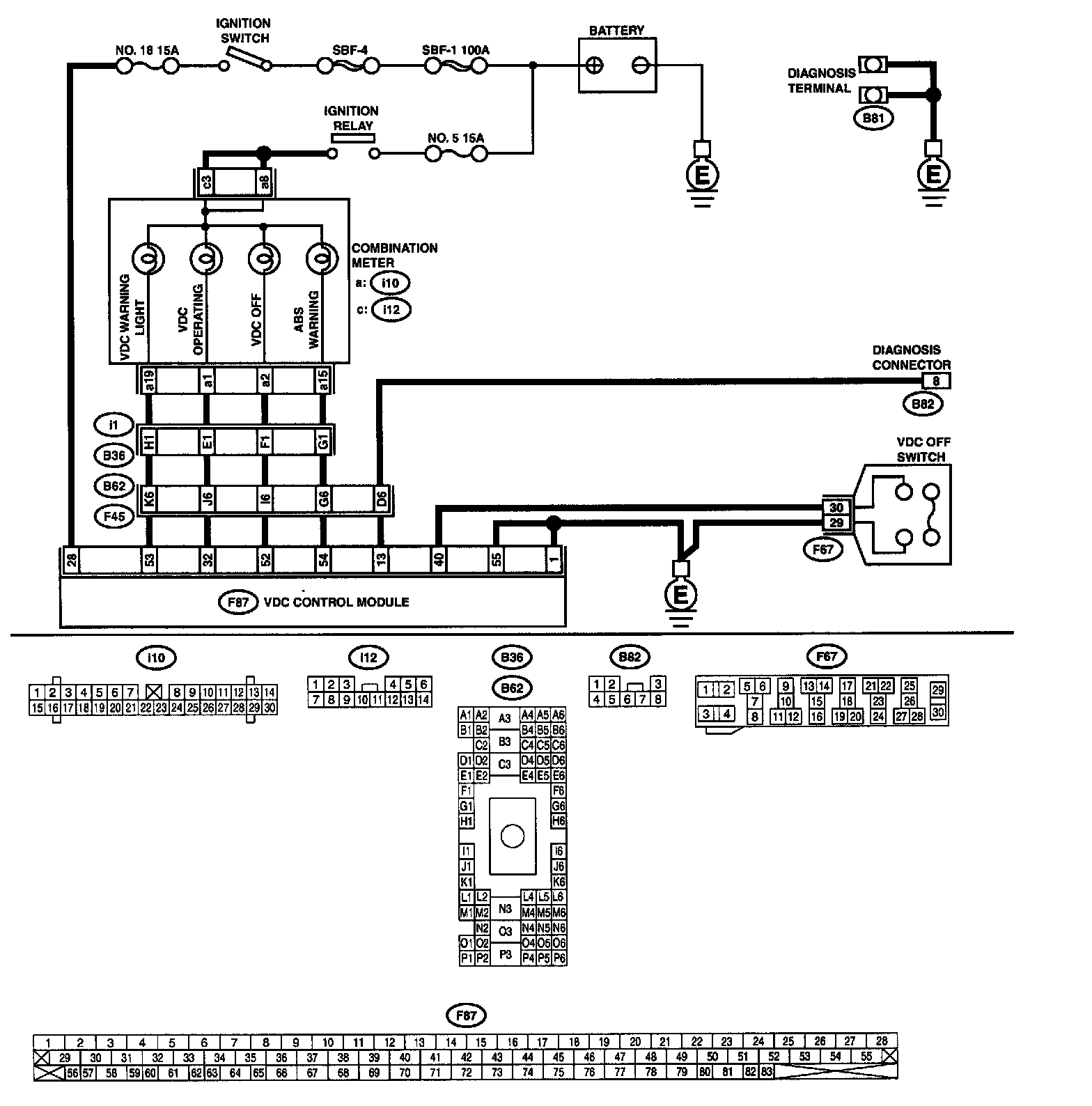

WIRING DIAGRAM

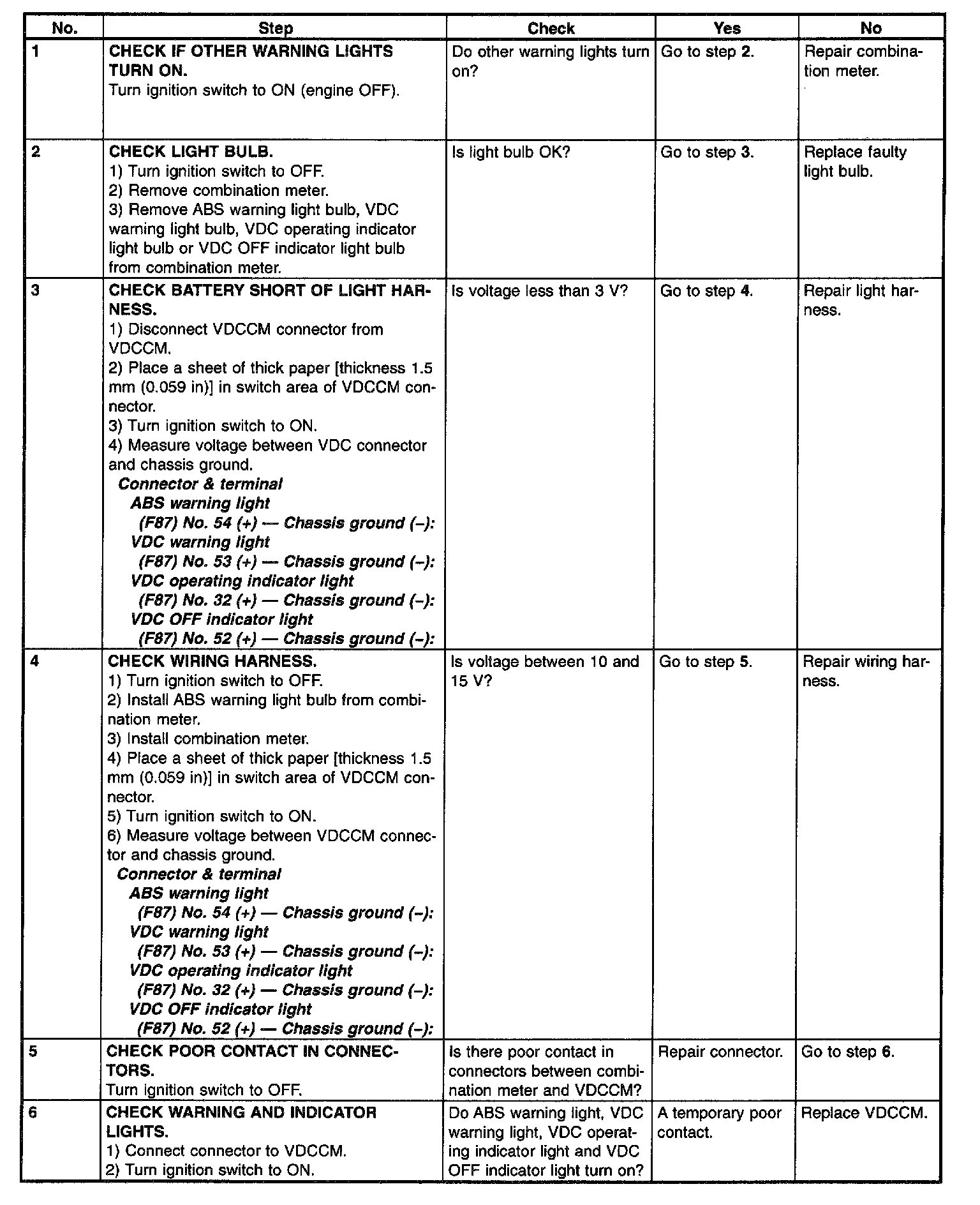

PROCEDURE
