ABS and VDC Warning Light Does Not GO Off

ABS AND VDC WARNING LIGHTS DO NOT GO OFF.

DIAGNOSIS:
- ABS warning light circuit is open or shorted.
- VDC warning light circuit is open or shorted.
- Diagnosis circuit is open.

TROUBLE SYMPTOM:
- When starting the engine and while ABS and/or VDC warning light is kept ON.

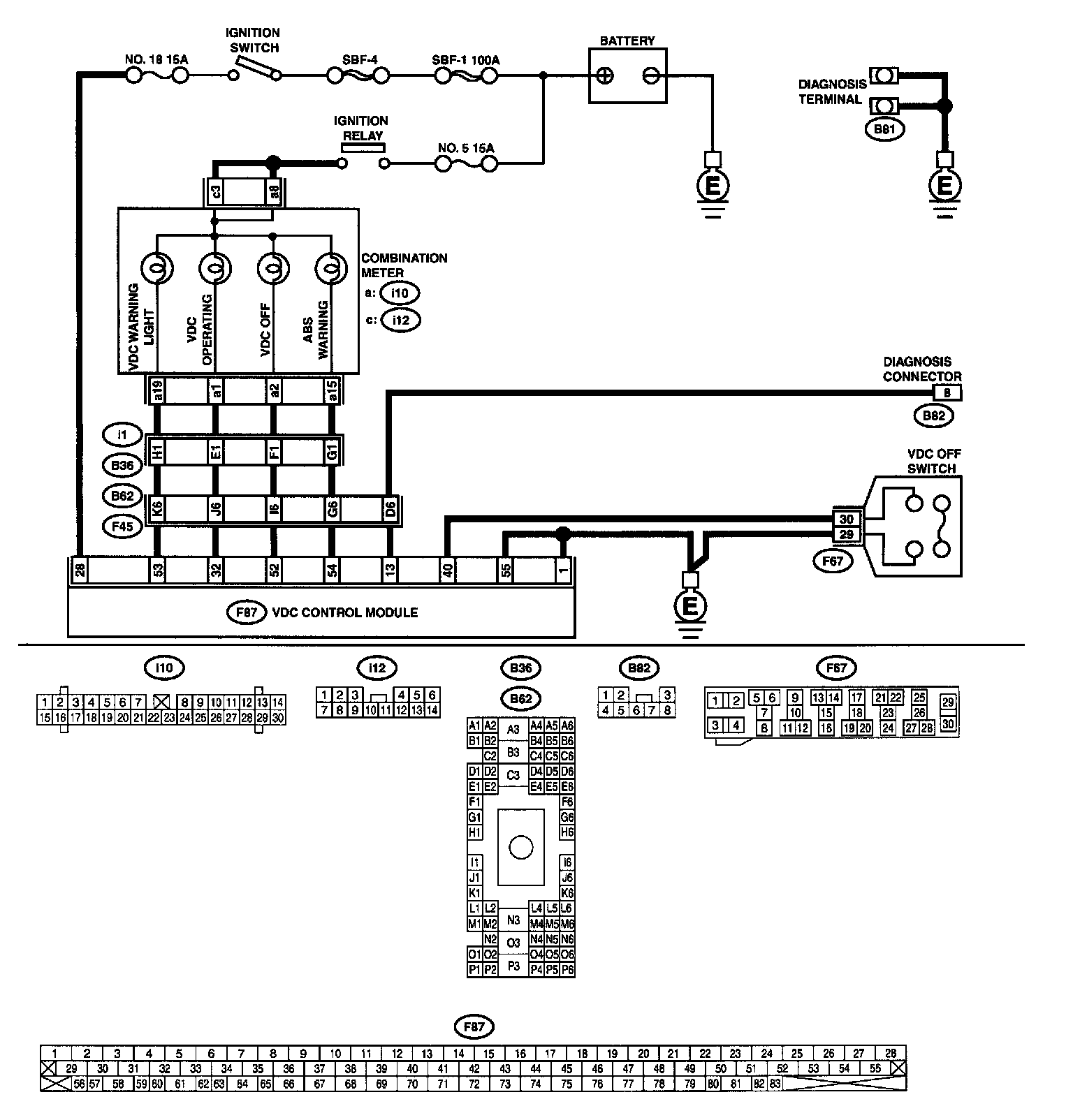

WIRING DIAGRAM

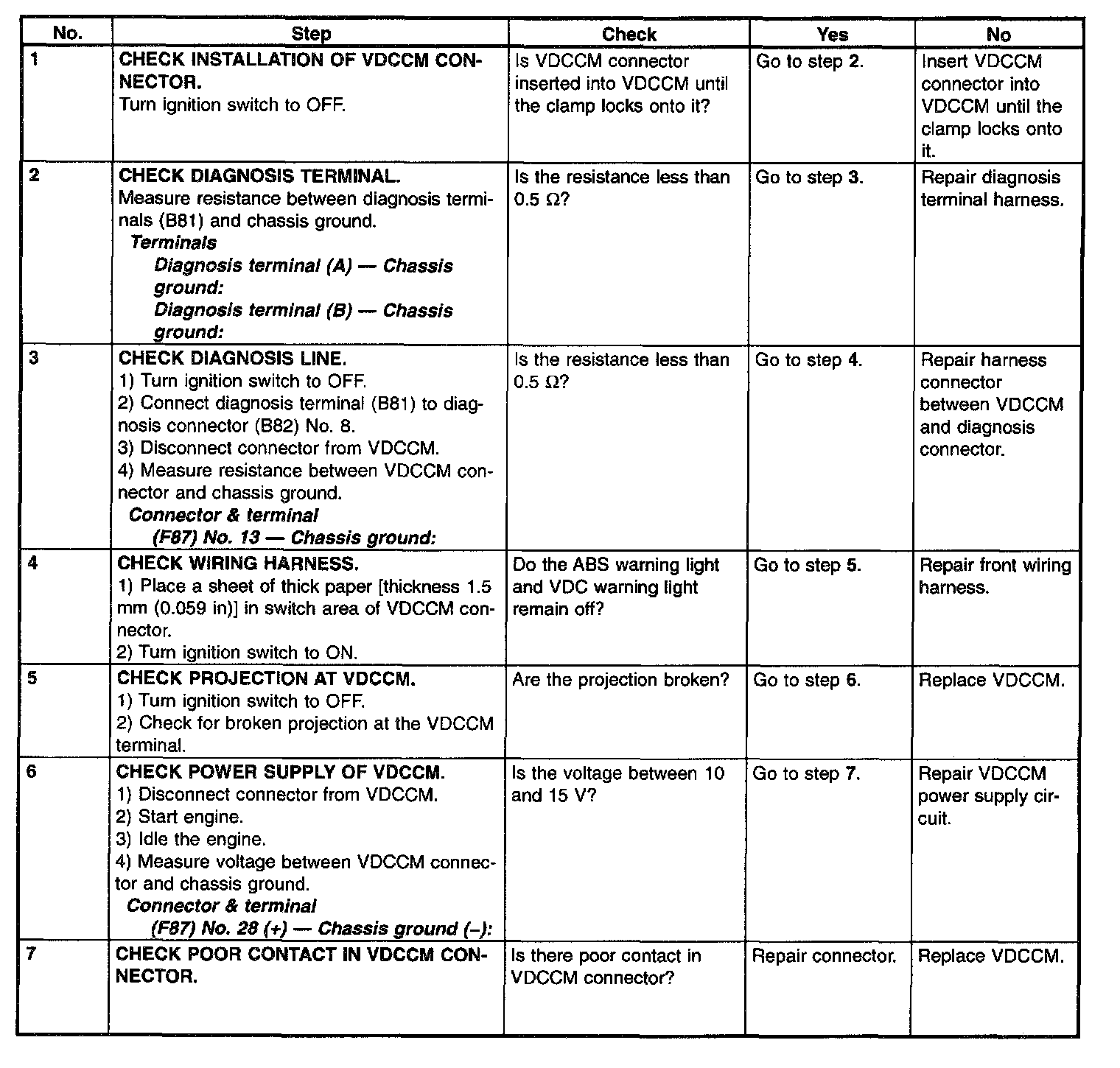

PROCEDURE
