Without Scan Tool
OPERATION1. WITHOUT SUBARU SELECT MONITOR

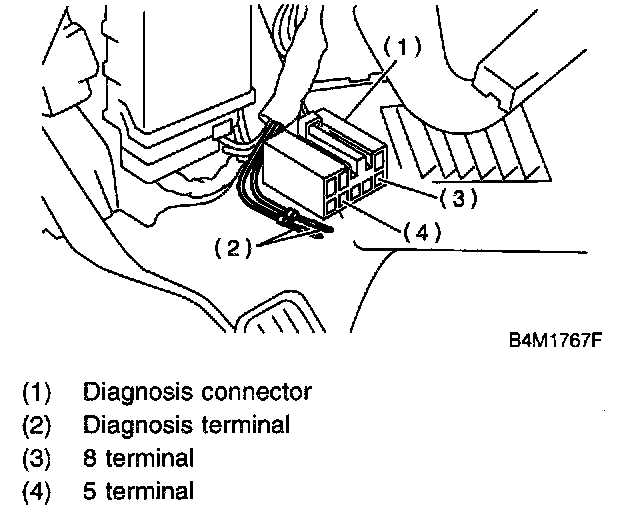

1. Take out diagnosis connector from side of driver's seat heater unit.
2. Turn ignition switch OFF.
3. Connect diagnosis connector terminal 8 to diagnosis terminal.
4. Turn ignition switch ON.

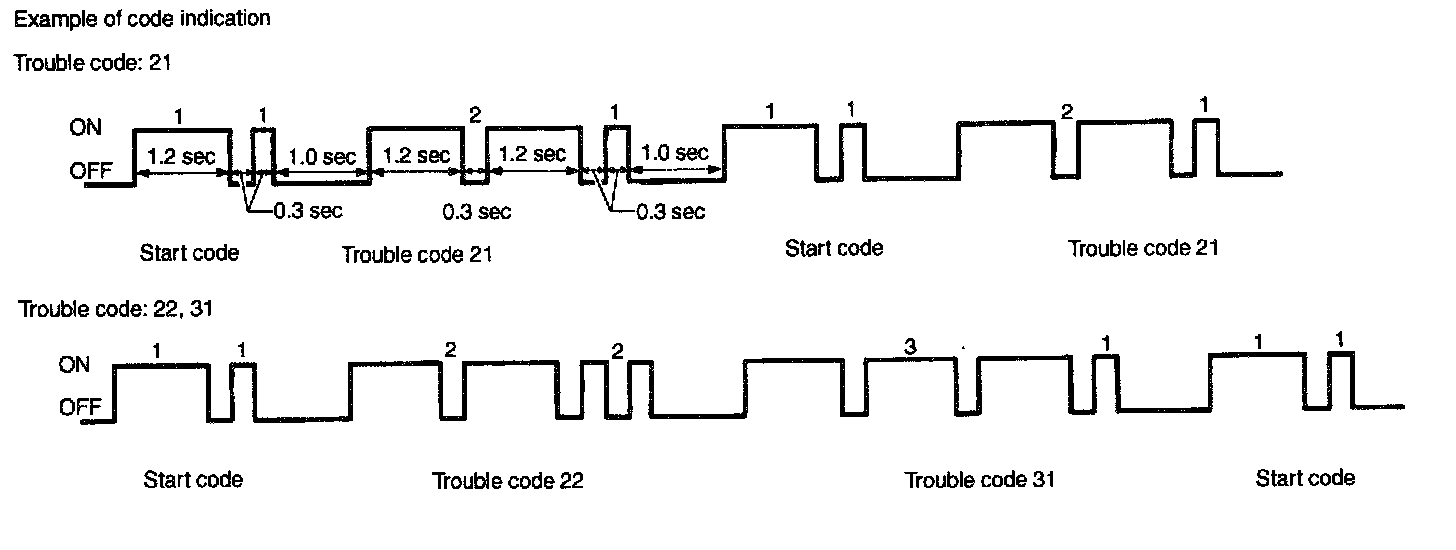

5. ABS warning light is set in the diagnostic mode and blinks to identify trouble code.
6. After the start code (11) is shown, the trouble codes will be shown in order of the last information first. These repeat for a maximum of 5 minutes.
NOTE:
- When there are no trouble codes in memory, only the start code (11) is shown.
- When on-board diagnosis of the VDC control module detects a problem, the information (up to a maximum of three) will be stored in the EEP ROM as a trouble code. When there are more than three, the most recent three will be stored. (Stored codes will stay in memory until they are cleared.)
2. WITH SUBARU SELECT MONITOR
Refer to SUBARU SELECT MONITOR for information about how to obtain and understand trouble codes.
INSPECTION MODE
OPERATION
Reproduce the condition under which the problem has occurred as much as possible. Drive the vehicle at least ten minutes.
NOTE: Make sure vehicle does not pull to one side during normal driving.
