With Subaru Select Monitor

CLEAR MEMORY MODE
1. On the Main Menus display screen, select (2 Each System Check) and press the key.
2. On the System Select Menus display screen, select (Brake System) and press the key.
3. Press the key after the engine type is displayed.
4. On the brake Control Diagnosis display screen, select (Clear Memory) and press the key.
5. When "Done" and "turn ignition switch OFF" are shown on the display screen, turn the Subaru Select Monitor and ignition switch to OFF.

NOTE: For detailed operation procedure, refer to the SUBARU SELECT MONITOR OPERATION MANUAL.

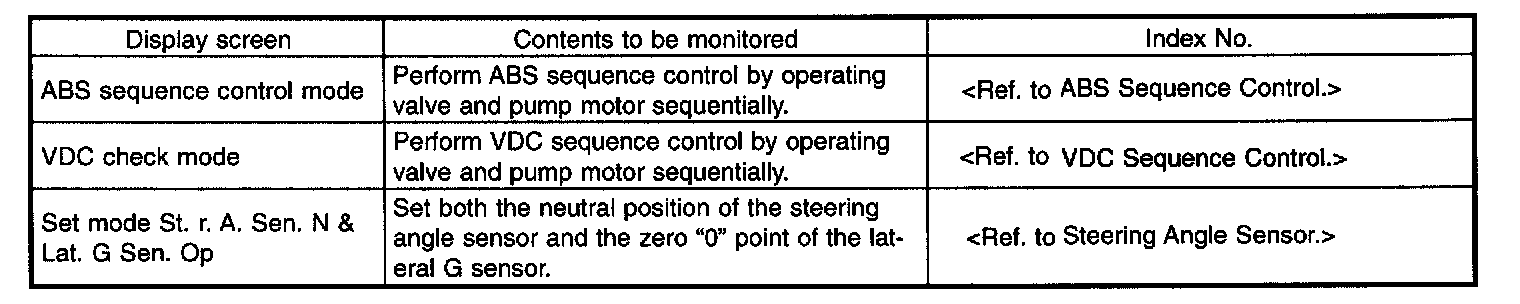

FUNCTION CHECK
