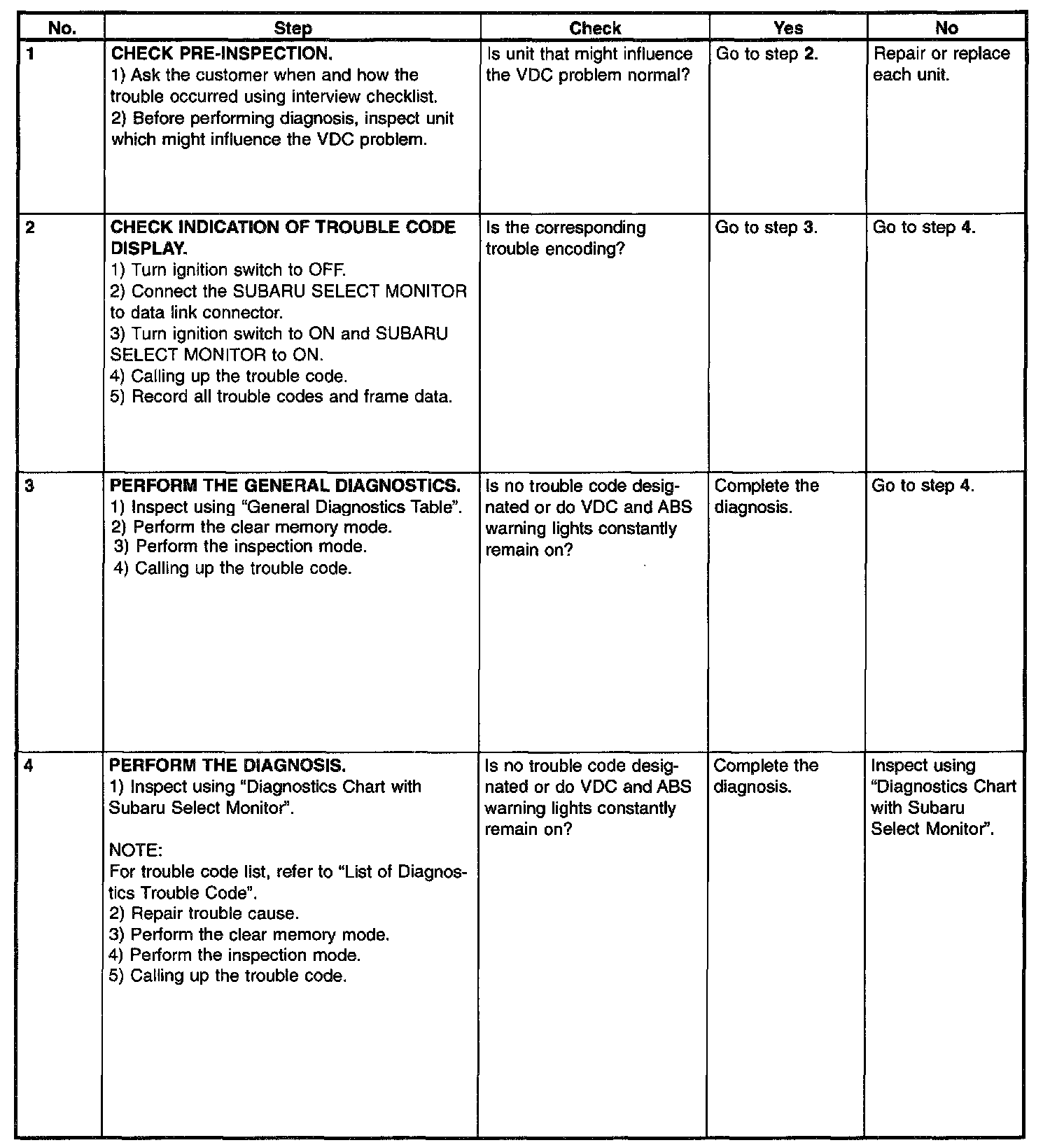

Diagnostic Chart With Select Monitor

WITH SUBARU SELECT MONITOR





NOTE:
- To check harness for broken wires or short circuits, shake it while holding it or the connector.
- Check list for interview.

CHECK LIST FOR INTERVIEW
CHECK
Check the following items about the vehicle's state.

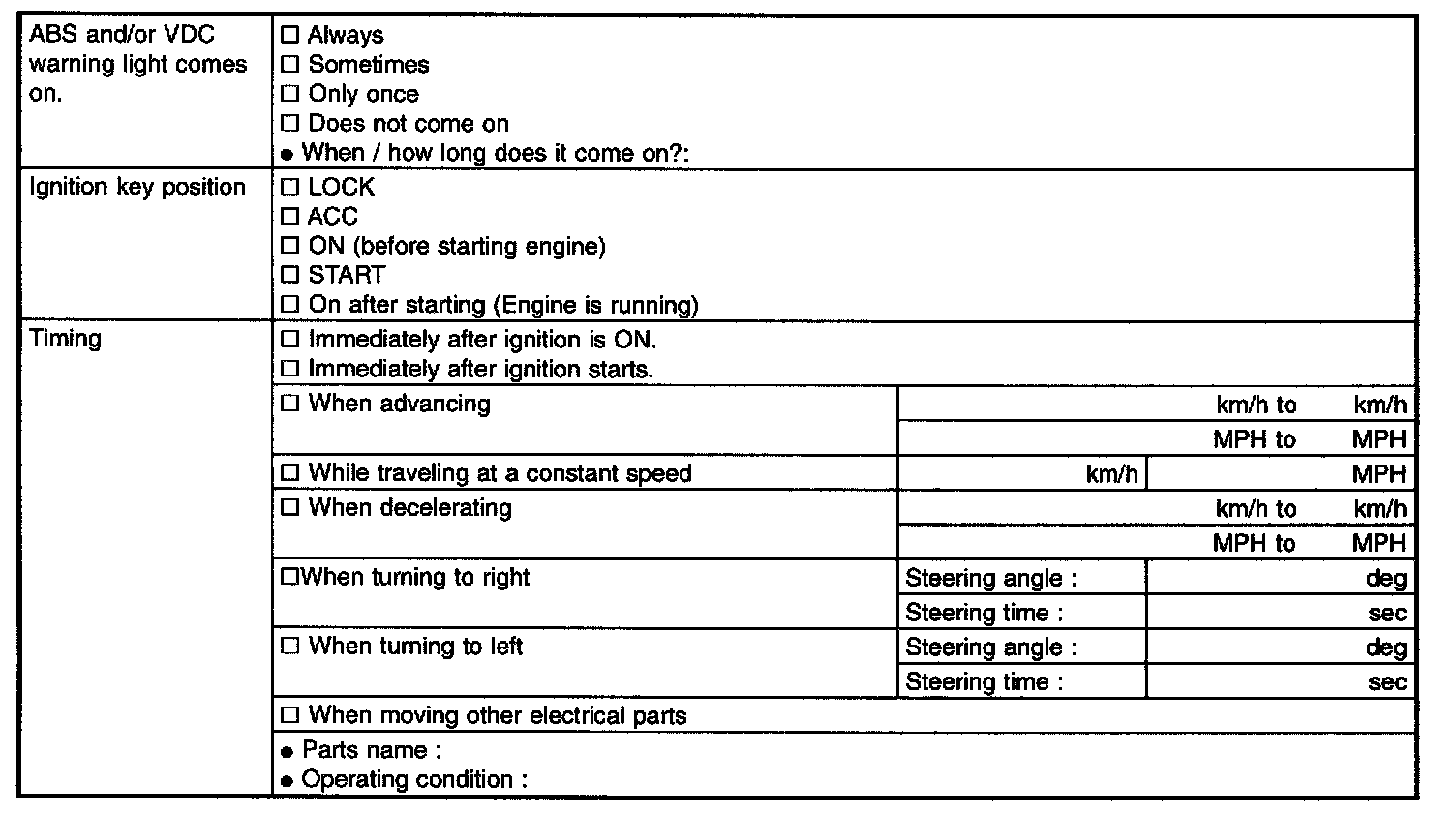

1. STATE OF ABS AND/OR VDC WARNING LIGHT

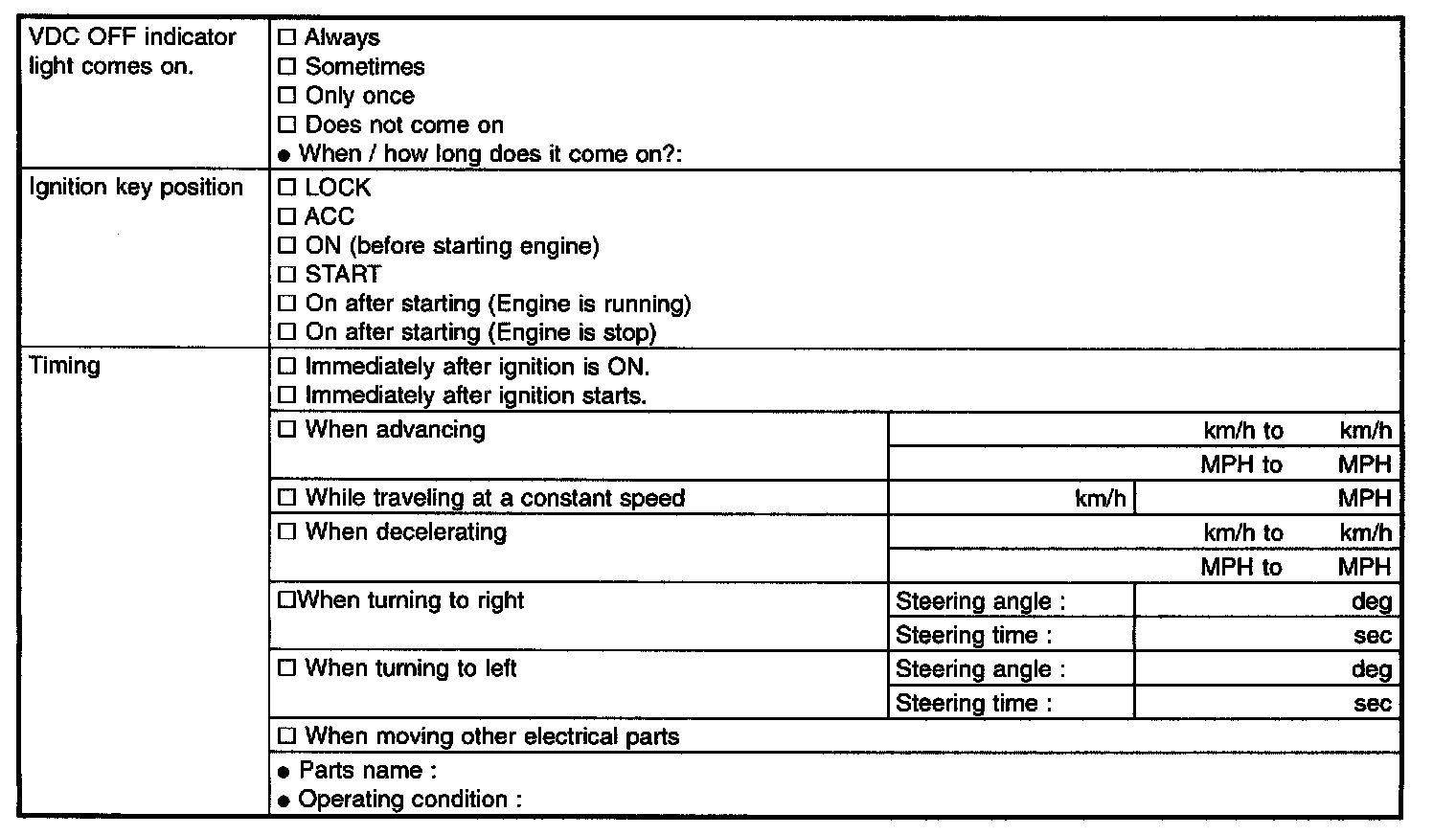

2. STATE OF VDC OFF INDICATOR LIGHT

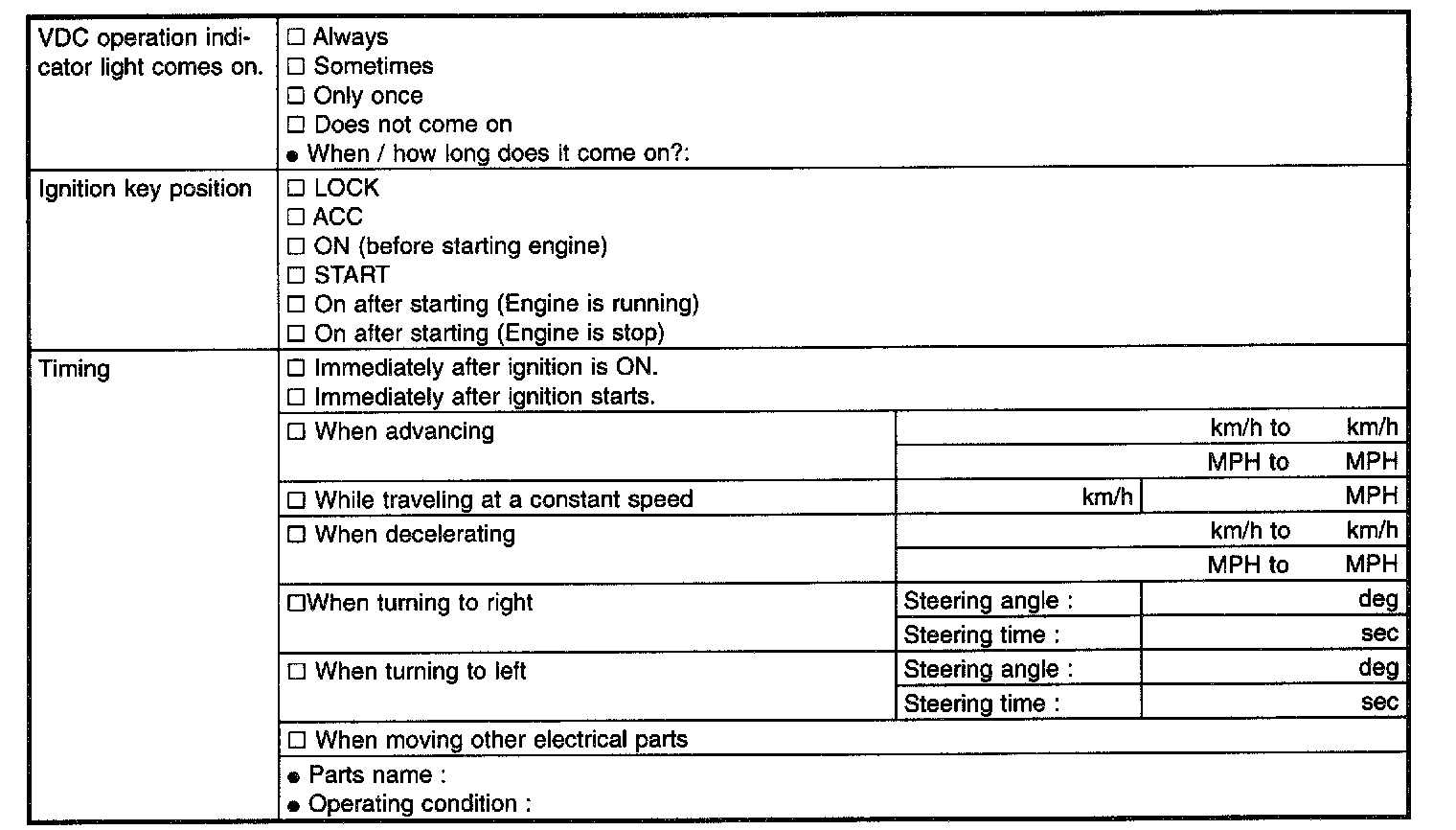

3. STATE OF VDC OPERATION INDICATOR LIGHT

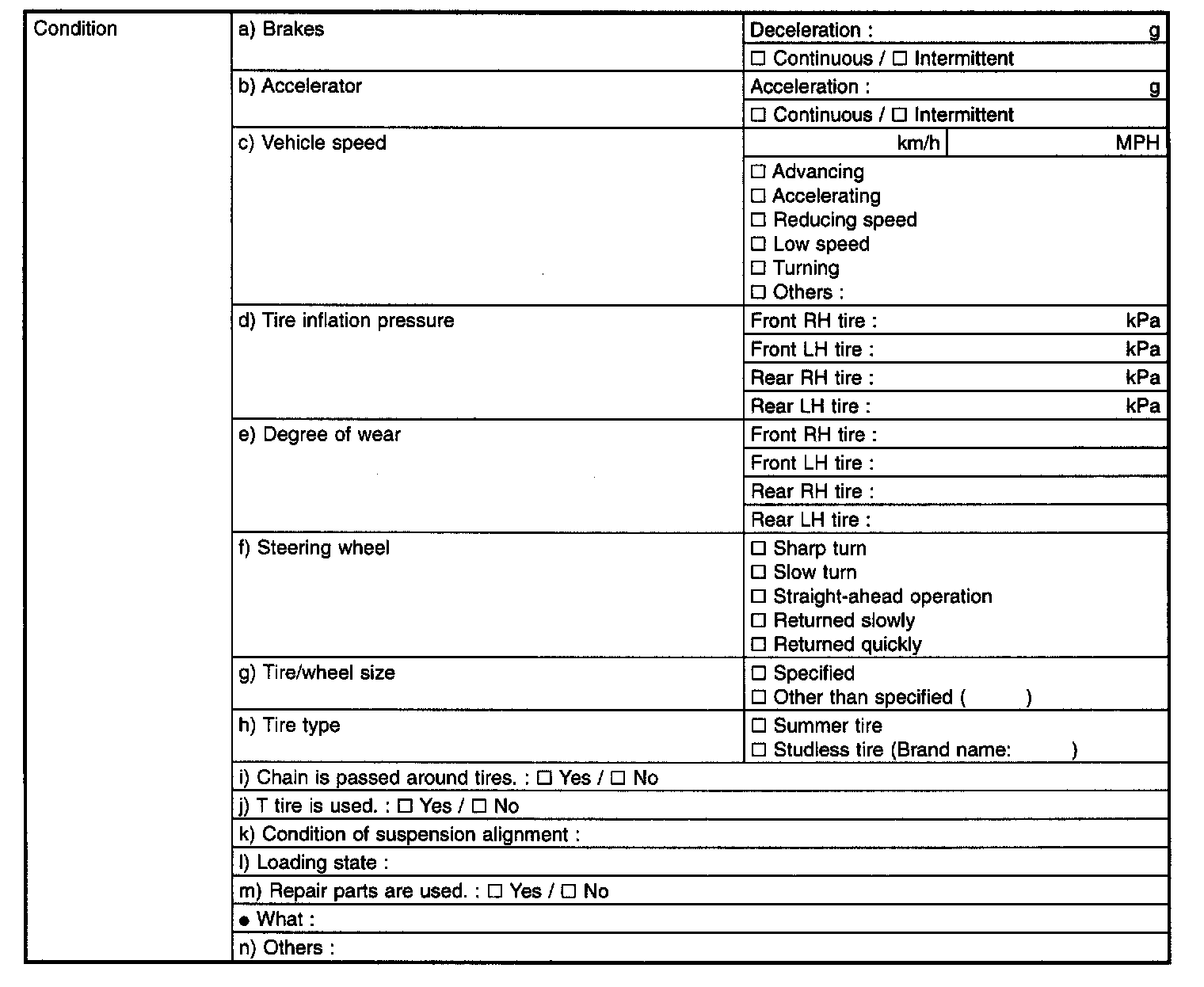

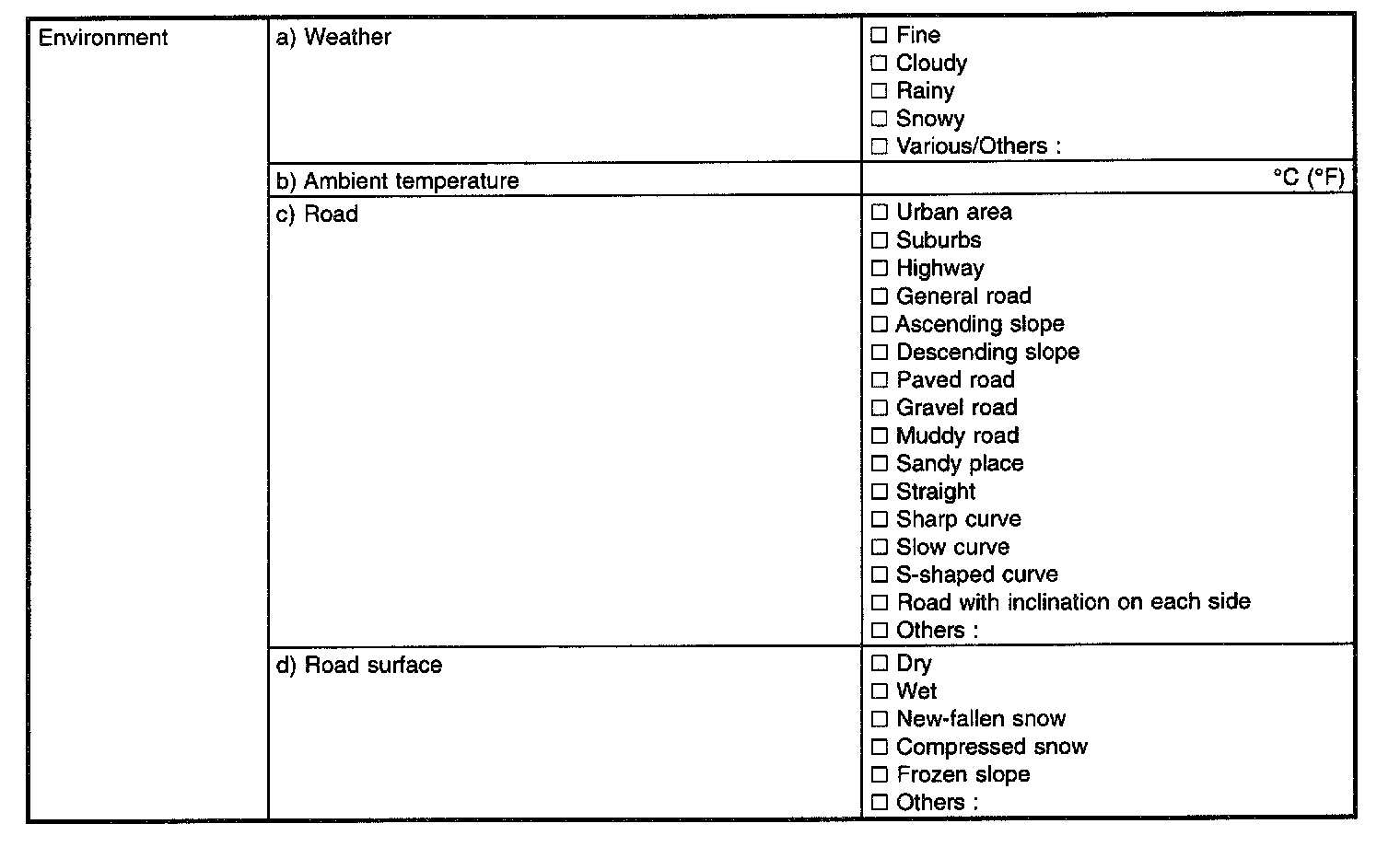

4. CONDITIONS UNDER WHICH TROUBLE OCCURS





Part 1 of 2





Part 2 of 2
