Diagnostic Chart For On-Board Diagnosis System

WITHOUT SUBARU SELECT MONITOR

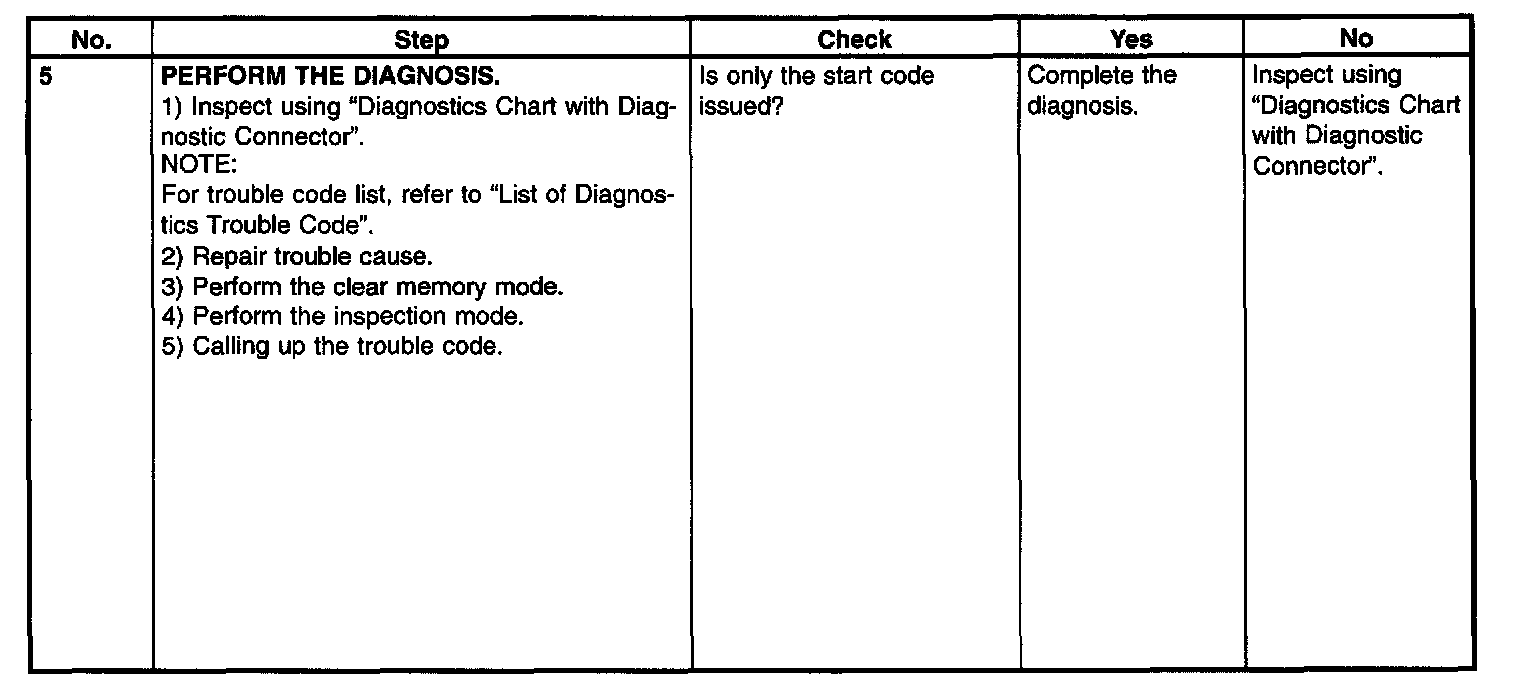

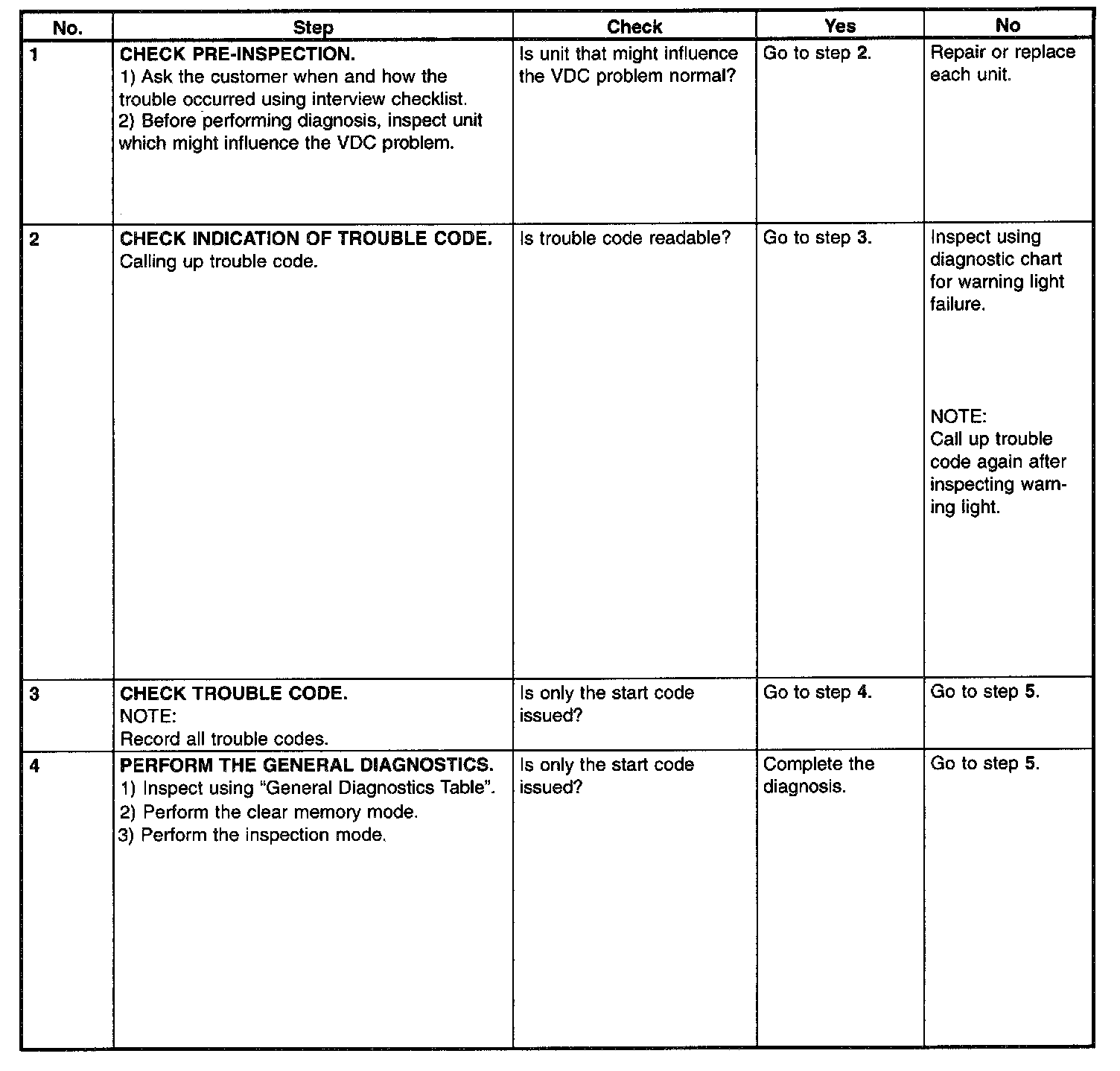

Part 1 of 2





Part 2 of 2

CAUTION: Remove foreign matter (dust, water, etc.) from the VDCCM connector during removal and installation.

NOTE:
- To check harness for broken wires or short circuits, shake it while holding it or the connector.
- When ABS and/or VDC warning light illuminates, read and record trouble code indicated by ABS warning light.

CHECK LIST FOR INTERVIEW
CHECK
Check the following items about the vehicle's state.





1. STATE OF ABS AND/OR VDC WARNING LIGHT





2. STATE OF VDC OFF INDICATOR LIGHT





3. STATE OF VDC OPERATION INDICATOR LIGHT

4. CONDITIONS UNDER WHICH TROUBLE OCCURS





Part 1 of 2





Part 2 of 2
