No Trouble Code Appears (ABS Warning Light Remains on)

NO TROUBLE CODE

DIAGNOSIS:
- ABS warning light circuit is shorted.
TROUBLE SYMPTOM:
- ABS warning light remains on.
- NO TROUBLE CODE displayed on the select monitor.

NOTE: When the ABS warning light is OFF and "NO TROUBLE CODE" is displayed on the select monitor, the system is in normal condition.

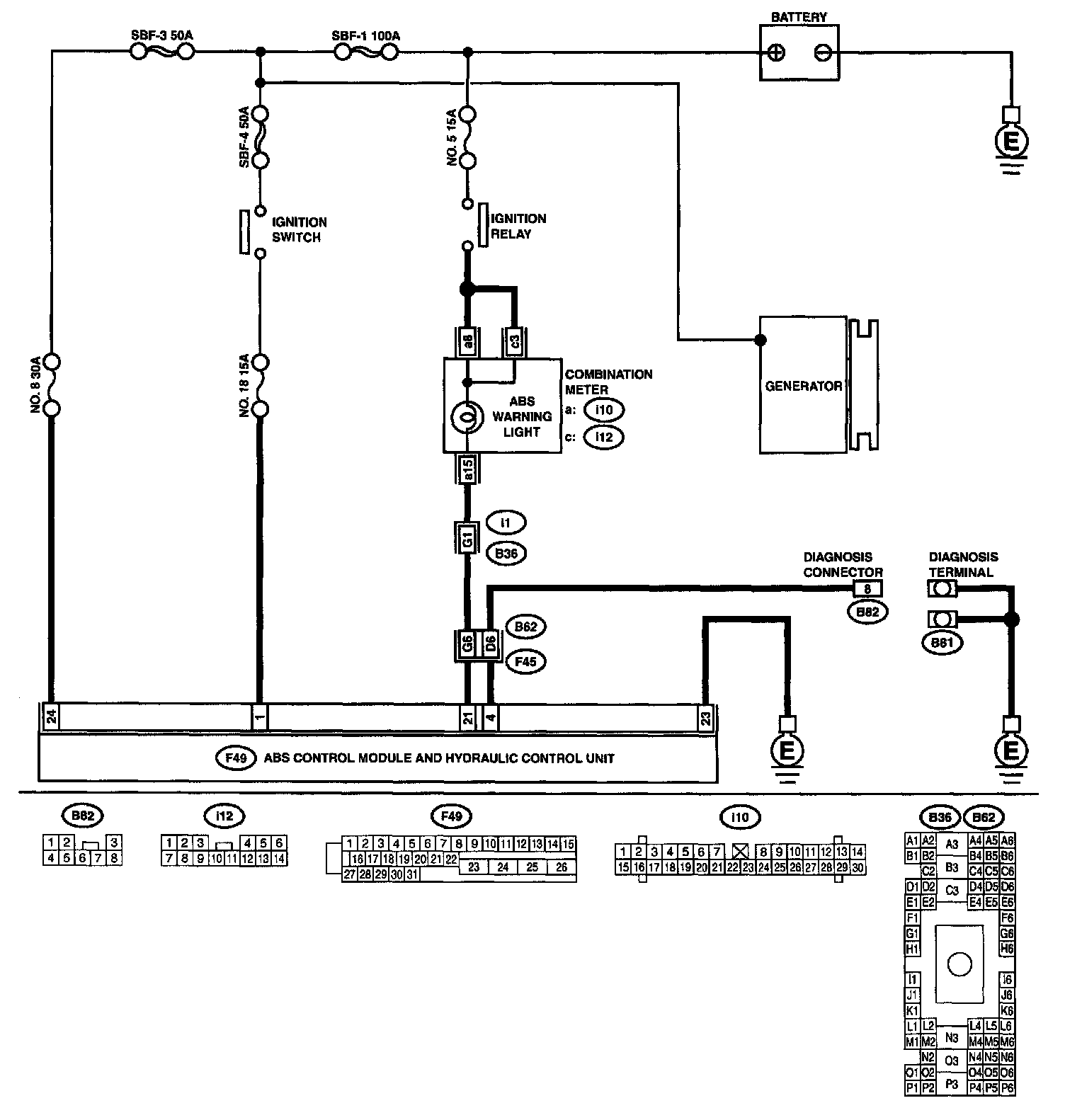

WIRING DIAGRAM

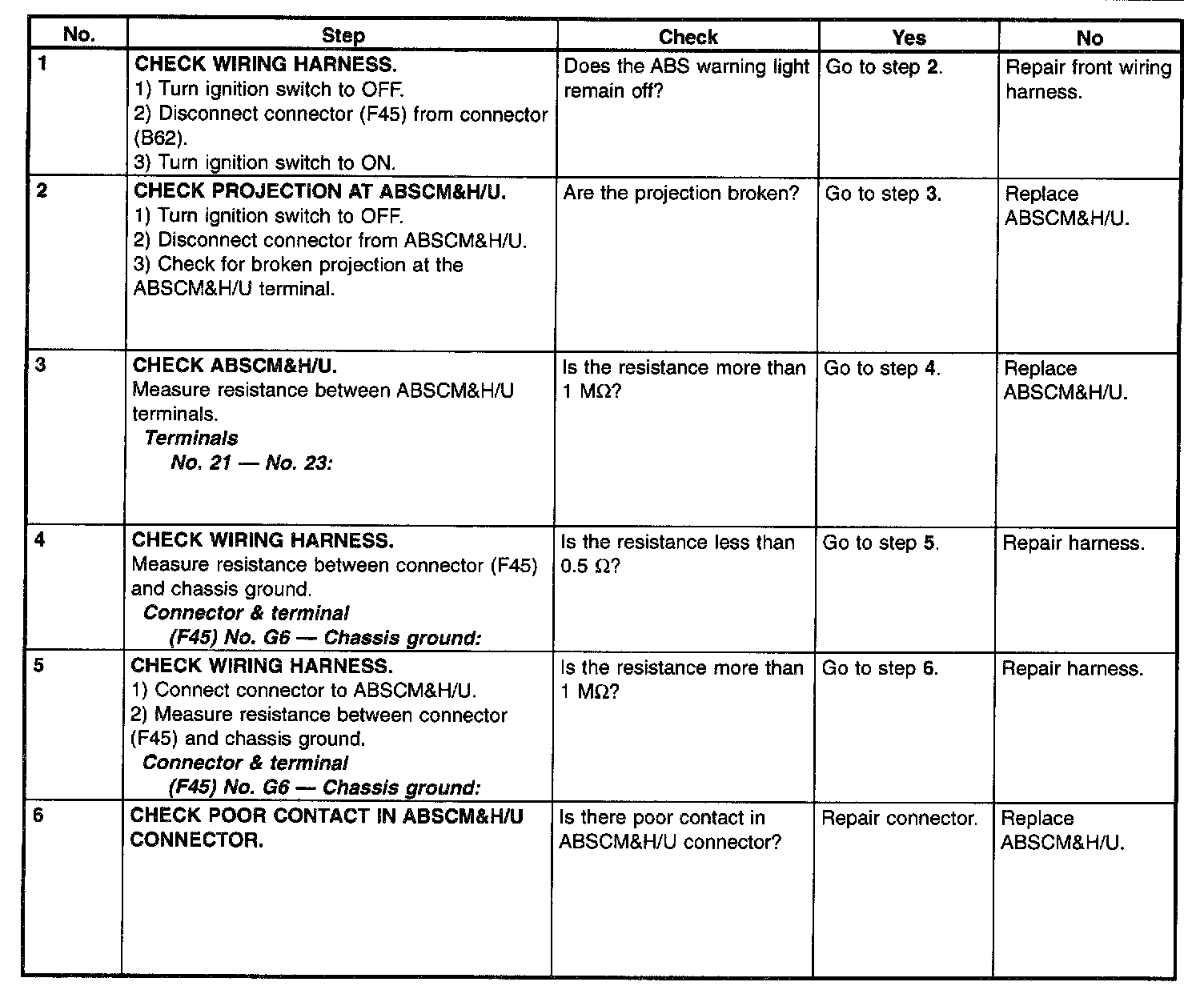

PROCEDURE
